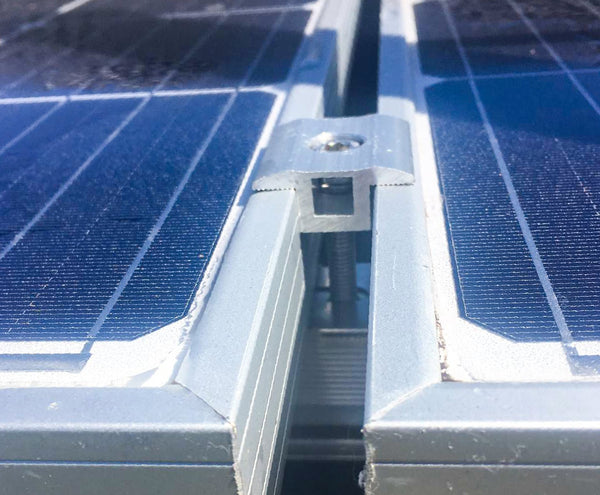

Solar Panel Inner clamp is for clamping in between panels to mount them to the rail, the clamp is designed to work with our mounting rail and will work with a framed solar panel that is 30mm thick.
Made from Aluminium and is supplied with a stainless steel M8 bolt.
Recommended torque setting for M8 Bolts: 12-15Nm
To bond the solar panel to the mounting rail for earthing purposes there is a grounding washer that can be fitted between the panel and the mounting rail.
Our mounting system has been tested and complies with AS/NZS1170
