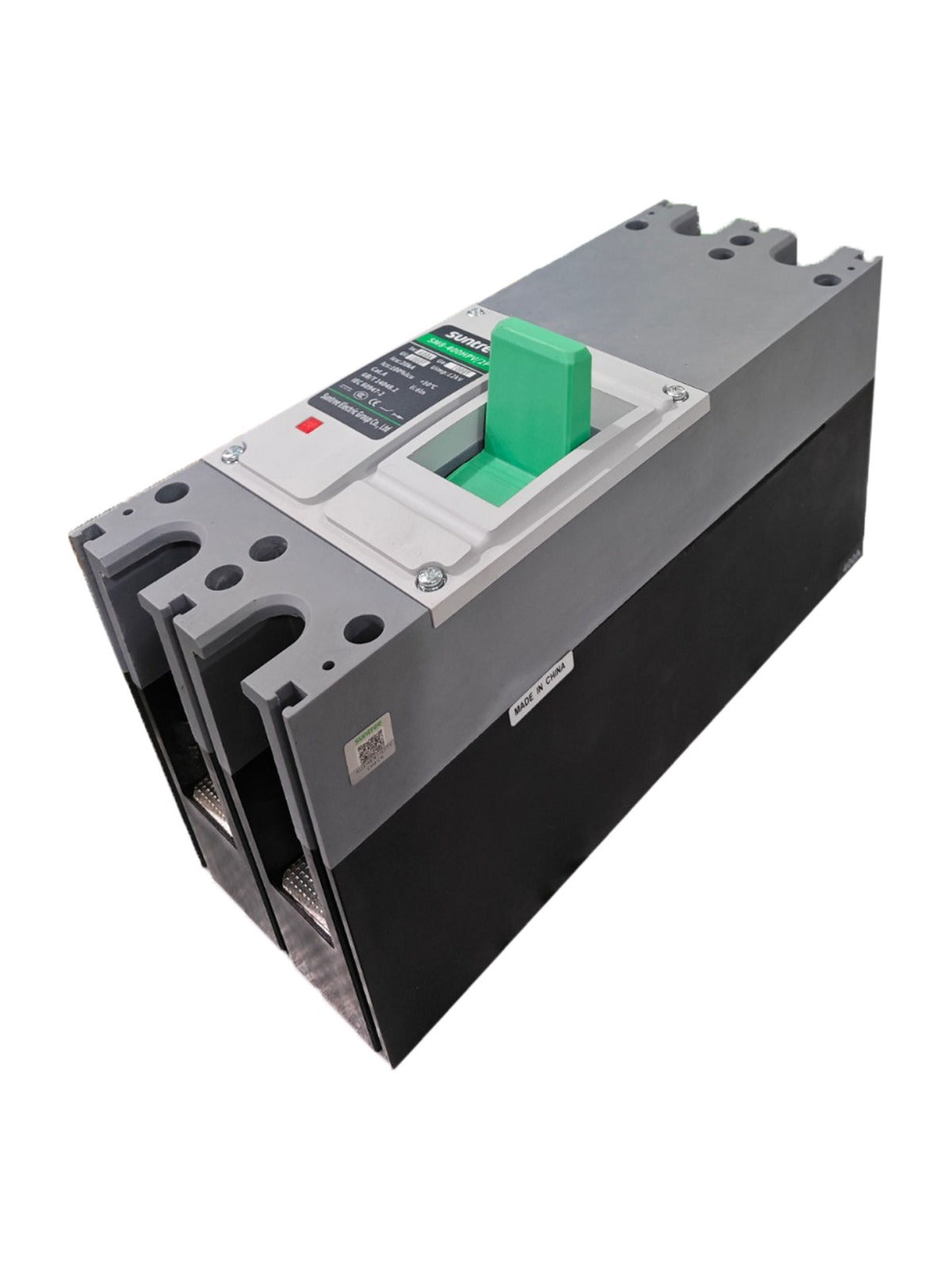

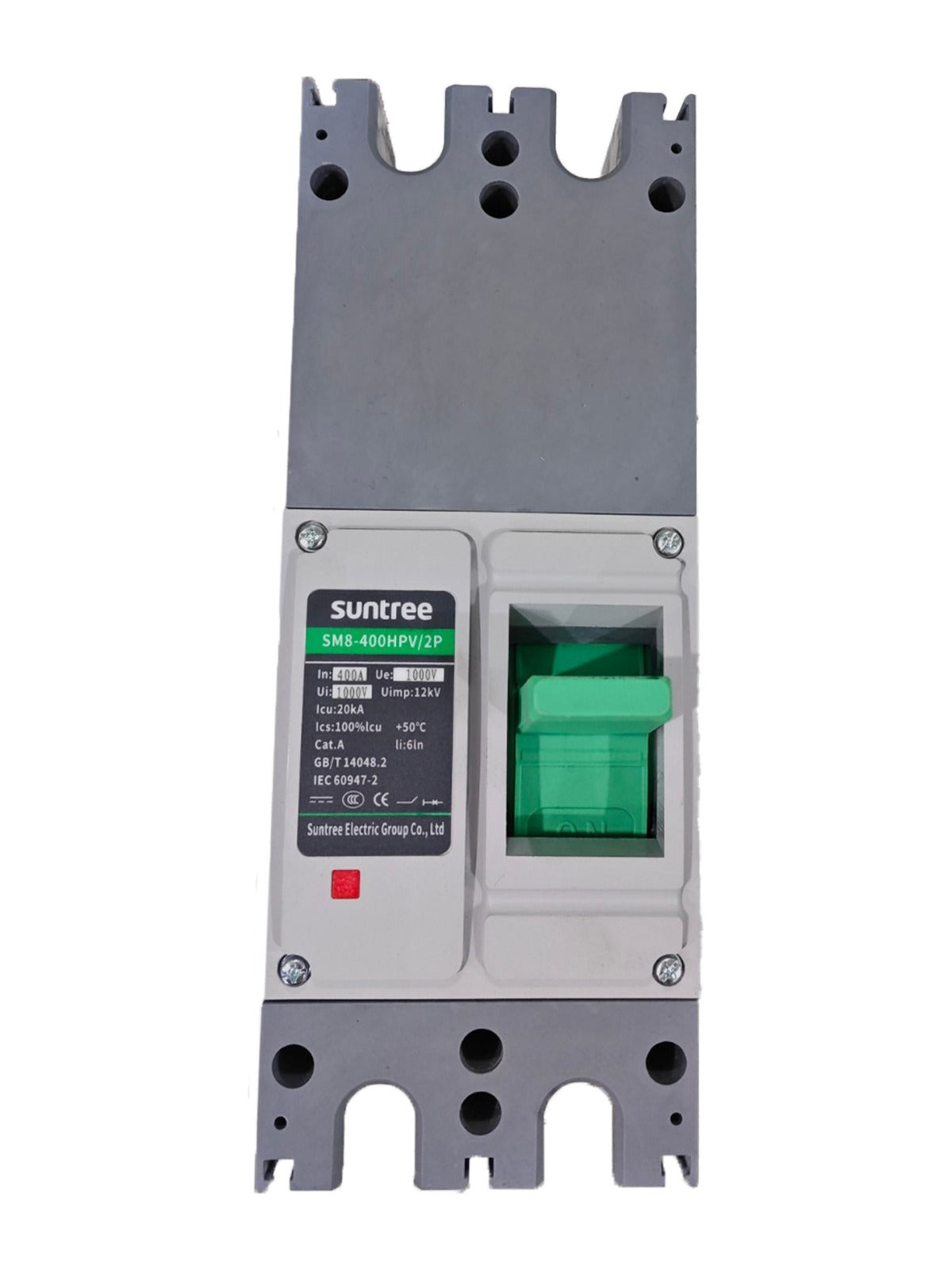

400A DC Circuit Breaker 2-Pole MCCB

This DC 2-pole MCCB Circuit Breaker is Rated for 400A Amps and is non-polarised

Specifications:

Rated Current: 400A
Rated Voltage: 1000VDC
Rated Insulation Voltage: 1500VDC
Rated Impulse Withstand Voltage: 12kV
Terminal Thread: M10
IP Rating: IP20
Tripping Characteristics: C Curve
Mechanical Life: 15,000
Rupturing/Breaking Capacity: 20kA
Release Type: Thermal Magnetic
Working Temperature: -40 to +70 Degrees Celsius
Relative Humidity: <95%
Dimensions: 275mmH x 90mmW x 182mmD
Test Standards: EN/IEC60947-1, EN/IEC60947-2
