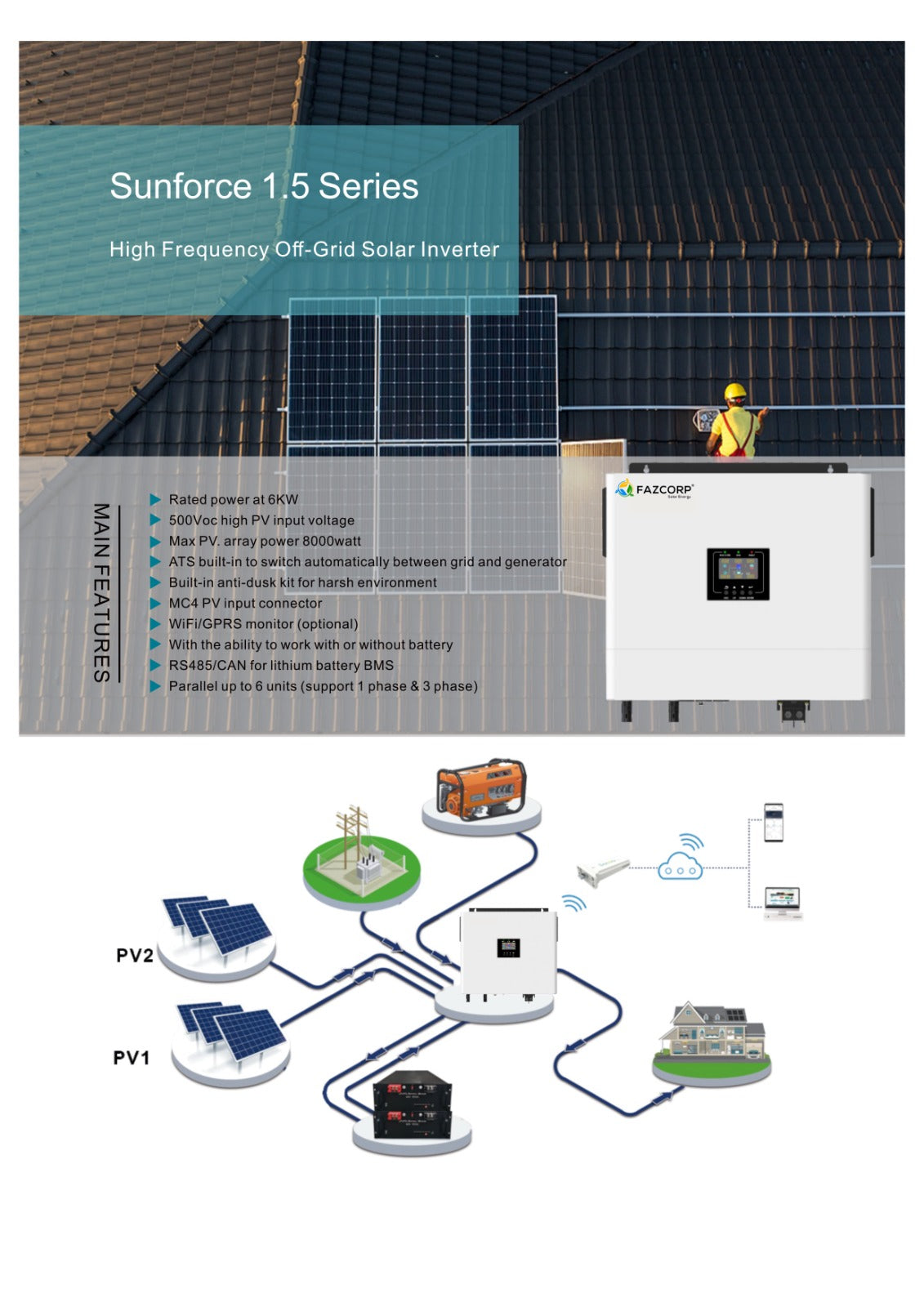

6KW LV Off-Grid Hybrid Solar Inverter 48V

This off-grid hybrid solar inverter charger features the combined functions of a 6KW pure sine wave inverter, MPPT solar charger controller and AC battery charger to offer an uninterruptible power supply in a convenient size. The high frequency switching and unity power factor for this unit makes it one of the most efficient units available.

Features:
Customisable charging parameters to work with any battery type.
Lithium Battery - The BMS software has been customised for a direct communication link with our Lithium Iron Phosphate batteries using RS485 communication.
Load power balancing function between solar and AC input source.
Can work without battery when used as a single unit.
Dual MPPT for up to 8000W of solar conversion.
Up to six units can be paralleled together on a single phase or three phase set up.
Grid and generator compatible as an option for back up if solar production is low.
Built in Automatic Transfer Switch to change between generator or grid supply
Wifi monitoring (optional extra)

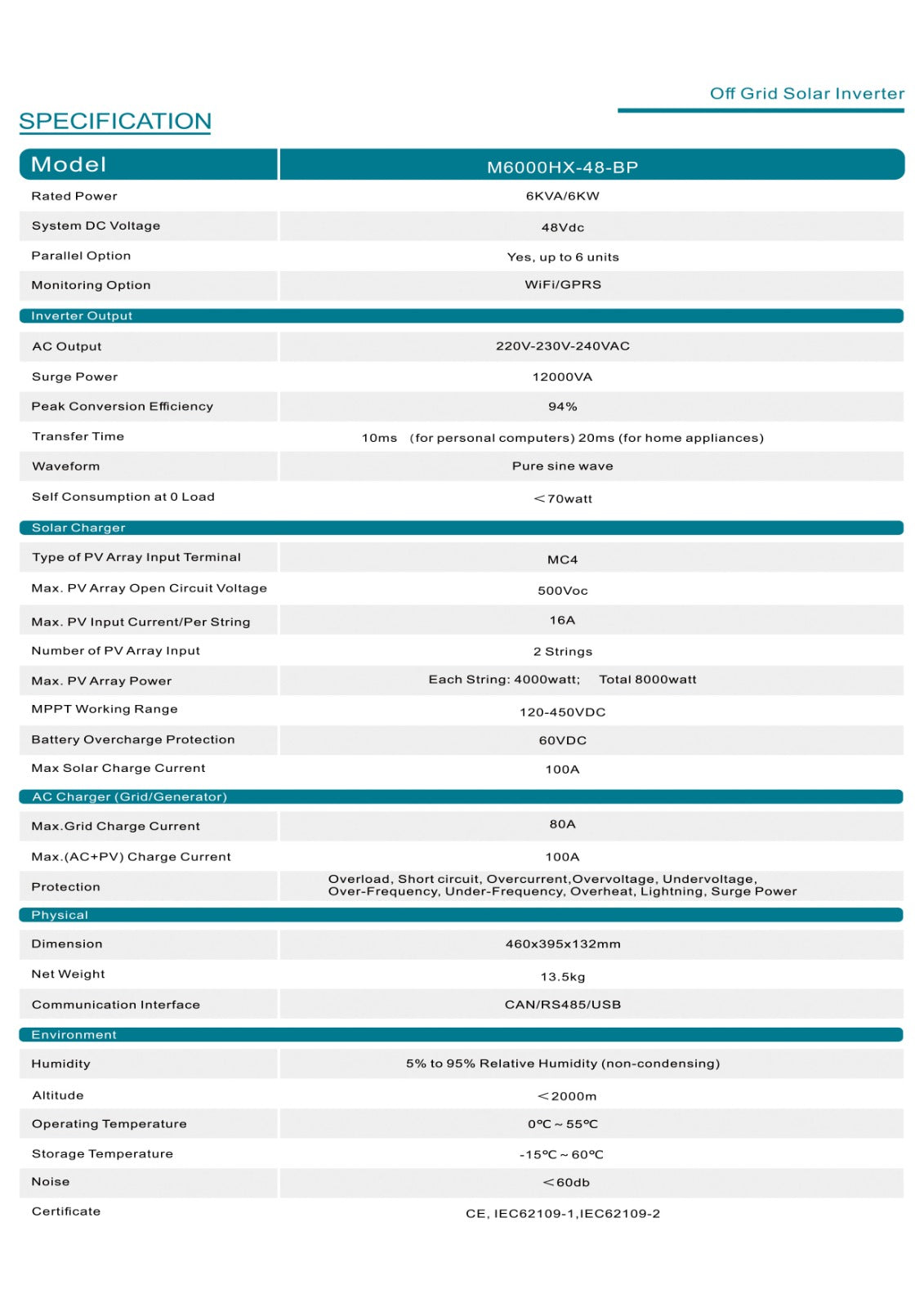

Solar Inverter Specifications:

Battery Voltage: 48VDC
Rated Power: 6KVA/6000W - Unity Power Factor
Surge Power: 12KVA for 5 seconds
Waveform: Pure sine wave 50Hz
AC Output Voltage: 230 VAC
Inverter Efficiency(Peak): 94%
No Load Power Consumption: <70W
Power Saving Mode Consumption: <15W
Transfer Time: 10ms-UPS; 20ms-APL

AC Input:
Voltage: 230VAC Pure Sine Wave
Voltage Range:
90~280 VAC - Appliance (default)
170~280 VAC - UPS
Frequency: 50 Hz

MPPT Solar Charger:
Maximum PV Array Open Circuit Voltage: 500VDC
MPPT Voltage Range: 120~450VDC
PV Input Power: 8000W (4000W per solar input)
Solar Conversion Efficiency: up to 98%
Max Solar Charge Current: 100A
Max Solar+AC Charge Current: 100A

Dimensions (mm): 295W*455H*130D
Weight: 12 kgs

Humidity: 5% to 95% RH(Non-condensing)
Operating Temperature: 0°C-55°C
Warranty: 2 years

Compliance: IEC62109-1, IEC62109-2
