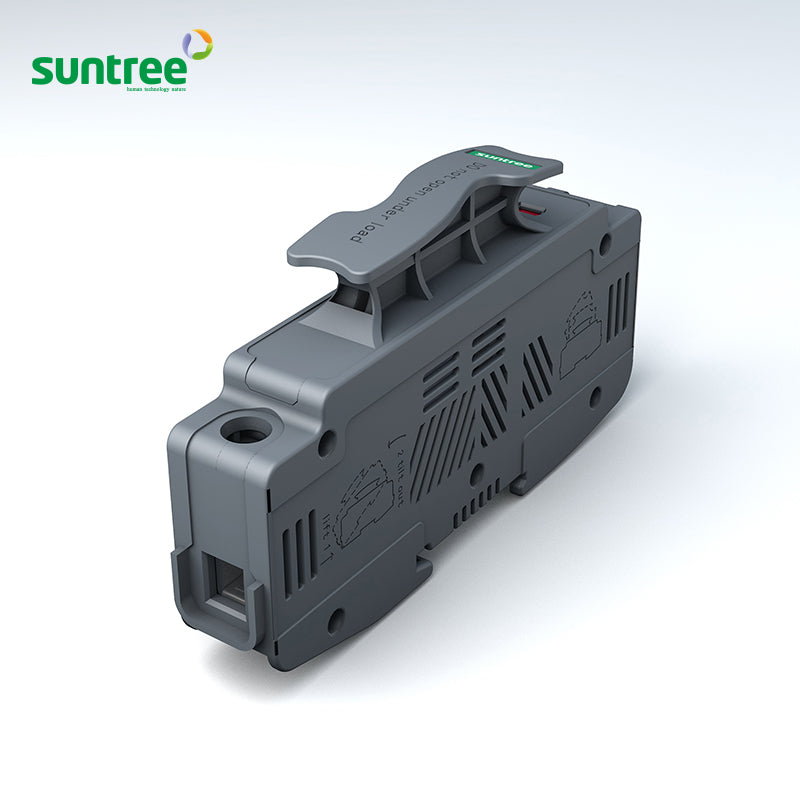

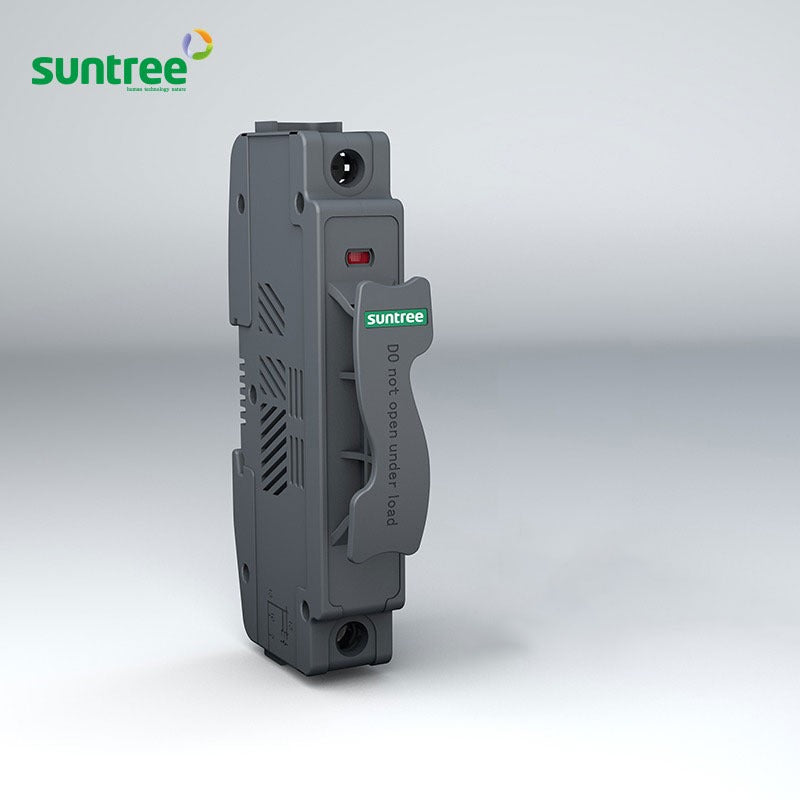

Solar DC Fuse Holder 1500VDC

Solar DC Fuse Holder 1500VDC

Regular price $13.95 NZD
Regular price Sale price $13.95 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
Default

This solar DC fuse holder is DIN rail mountable and is compatible with our 85mm 20A, 32A, 40A and 50A fuses(fuses sold separately to fuse holder).
The fuses provide overload and short-circuit protection to protect the solar array and are suitable for use on solar arrays with voltages under 1500VDC

Ventilation slots incorporated into the fuse holder allow for strong heat dissipation and is made with PA6 flame retardant materials.

Specifications:

Maximum Cable Size: 16mm2
Rated Operational Voltage: 1500VDC
Rated Insulation Voltage: 1600VDC
Rated Operational Current: 2-50A
Short Circuit Breaking Capacity: 8kV
Rated Power Dissipation: <12W
Rated Limit Short-circuit Current: 50kA
Protection Level: IP20
Use Category: PV-0

Tes Standards: IEC60947-1, IEC60947-3
