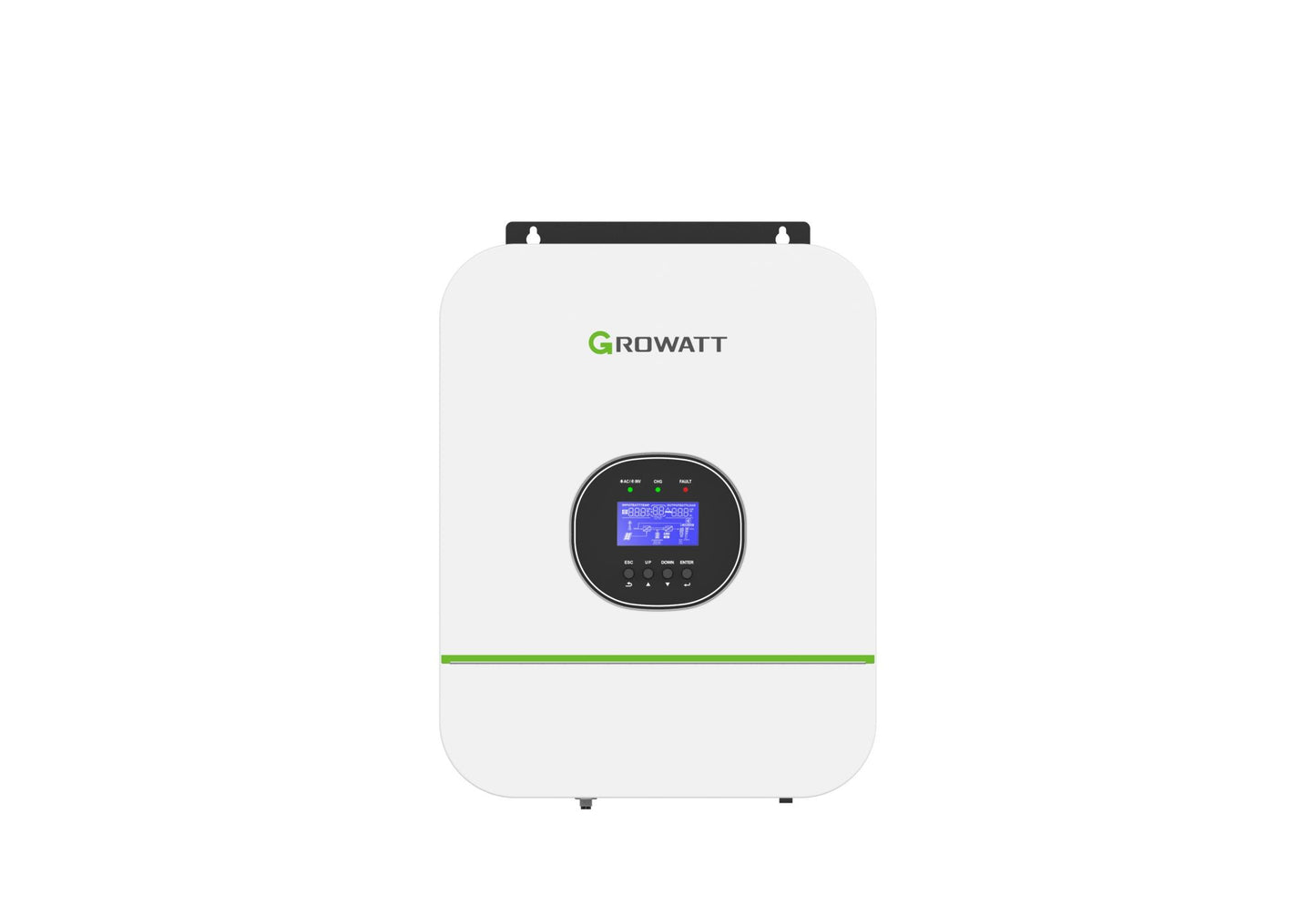

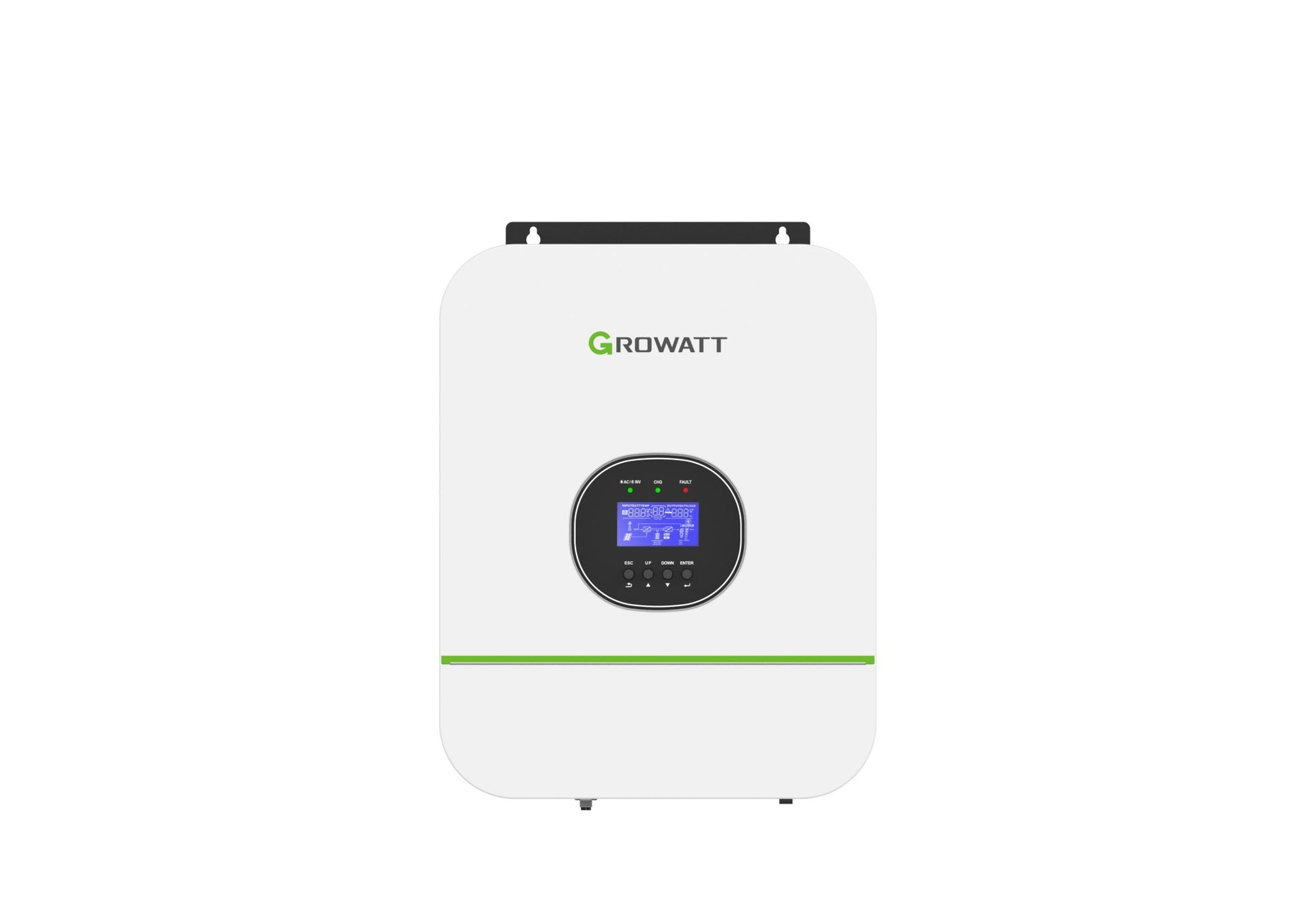

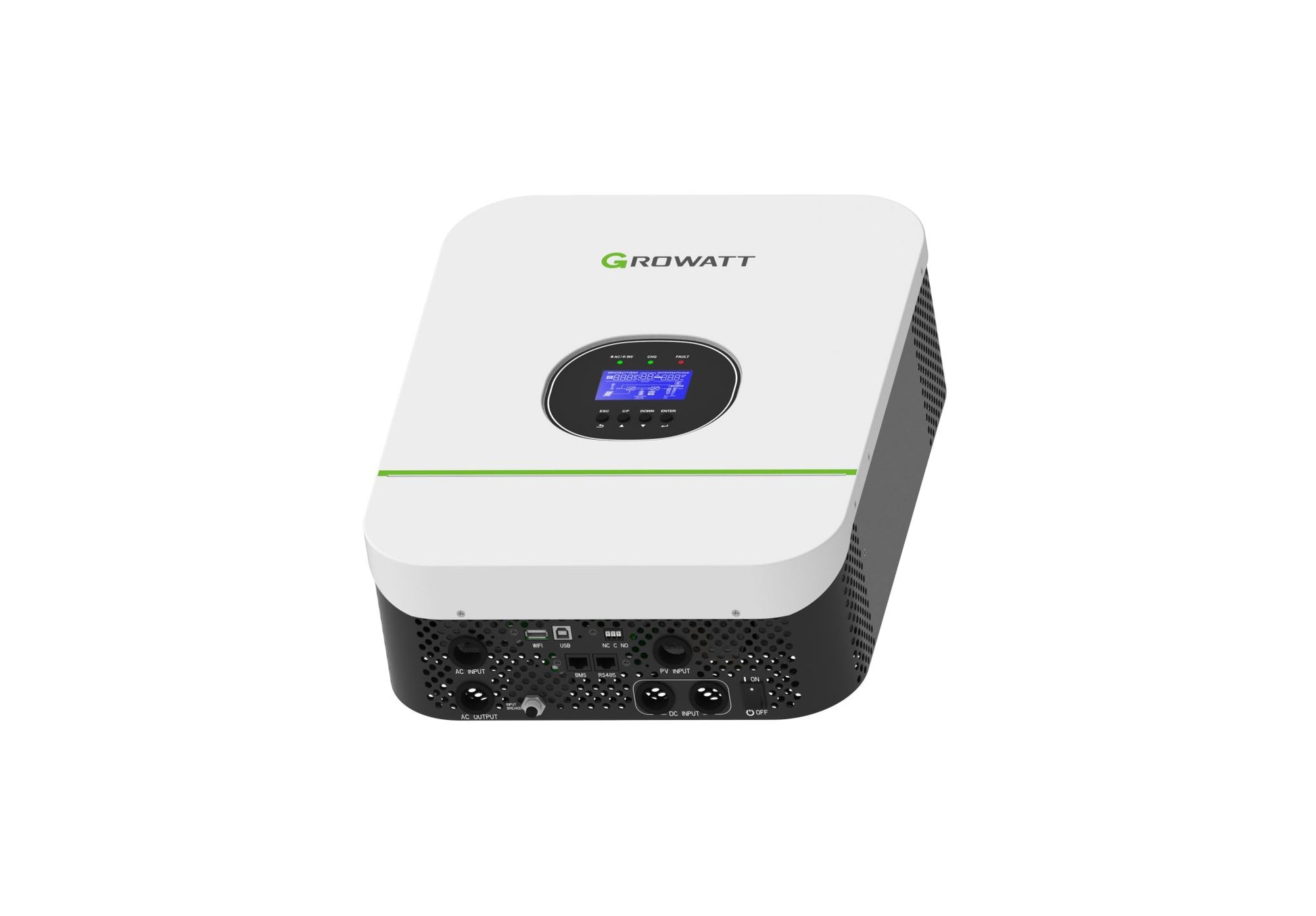

Growatt 3KW Off-Grid Hybrid Solar Inverter 24V SPF3000TL

This multiple-mode off-grid solar inverter/charger features the combined functions of a 3KW pure sine wave inverter, 50A MPPT solar charger and 30A AC battery charger to offer an uninterruptible power supply in a convenient size.

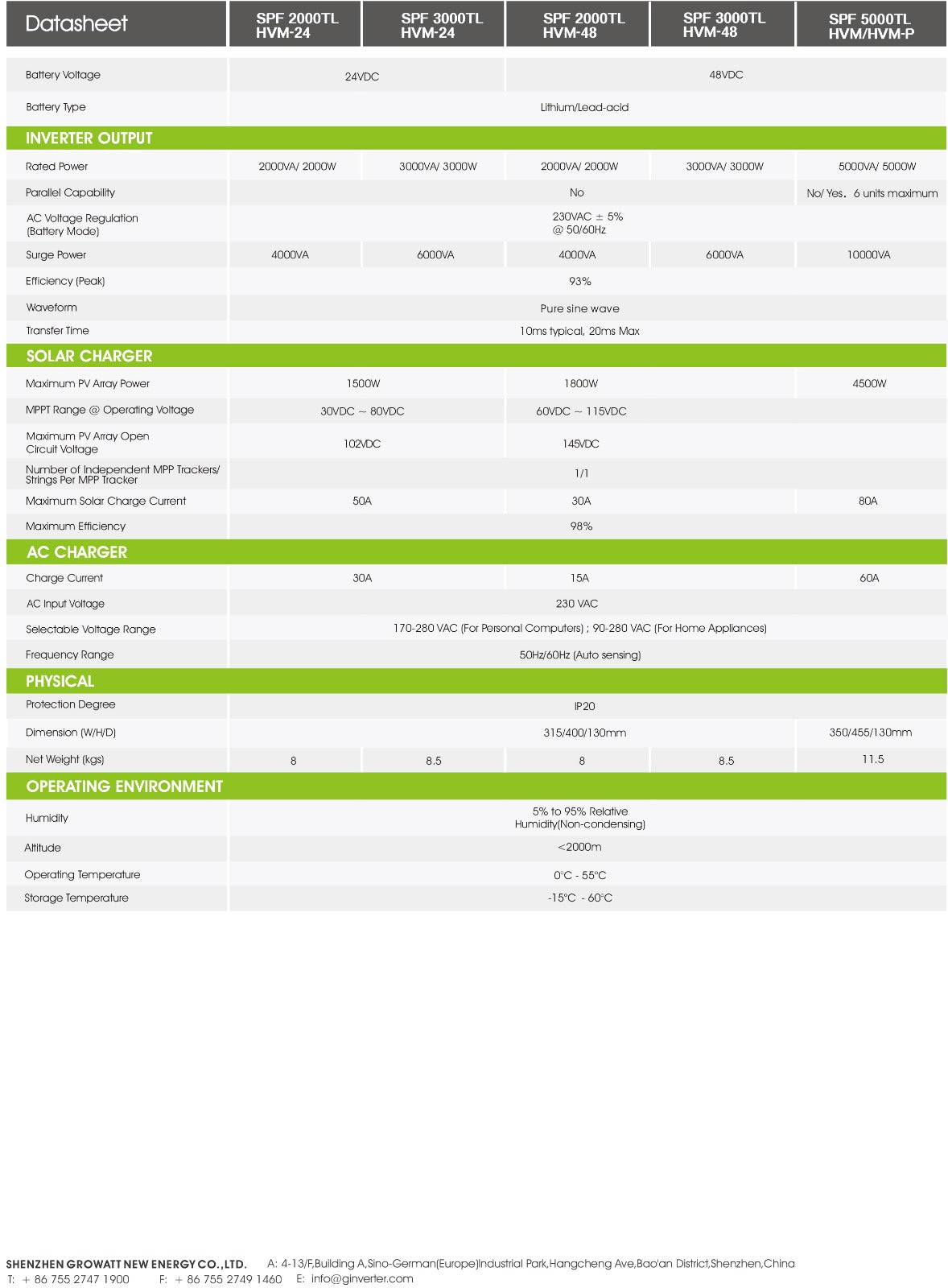

Solar Inverter Specifications:

Inverter:

• Battery Voltage: 24VDC
• Rated Power: 3KVA/3000W - Power Factor:1.0
• Surge Power: 6KVA for 5 seconds
• Waveform: Pure sine wave
• AC Voltage Regulation: 208VAC~240VAC
• Inverter Efficiency(Peak) :93%
• No Load Power Consumption: <30W
• Power Saving Mode Consumption: <10W
• Transfer Time: 10ms-UPS; 20ms-APL

AC Input:

• Voltage:230VAC
• Selectable Voltage Range:
• 90~280 VAC - Appliance (default)
• 170~280 VAC - UPS
• Frequency: 50 Hz

Battery:

• Normal voltage: 24 VDC
• Floating Charge Voltage: 27 VDC
• Bulk Charging Voltage: 28.2 VDC
• Overcharge Protection: 30.4 VDC
• Battery types: LiFeP04, SLA, AGM, Flooded, GEL

MPPT Solar Charger:

• Maximum PV Array Open Circuit Voltage: 102 VDC
• MPPT Voltage Range: 30-80 VDC
• PV Input Power: 1500 W
• Solar Conversion Efficiency: up to 98%
• Max Solar Charge Current: 50 A
• Max AC Charge Current: 30 A
• Max Solar/AC Charge Current: 80 A

Dimensions and Weight:
Solar Inverter Dimensions (mm): 265W*380H*115D
Weight: 12 kgs

Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: 0°C-55°C
Warranty: 2 Years

Compliance: IEC62109-1, IEC62109-2, AS/NZS5033, AS/NZS4059.
