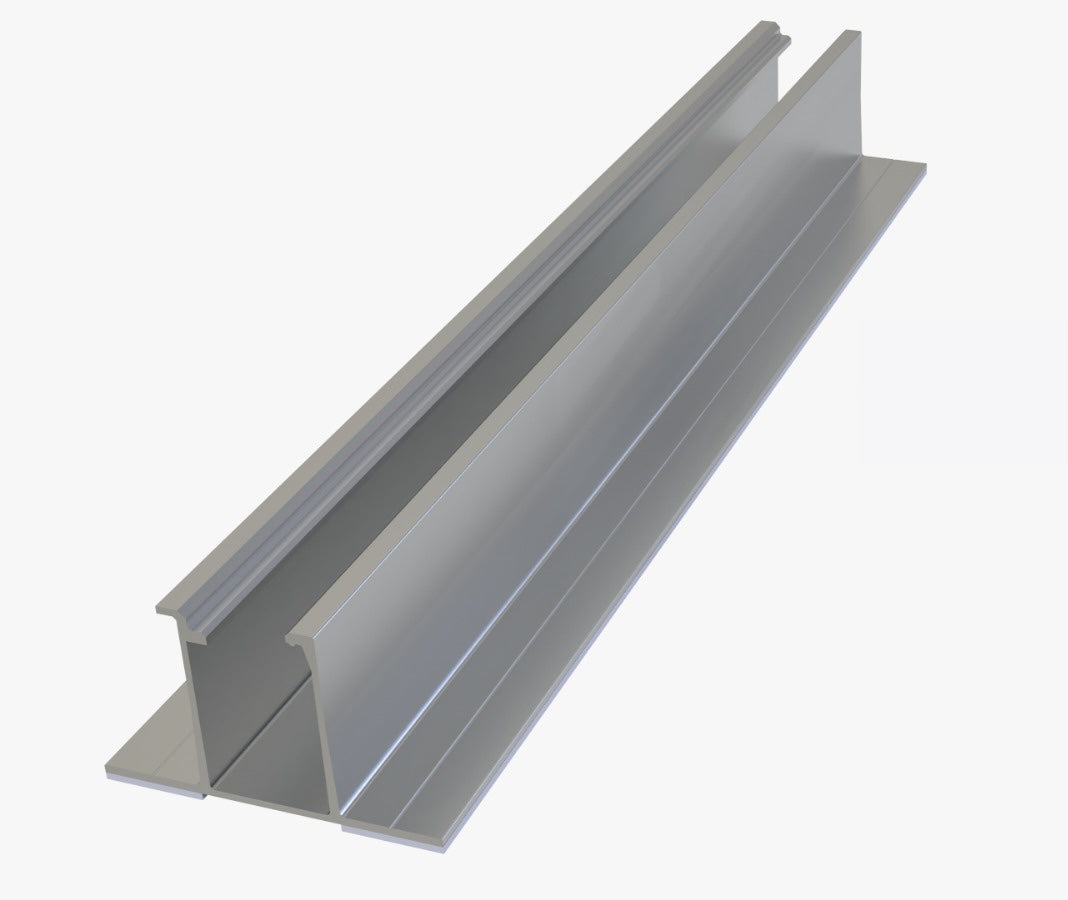

Solar Mounting Rail Direct Mount 4700mm

Our Direct Mount Solar Mounting Rail can be used for a range of solar panel mounting applications from mounting directly onto flat surfaces or it can be used to adapt our tilting brackets to roof profiles that have wider valleys compared to the standard corrugated roof profile.
These rails have been extruded with a high grade Aluminium, tempered for strength with an anodised finish for corrosion resistance

Specifications:
Length : 4700mm
Materials: Aluminium 6005Grade T5
Finish: Anodised Silver

When mounting onto surfaces with dissimilar materials that may react it is recommended to use our EPDM rubber washers to separate them

For earthing purposes a grounding washer can be installed between the panel and the mounting rail
