Solar Panel 130W Half Cut Mono-PERC

130W Mono-PERC solar panel features:

• A-Grade PERC Mono-Crystalline Cells to increase efficiency and energy yield
• 16BB Half-Cut cells for lower electrical resistance resulting in higher low light performance
• Tempered solar glass with low reflective properties for maximum photon absorption
• Low-Iron glass for high light transmission
• Corrosion resistant anodised aluminium frame

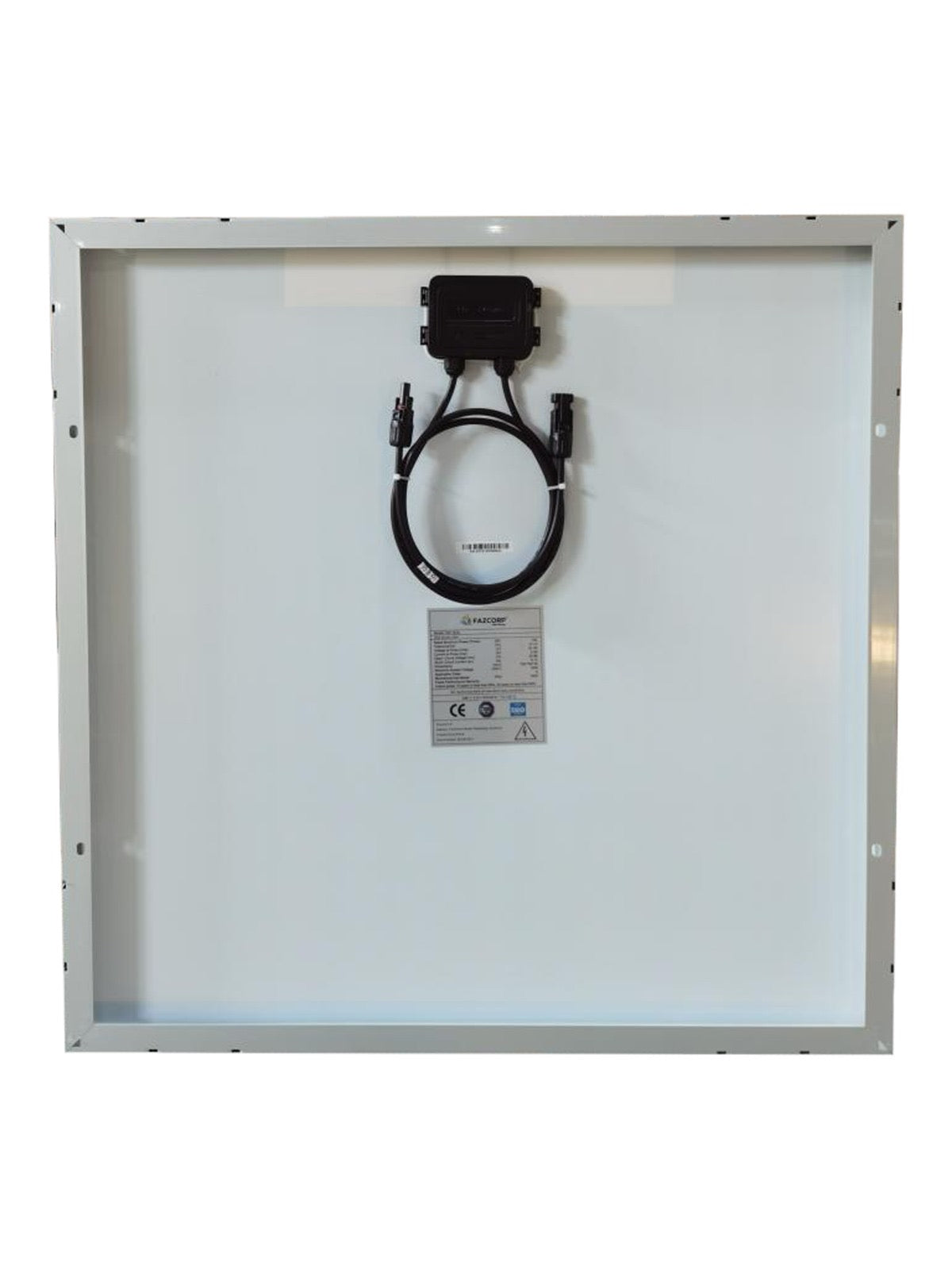

• IP68 Junction box with built-in bypass diodes

Specifications for 130W Mono-PERC solar panel:

• Maximum Power (Pmax) - 130W
• Maximum Power Voltage (Vmp) - 18.24V
• Maximum Power Current (Imp) - 7.13A
• Open Circuit Voltage (Voc) - 21.88V
• Short Circuit Current (Isc) - 8.43A
• Test Conditions: 25 degrees Celsius @ 1000W/m2
• Maximum System Voltage: 1000VDC
• Atmospheric Mass: 1.5
• Power Tolerance - 3%
• Cell Efficiency: 23.30%
• Module Efficiency STC - 20.83%
• Operating Temperature Range - -40C - +85C
• Number of Cells: 32
• Cell Type: 182mm x 91mm Mono-PERC
• Cell Brand: ZH Solar
• Mechanical Load: 5400Pa
• Wind Pressure: 2400Pa
• Dimensions : 800mm x 780mm x 35mm
• Weight: 6kgs

Warranty: 10 Years
Output Power Performance: 25 years at no less than 80%
Standards: IEC61215-1, IEC61215-2, IEC61730-1 and IEC61730-2
