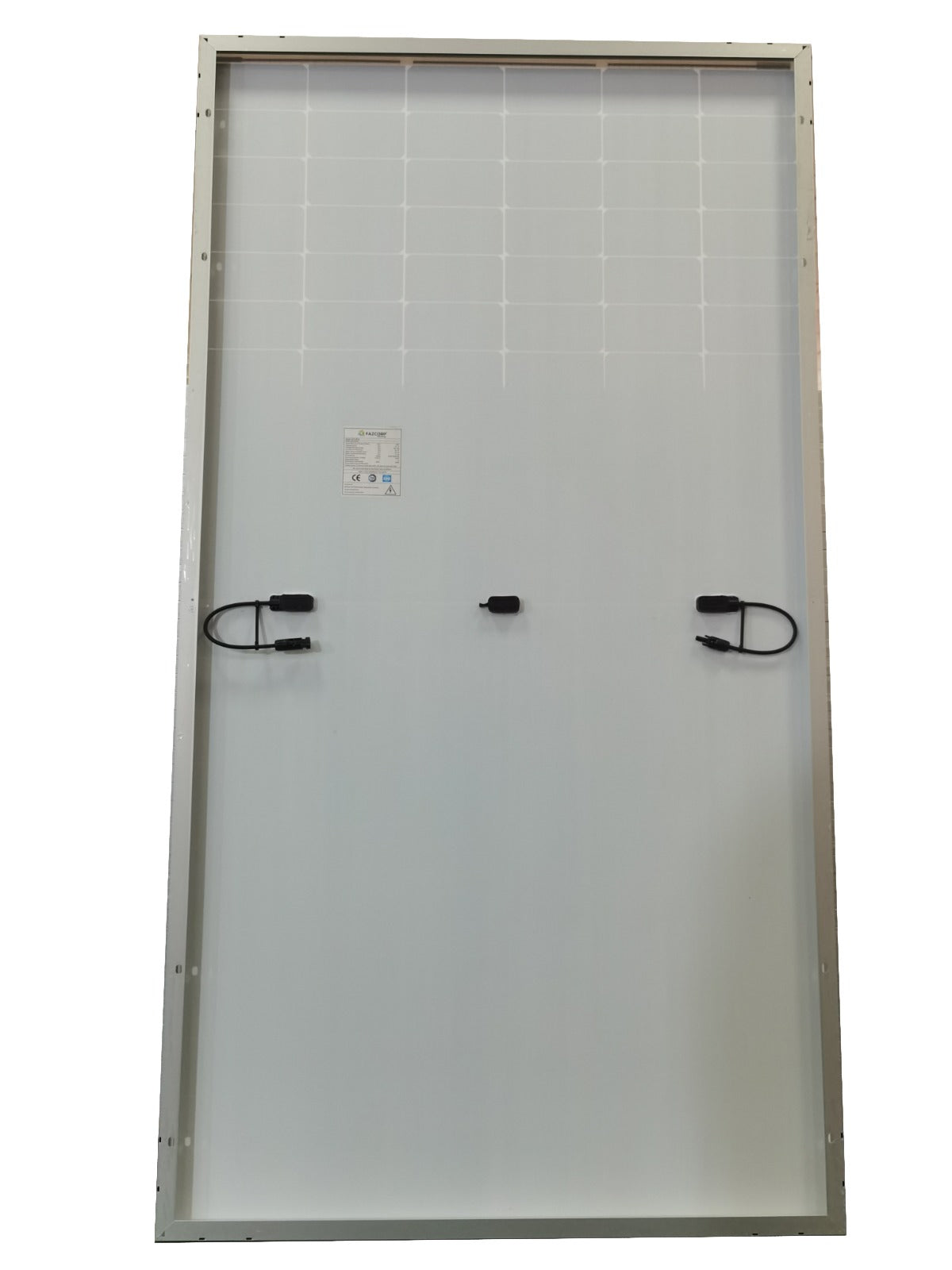

Solar Panel 540W Half Cut Mono-PERC

540W Mono-PERC solar panel features:

• A-Grade PERC Mono-Crystalline Cells to increase efficiency and energy yield
• 16BB Half-Cut cells for lower electrical resistance resulting in higher low light performance
• Tempered solar glass with low reflective properties for maximum photon absorption
• Low-Iron glass for high light transmission
• Corrosion resistant anodised aluminium frame
• IP68 Junction box with built-in bypass diodes

Specifications for 540W Mono-PERC solar panel:

• Maximum Power (Pmax) - 540W
• Maximum Power Voltage (Vmp) - 38.35V
• Maximum Power Current (Imp) - 14.09A
• Open Circuit Voltage (Voc) - 43.54V
• Short Circuit Current (Isc) - 15.12A
• Test Conditions: 25 degrees Celsius @ 1000W/m2
• Maximum System Voltage: 1500VDC
• Atmospheric Mass: 1.5
• Power Tolerance - 3%
• Cell Efficiency: 23.30%
• Module Efficiency STC - 22.74%
• Operating Temperature Range - -40C - +85C
• Number of Cells: 132
• Cell Type: 182mm x 91mm Mono-PERC
• Cell Brand: ZH Solar
• Mechanical Load: 5400Pa
• Wind Pressure: 2400Pa
• Dimensions : 2094mm x 1134mm x 40mm
• Weight: 26kgs

Warranty: 10 Years
Output Power Performance: 25 years at no less than 80%
Standards: IEC61215-1, IEC61215-2, IEC61730-1 and IEC61730-2
Warranty: 10 Years

Compliance: TUV Certification IEC61215-1,IEC61215-2, IEC61730-1 and IEC61730-2 as per AS/NZS5033
Application Class: Class A
Fire Rating: Class C
