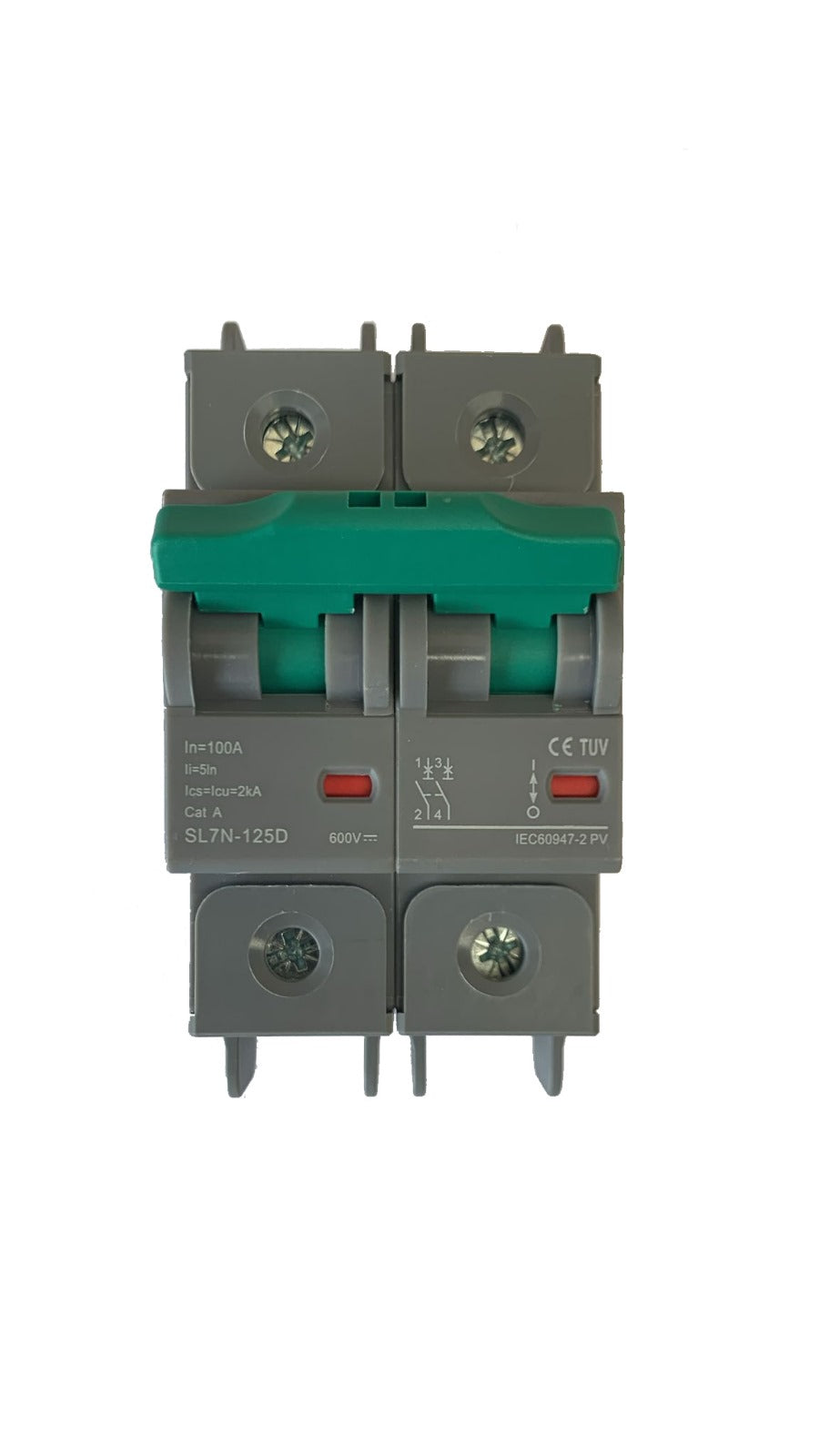

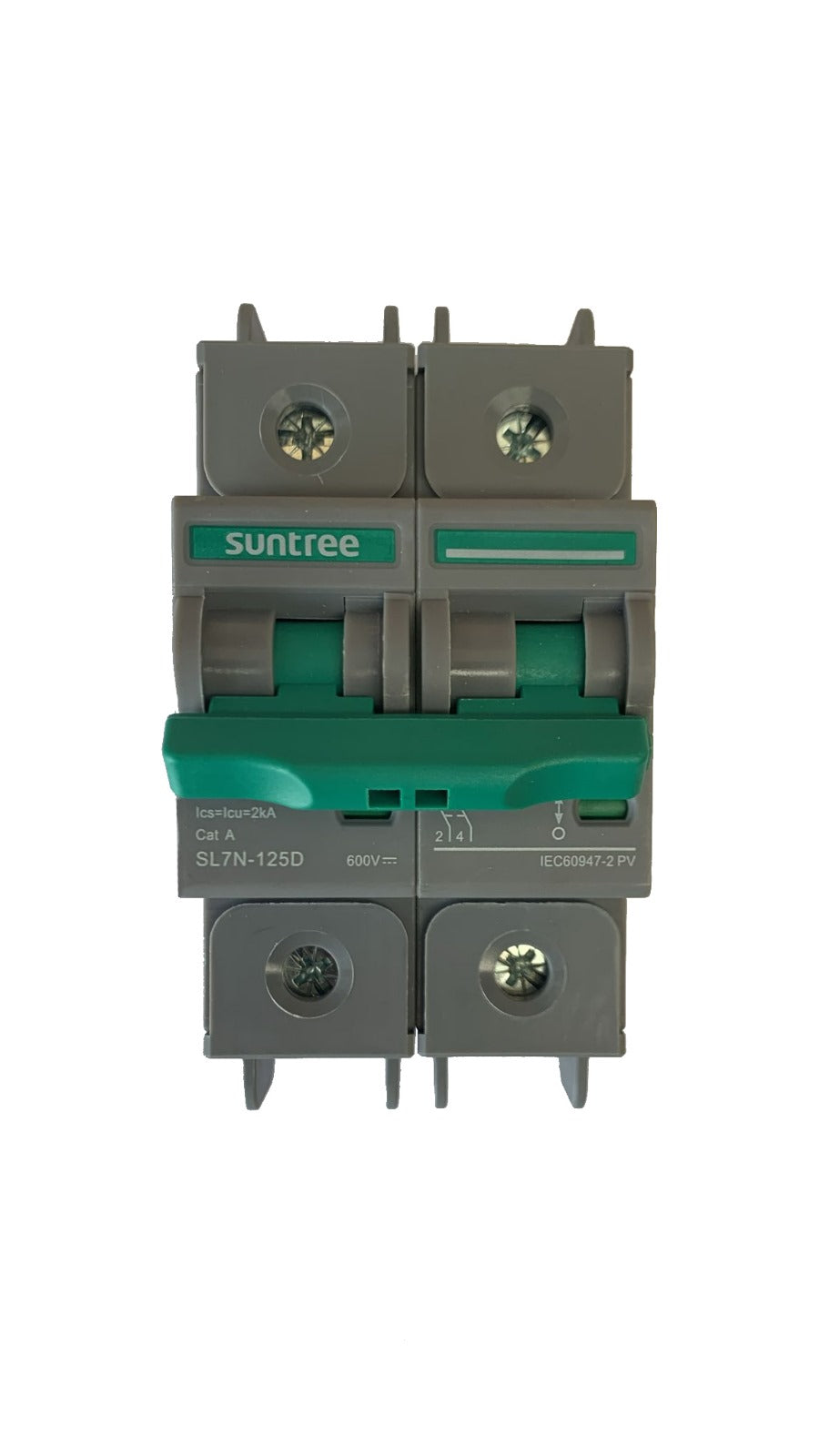

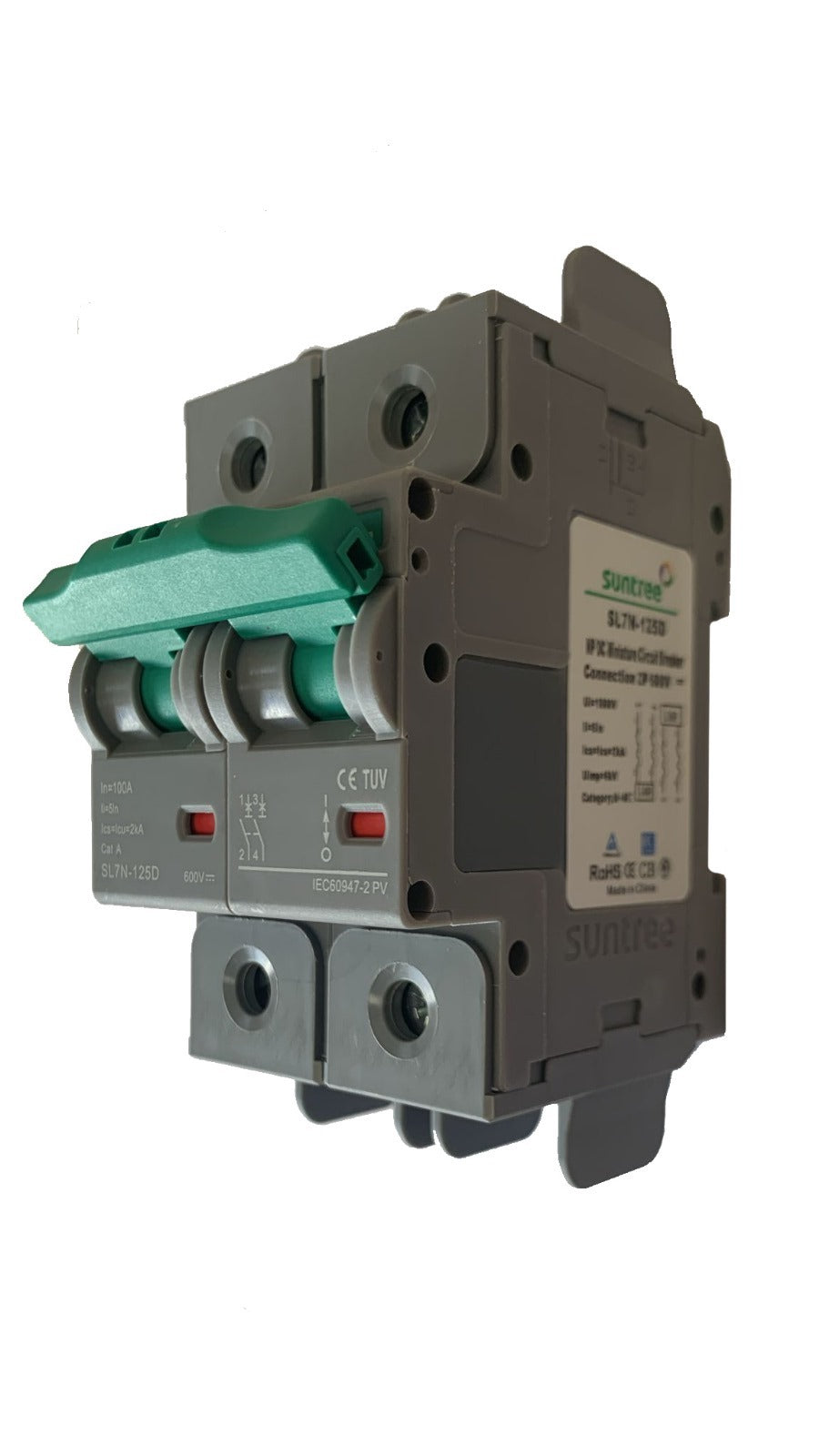

100A DC Circuit Breaker 2-Pole 600V
100A DC Circuit Breaker 2-Pole 600V
Regular price
$62.95 NZD
Regular price
Sale price
$62.95 NZD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This DC 2-pole Circuit Breaker is Rated for 100 Amps, is 35mm din rail mountable and includes arc spacers
Specifications:
Rated Current: 100A
Max Voltage: 600VDC
IP Rating: IP20
Tripping Characteristics: C Curve
Mechanical Life: 20,000
Maximum Cable Cross Section: 50mm2
Instantaneous Tripping: 5 x Rated Current
Rupturing/Breaking Capacity: 2,000A
Working Temperature: -20 to +70 Degrees Celsius
Relative Humidity: <95%
Test Standards: EN/IEC60947-1, EN/IEC60947-2
