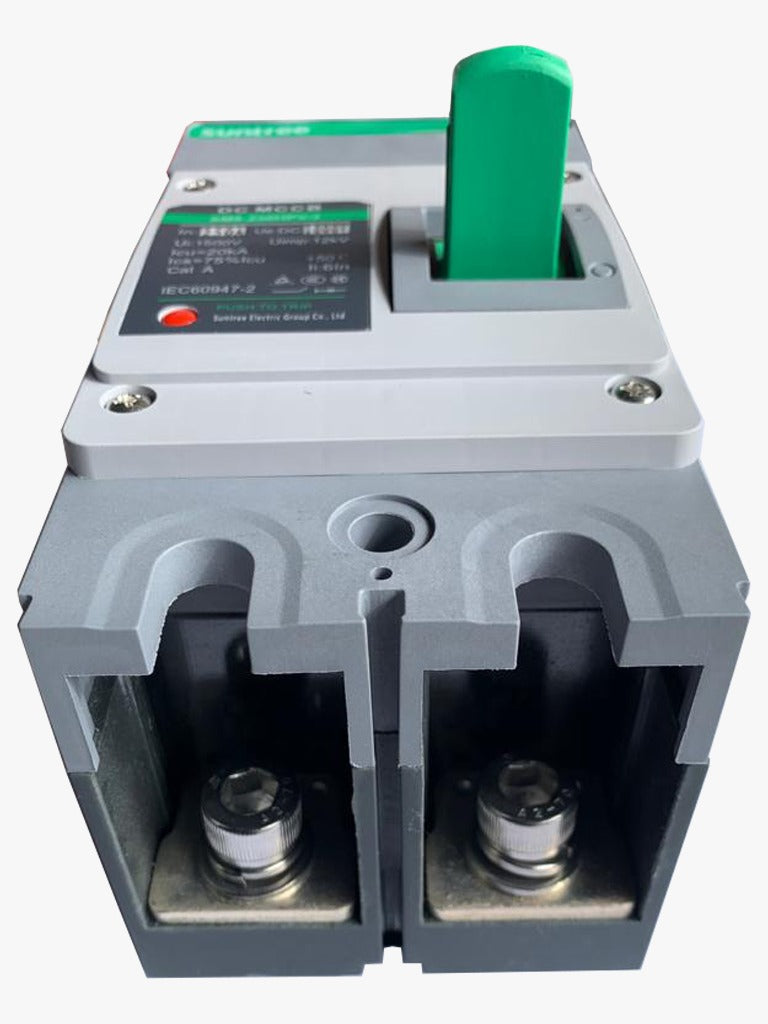

250A DC Circuit Breaker 2-Pole MCCB

This DC 2-pole Circuit Breaker is Rated for 250 Amps and is non-polarised

Specifications:

Rated Current: 250A
Rated Voltage: 1000VDC
Terminal Thread: M10
IP Rating: IP20
Tripping Characteristics: C Curve
Mechanical Life: 20,000
Rupturing/Breaking Capacity: 20kA
Working Temperature: -20 to +70 Degrees Celsius
Relative Humidity: <95%
Dimensions: 200mmH x 90mmW x 125mmD
Test Standards: EN/IEC60947-1, EN/IEC60947-2
