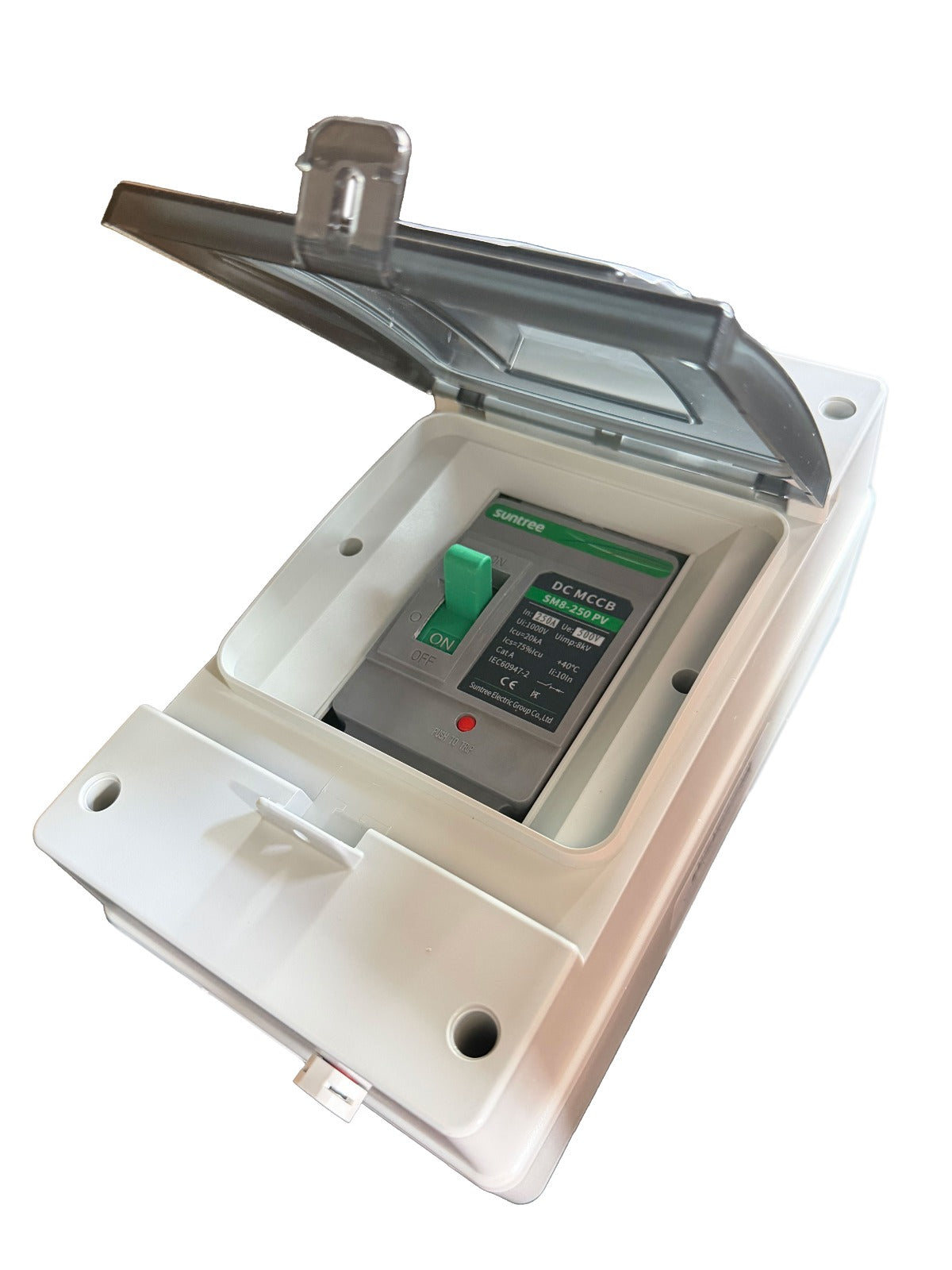

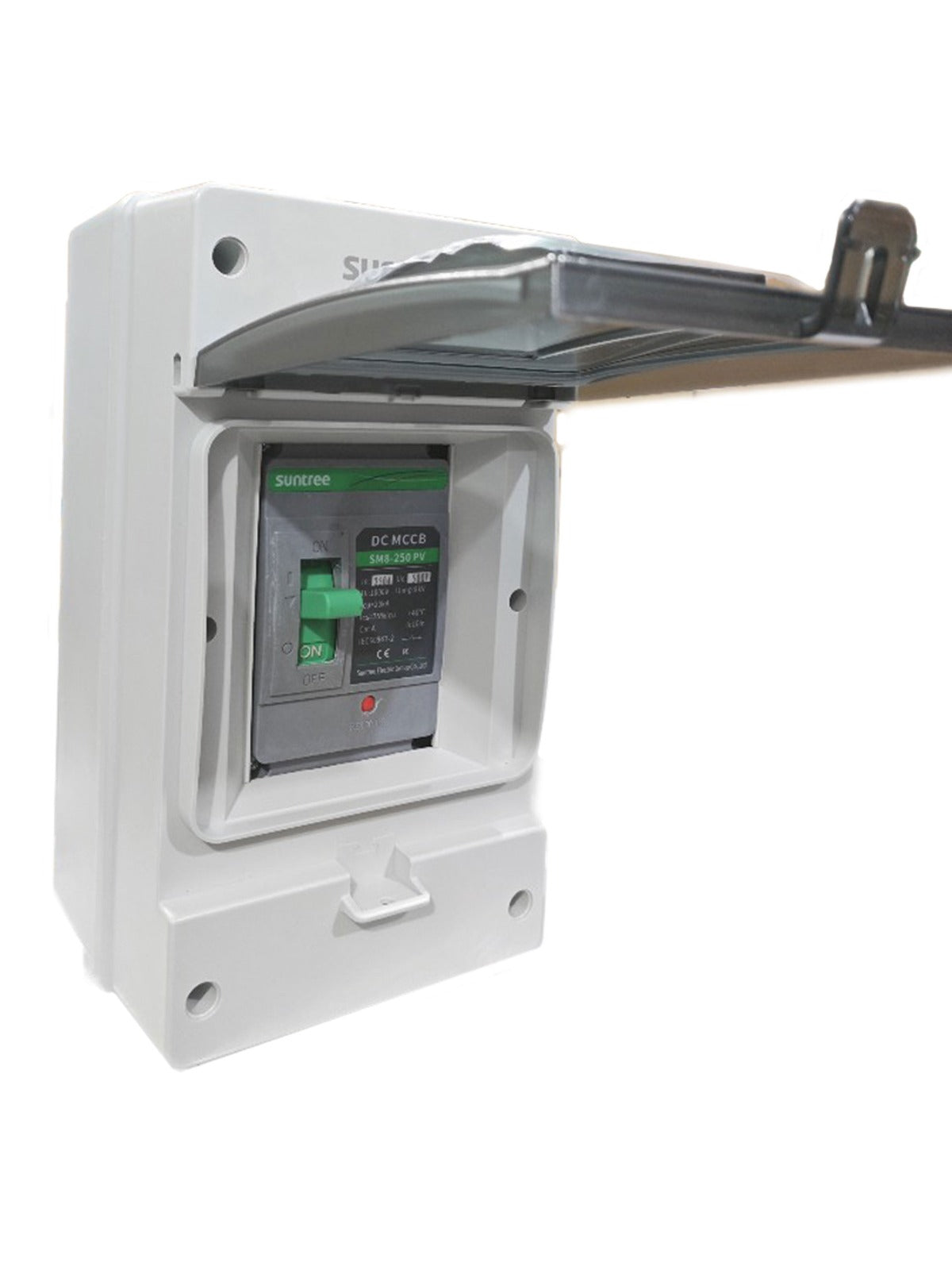

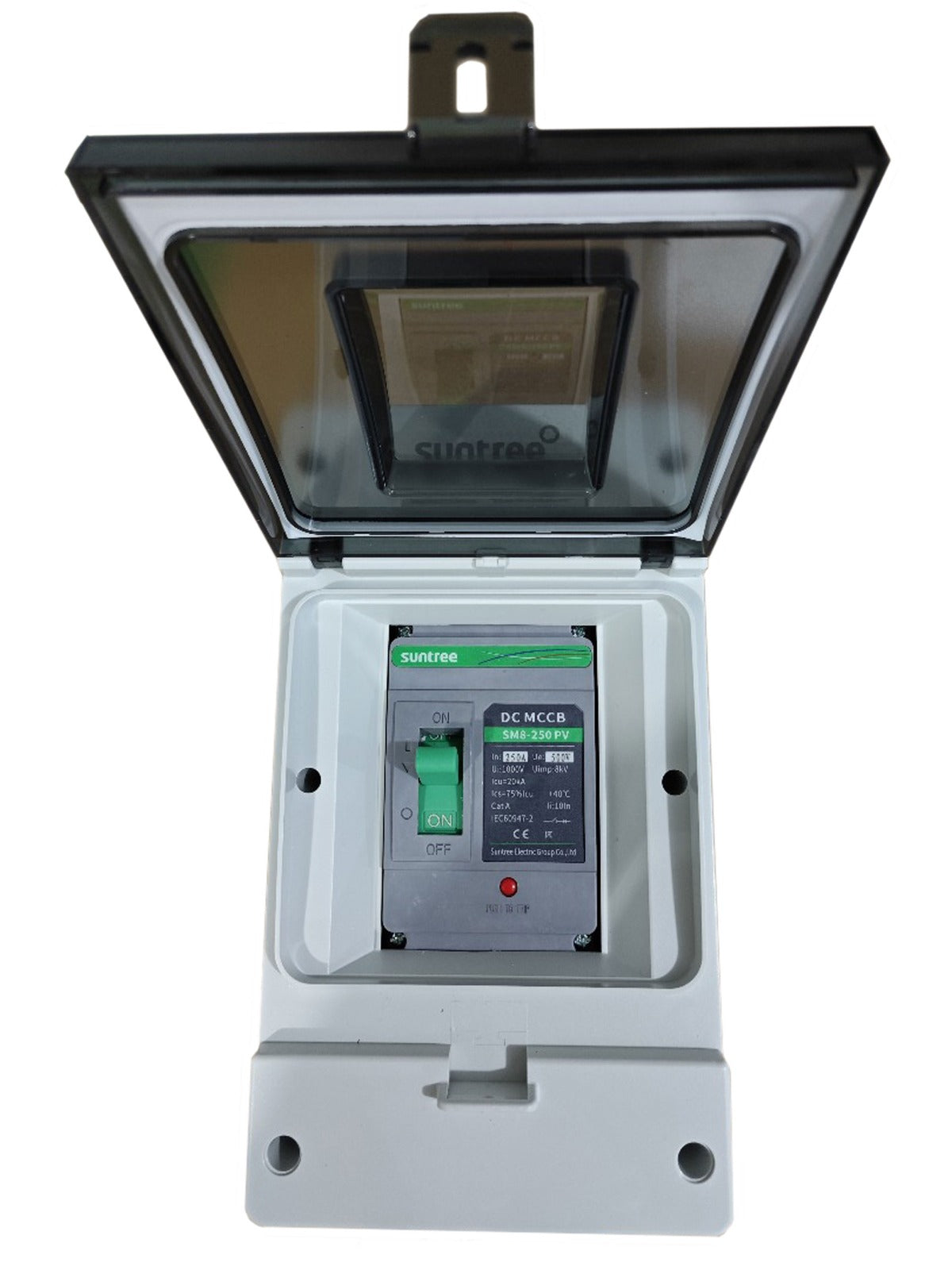

250A DC MCCB 2-Pole with Enclosure

This DC 2-pole MCCB is Rated for 250 Amps and is non-polarised

Specifications:

Rated Current: 250A
Rated Voltage: 500VDC
Rated Insulation Voltage: 1500VDC
Terminal Thread: M10
IP Rating: IP65
Tripping Characteristics: C Curve
Mechanical Life: 20,000
Rupturing/Breaking Capacity: 20kA
Working Temperature: -20 to +55 Degrees Celsius
Dimensions: 276mmH x 154mmW x 145mmD
Test Standards: EN/IEC60947-1, EN/IEC60947-2
