Fazcorp

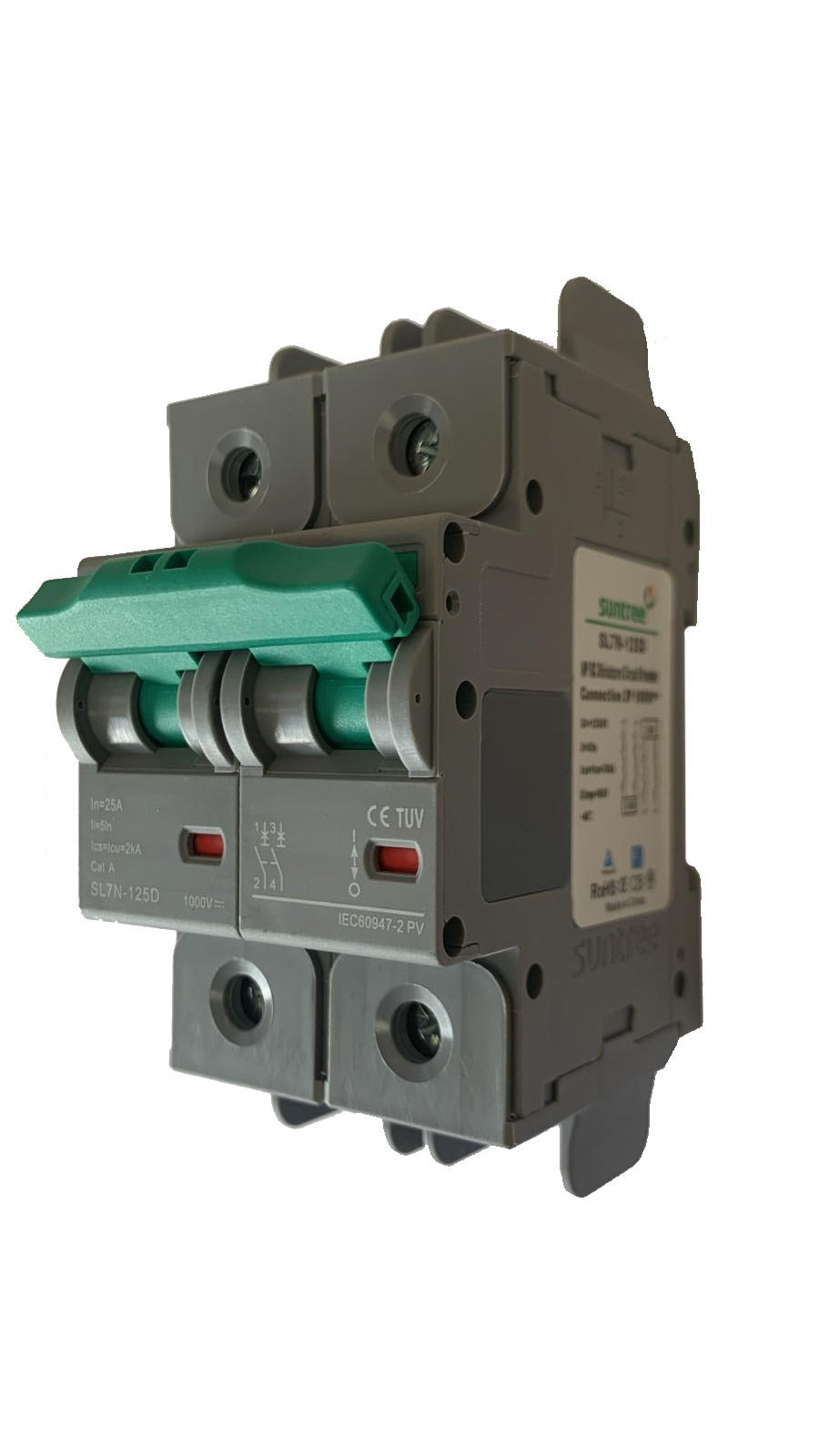

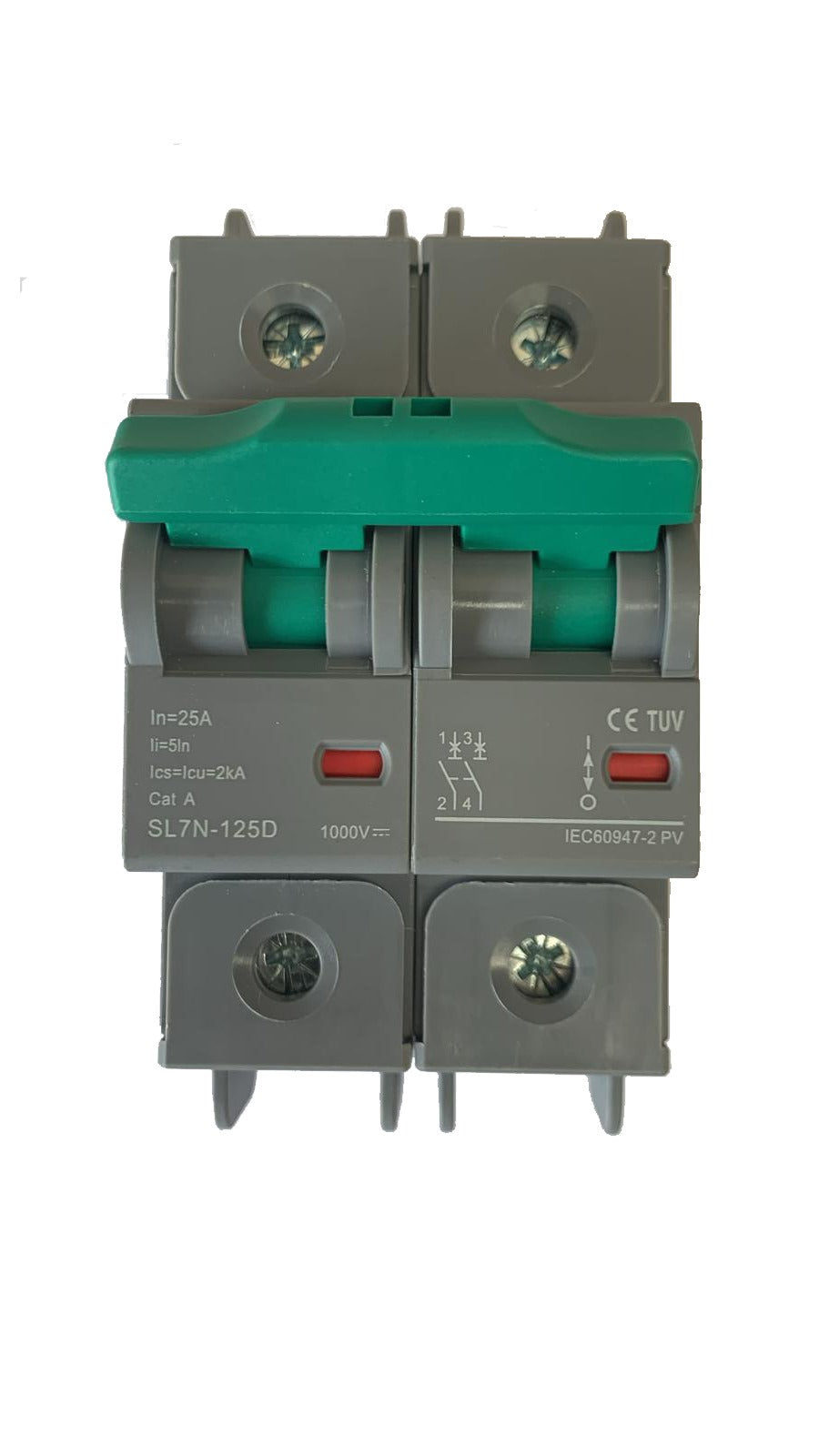

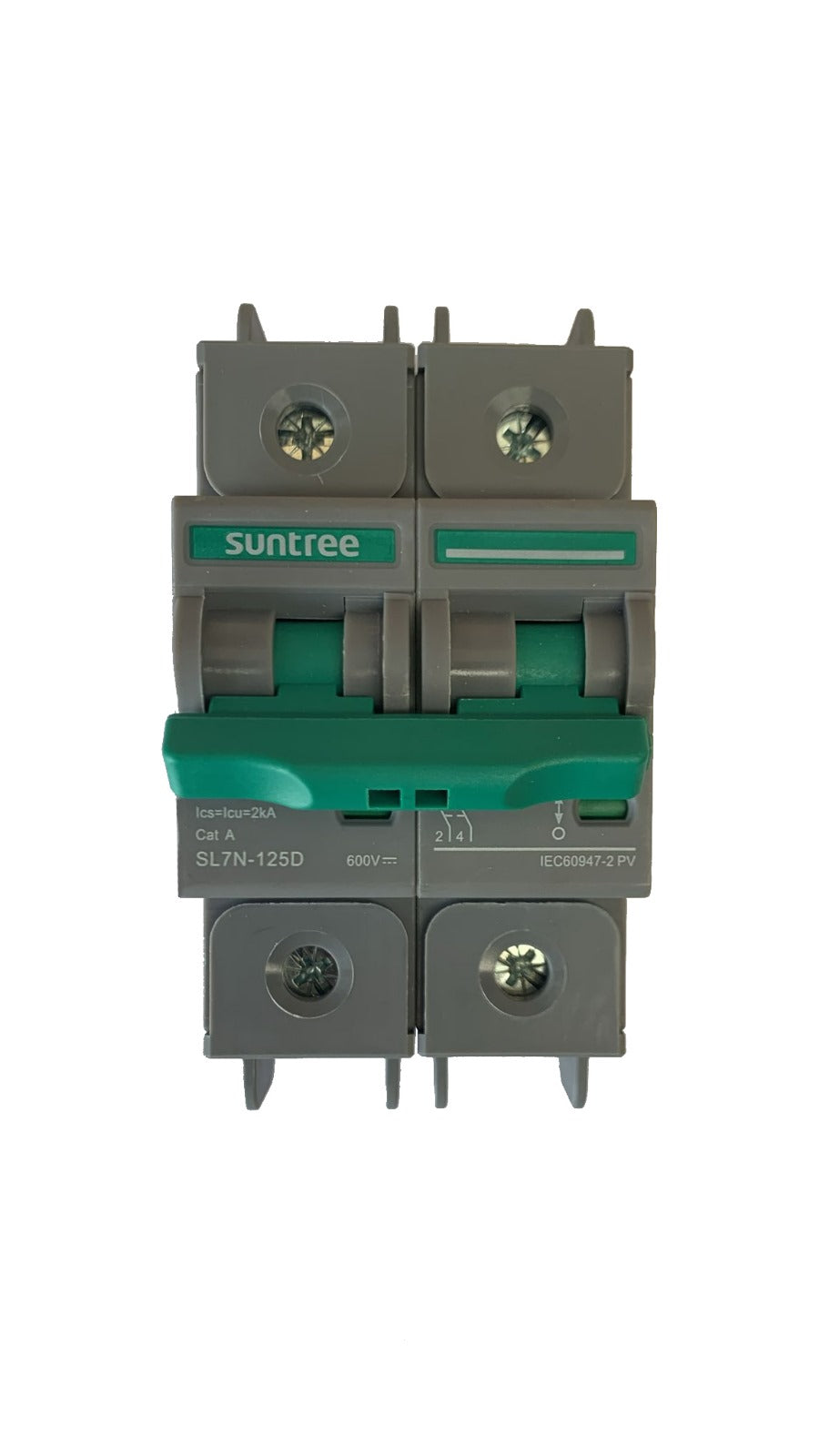

25A DC Circuit Breaker 2-Pole 1000V

25A DC Circuit Breaker 2-Pole 1000V

Regular price $62.95 NZD
Regular price Sale price $62.95 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
Default

This DC 2-pole Circuit Breaker is Rated for 25 Amps, is 35mm din rail mountable and includes arc spacers

Specifications:

Rated Current: 25A
Max Voltage: 1000VDC
IP Rating: IP20
Tripping Characteristics: C Curve
Mechanical Life: 20,000
Maximum Cable Cross Section: 50mm2
Instantaneous Tripping: 5 x Rated Current
Rupturing/Breaking Capacity: 2,000A
Working Temperature: -20 to +70 Degrees Celsius
Relative Humidity: <95%
Test Standards: EN/IEC60947-1, EN/IEC60947-2
