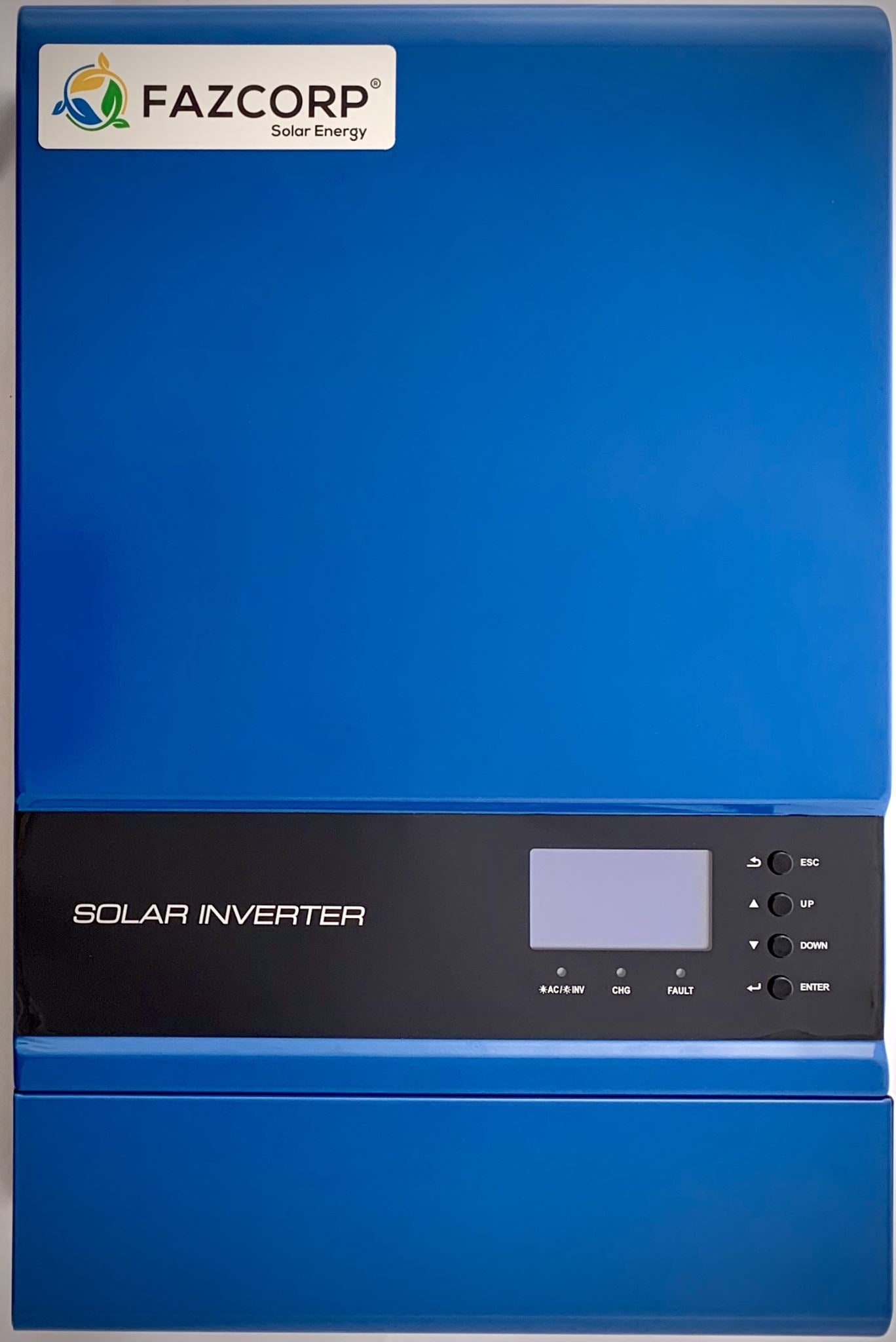

3KW ELV Off-Grid Hybrid Solar Inverter 24V

This multiple-mode off-grid solar inverter/charger features the combined functions of a 3KW pure sine wave inverter, 50A MPPT solar charger and 30A AC battery charger to offer an uninterruptible power supply in a convenient size.

Our off-grid solar inverters have been certified to comply with the following NZ standards: IEC62109-1, IEC62109-2, AS/NZS5033, AS/NZS4059. Supporting documents are available.

There is the option of WI-FI or GPRS monitoring through a phone App or web-based platform. Each unit is also supplied with a USB cable, software and user manual.

Solar Inverter Specifications:

Inverter:
Battery Voltage: 24VDC
Rated Power: 3KVA/3000W - Power Factor:1.0
Surge Power: 6KVA for 5 seconds
Waveform: Pure sine wave
Wave Generating Frequency: 19.2kHz - Driven by Optocouplers
AC Voltage Regulation: 208VAC~240VAC
Inverter Efficiency(Peak) :93%
No Load Power Consumption: <25W
Power Saving Mode Consumption: <10W
Transfer Time: 10ms-UPS; 20ms-APL

AC Input:
Voltage:230VAC
Selectable Voltage Range:
90~280 VAC - Appliance (default)
170~280 VAC - UPS
Frequency: 50 Hz

Battery:
Normal voltage: 24 VDC
Floating Charge Voltage: 27 VDC
Bulk Charging Voltage: 28.2 VDC
Overcharge Protection: 30.4 VDC
Battery types: LiFeP04, SLA, AGM, Flooded, GEL

MPPT Solar Charger:
Maximum PV Array Open Circuit Voltage: 102 VDC
MPPT Voltage Range: 30-80 VDC
PV Input Power: 1500 W
Solar Conversion Efficiency: up to 98%
Max Solar Charge Current: 50 A
Max AC Charge Current: 30 A
Max Solar/AC Charge Current: 80 A

Dimensions and Weight:
Solar Inverter Dimensions (mm): 265W*380H*115D
Weight: 12 kgs

Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: 0°C-55°C
Warranty: 2 Years
Electrical connections must be done by a registered electrician.
