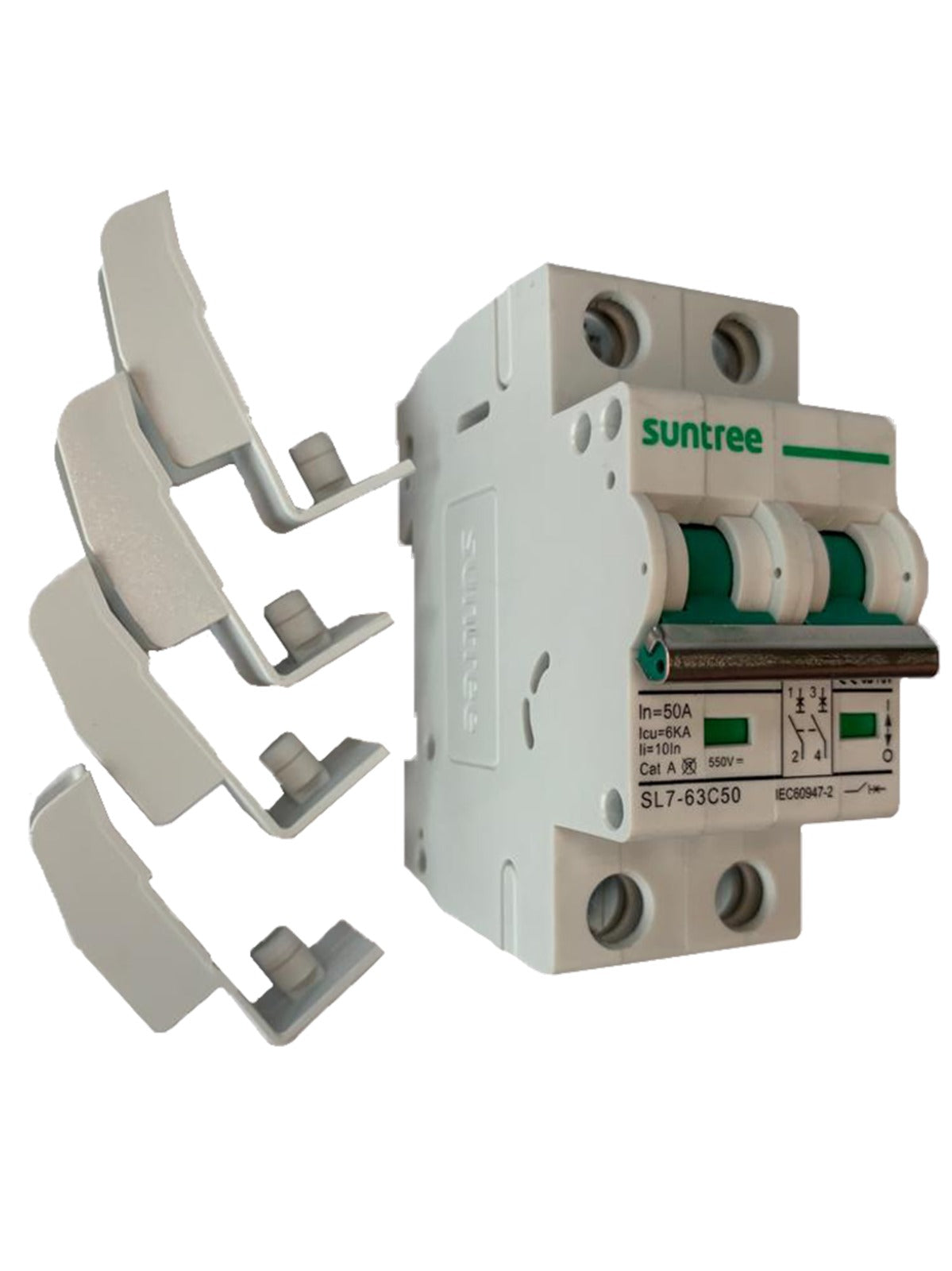

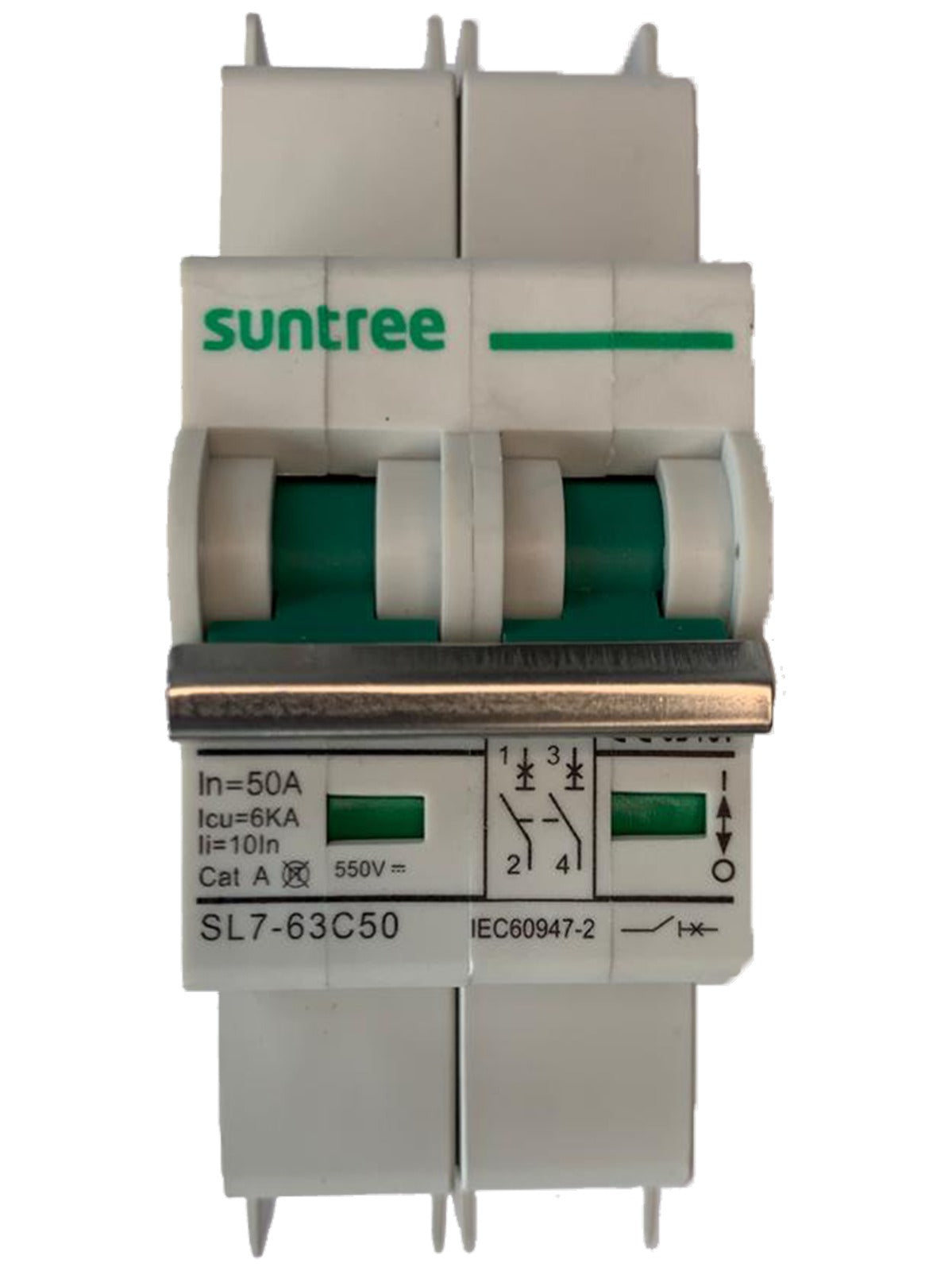

50A DC Circuit Breaker 2-Pole

This DC 2-pole Mini Circuit Breaker is rated for 50 Amps and is non-polarised. It is 35mm din rail mountable for easy installation in switchboard/circuit breaker enclosure.

Specifications:

Rated Current: 50A
Max Voltage: 550VDC
IP Rating: IP20
Tripping Characteristics: C Curve
Mechanical Life: 20,000
Maximum Cable Cross Section: 35mm2
Rupturing/Breaking Capacity: 6000A
Working Temperature: -20 to +70 Degrees Celsius
Relative Humidity: <95%
Test Standards: EN/IEC60947-1, EN/IEC60947-2
