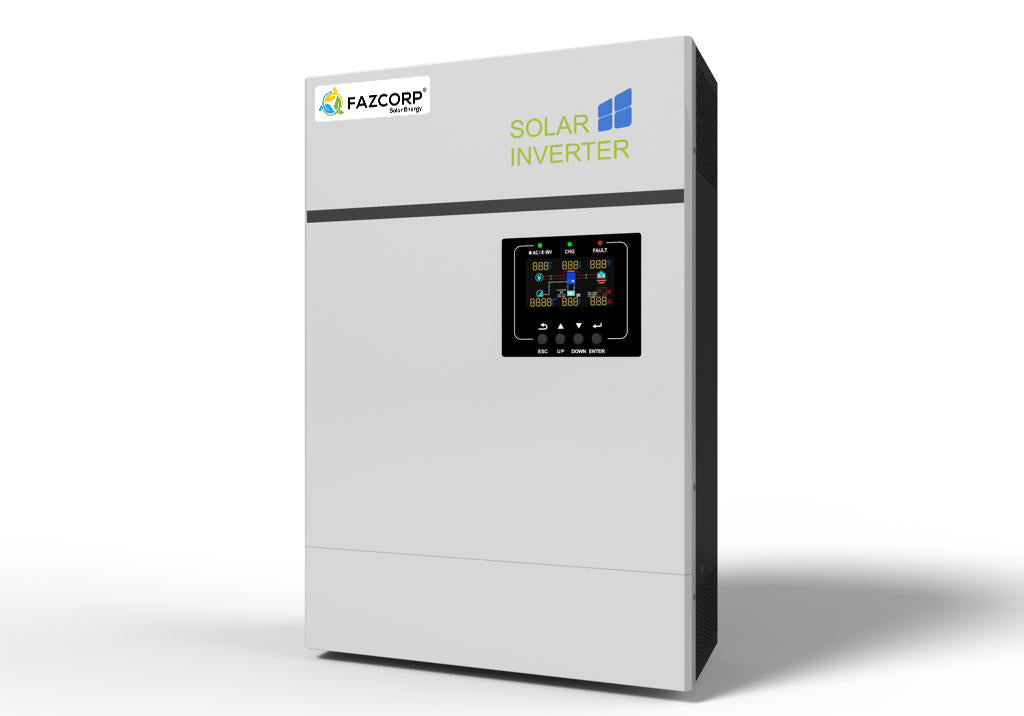

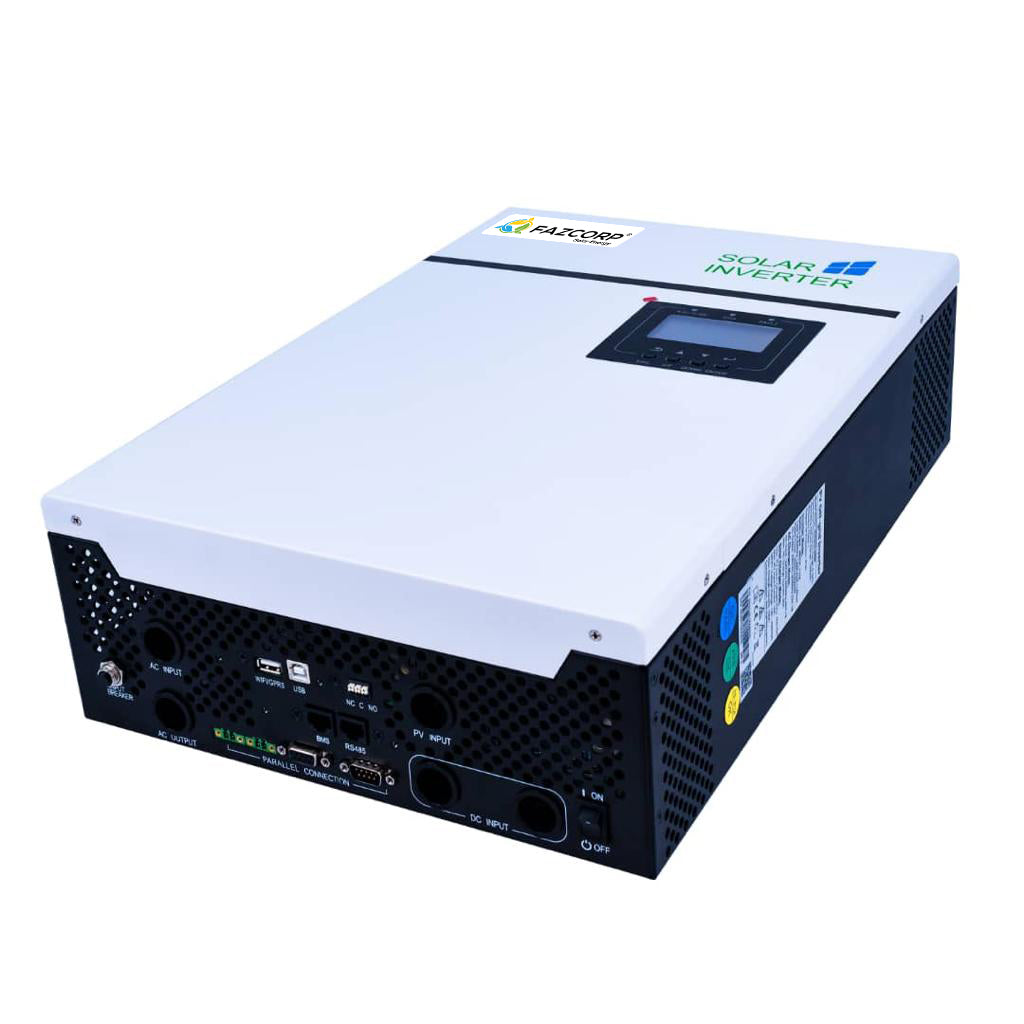

5KW LV Off-Grid Hybrid Solar Inverter 48V

This off-grid hybrid solar inverter charger features the combined functions of a 5KW pure sine wave inverter, MPPT solar charger controller and AC battery charger to offer an uninterruptible power supply in a convenient size. The high frequency switching and unity power factor for this unit makes it one of the most efficient units available.

Features:
Customisable charging parameters to work with any battery type.
Lithium Battery - The BMS software has been customised for a direct communication link with our Lithium Iron Phosphate batteries using RS485 communication.
Load power balancing function between solar and AC input source.
Can work without battery when used as a single unit.
100A MPPT for up to 6000W of solar conversion.
Up to six units can be paralleled together for more energy output on a single phase or three phase set up.

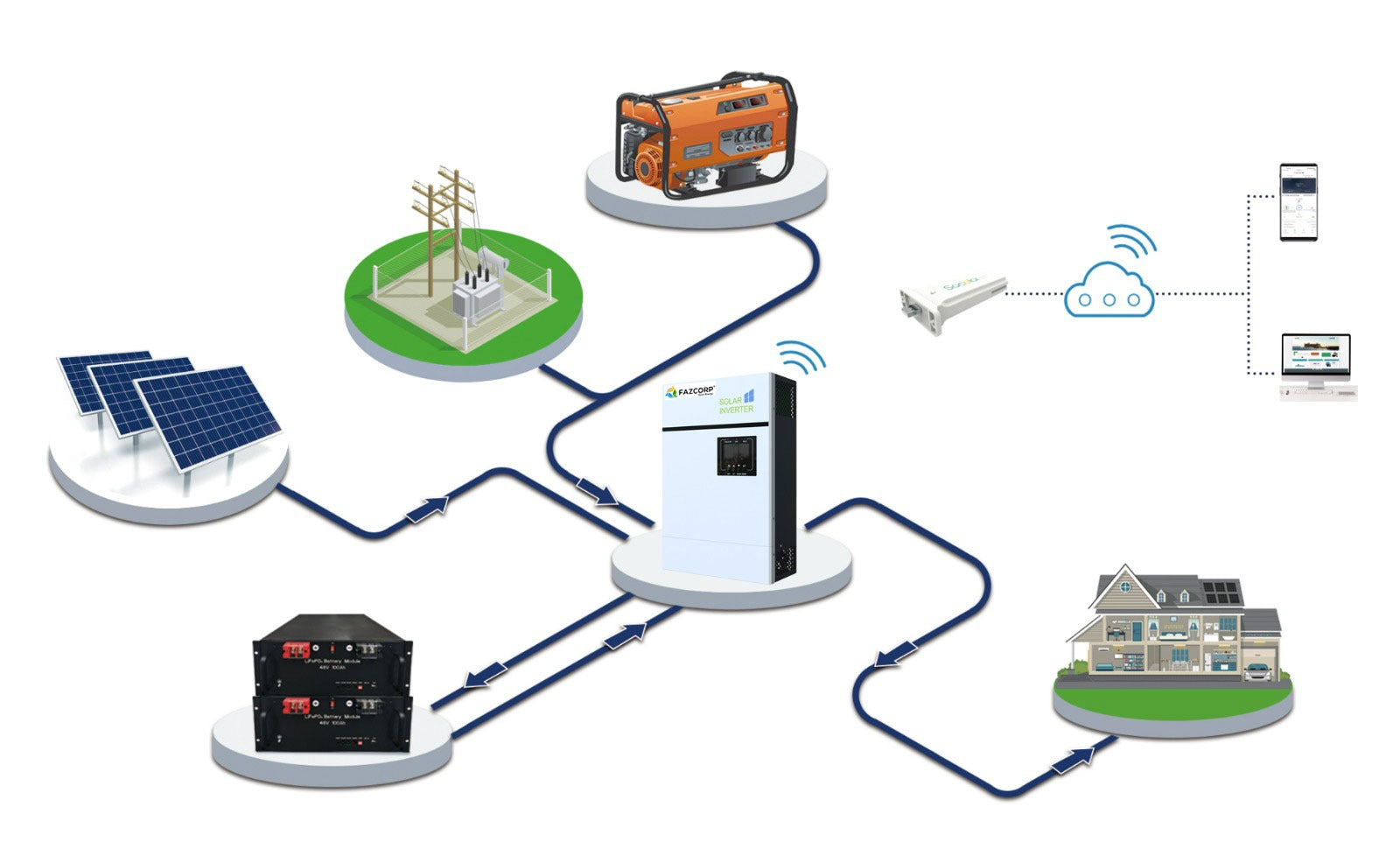

Grid and generator compatible as an option for back up if solar production is lower from bad weather.
Wifi monitoring (optional extra)

Solar Inverter Specifications:

Battery Voltage: 48VDC
Rated Power: 5KVA/5000W - Unity Power Factor
Surge Power: 10KVA for 5 seconds
Waveform: Pure sine wave 50Hz
AC Output Voltage: 230 VAC
Inverter Efficiency(Peak): 93%
No Load Power Consumption: <50W
Power Saving Mode Consumption: <15W
Transfer Time: 10ms-UPS; 20ms-APL
Surge Protection: Built-in

AC Input:
Voltage: 230VAC Pure Sine Wave
Voltage Range:
90~280 VAC - Appliance (default)
170~280 VAC - UPS
Frequency: 50 Hz

MPPT Solar Charger:
Maximum PV Array Open Circuit Voltage: 450VDC
MPPT Voltage Range: 120~430VDC
PV Input Power: 6000W
Solar Conversion Efficiency: up to 98%
Max Solar Charge Current: 100A
Max Solar+AC Charge Current: 100A

Dimensions (mm): 295W*455H*130D
Weight: 12 kgs

Humidity: 5% to 95% RH(Non-condensing)
Operating Temperature: 0°C-55°C
Warranty: 2 years

Compliance: IEC62109-1, IEC62109-2, AS/NZS5033, AS/NZS4059. Supporting documents are available.
