6A DC Circuit Breaker 1-Pole

6A DC Circuit Breaker 1-Pole

Regular price $18.95 NZD
Regular price Sale price $18.95 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

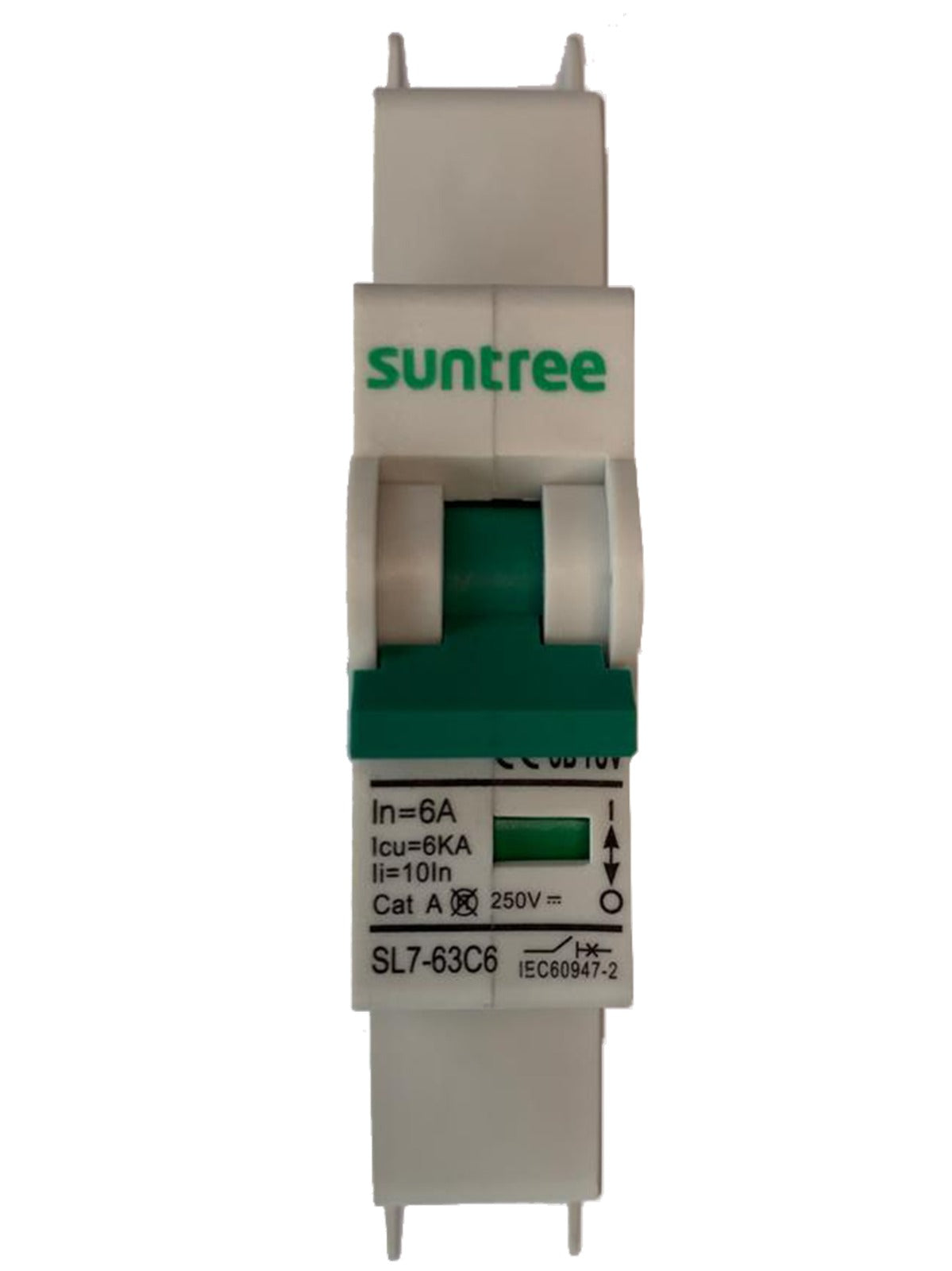

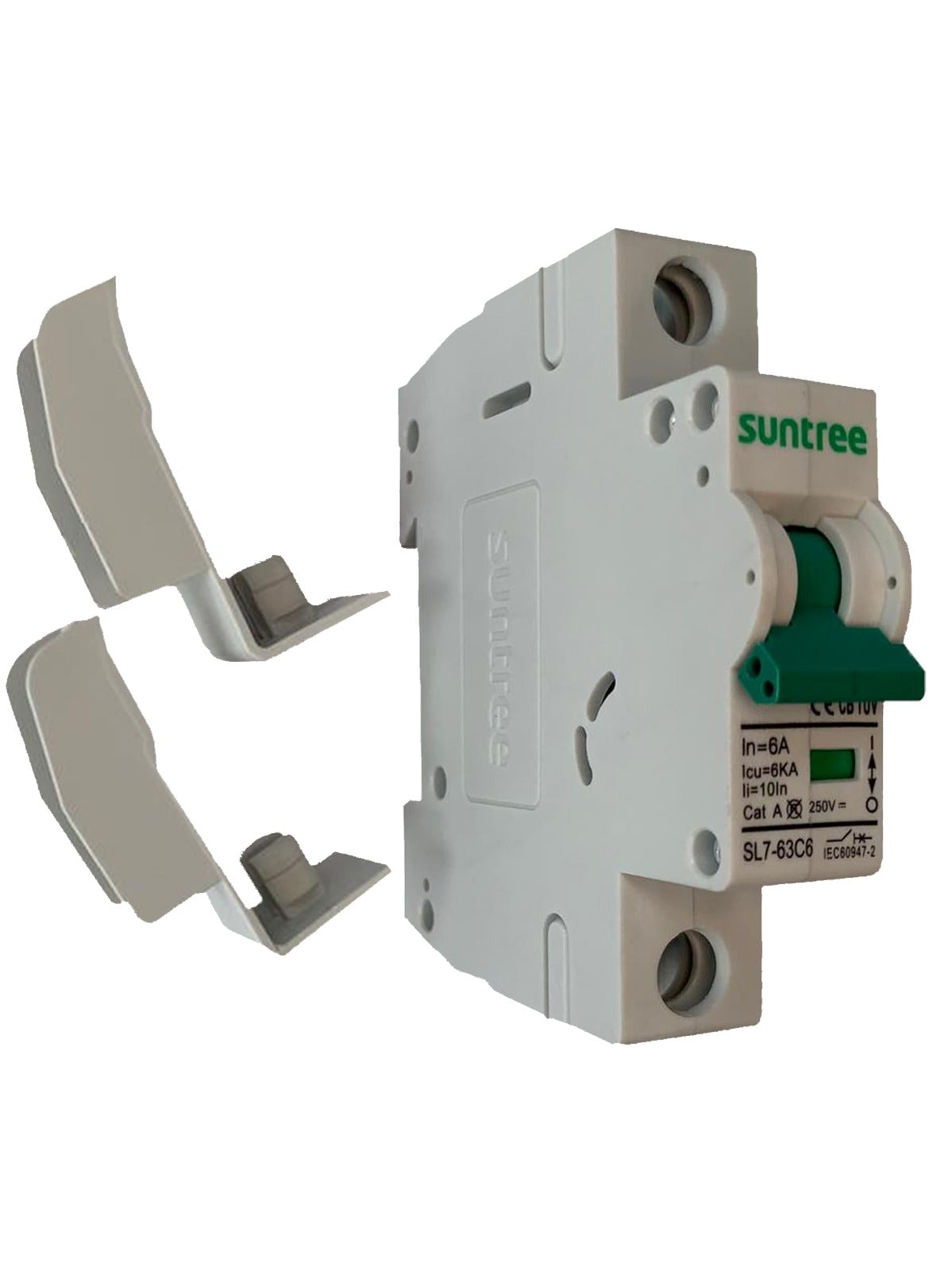

This DC 1-pole Mini Circuit Breaker is rated for 6 Amps. It is 35mm din rail mountable for easy installation in switchboard/circuit breaker enclosure.


Rated Current: 6A
Max Voltage: 250VDC
IP Rating: IP20
Tripping Characteristics: C Curve
Mechanical Life: 20,000
Maximum Cable Cross Section: 25mm2
Rupturing/Breaking Capacity: 6KA
Working Temperature: -20 to +70 Degrees Celsius
Relative Humidity: <95%
Test Standards: EN/IEC60947-2
