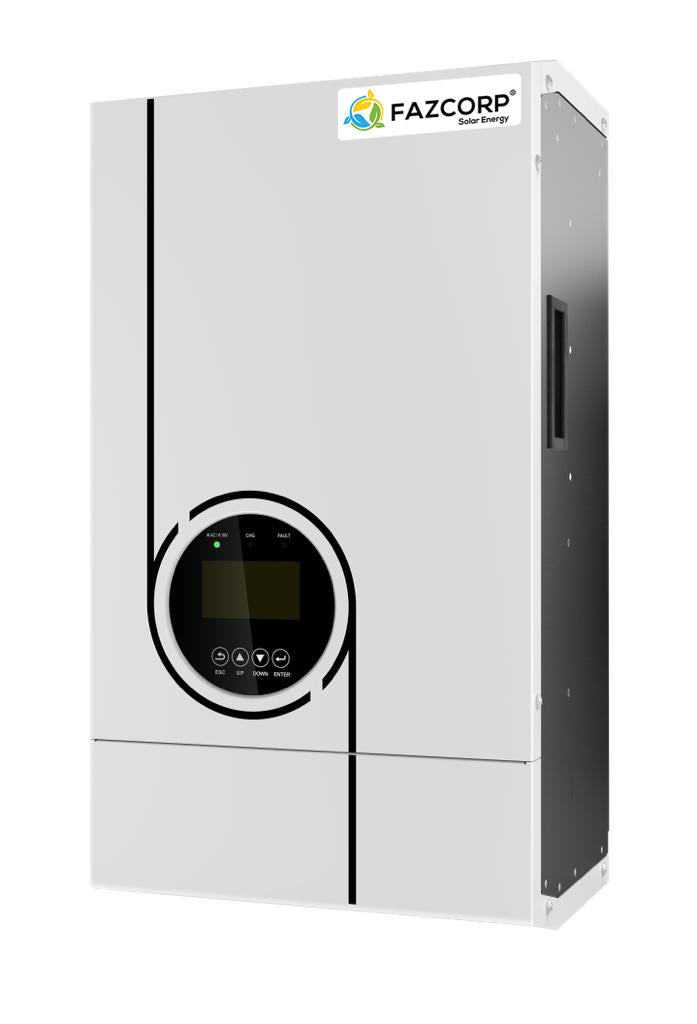

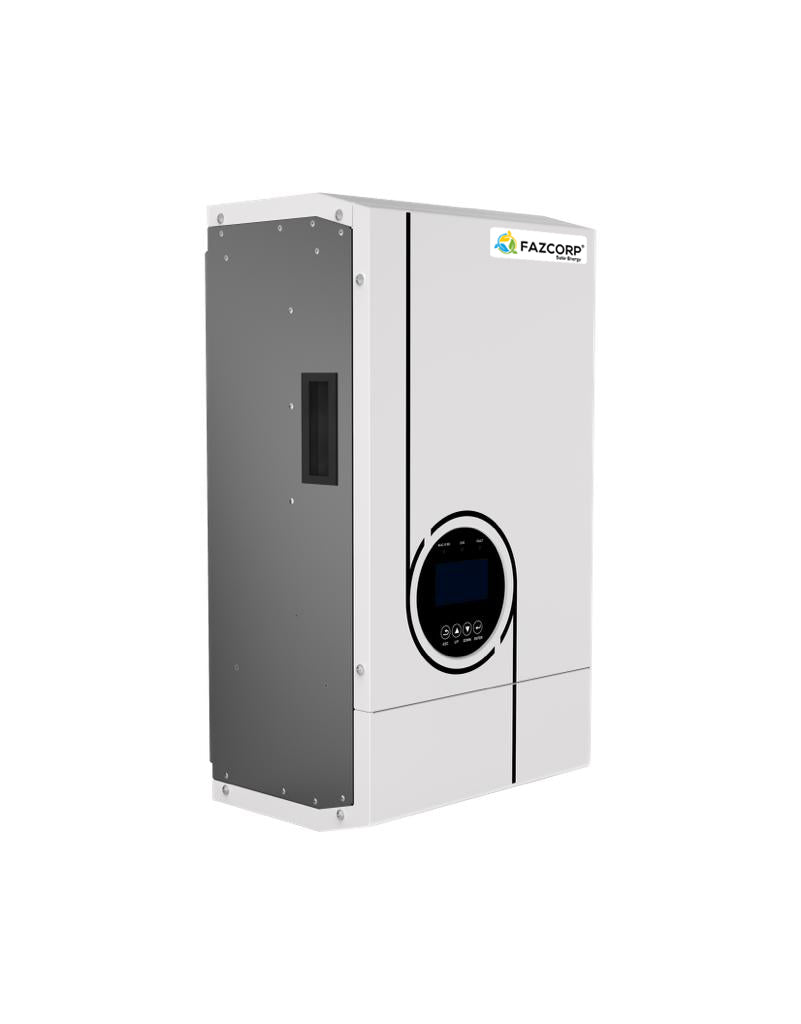

This Low-Fequency off-grid solar inverter/charger features the combined functions of a 6KW pure sine wave inverter, 80A MPPT solar charger and 60A AC battery charger to offer an uninterruptible power supply. The built in transformer allows for a 5 second 18KVA surge when using devices or appliances that have high start up current.
Features:
Electronically and Galvanically Isolated
Customisable charging parameters to work with any battery type
1.0 Power Factor
Load power balancing function between solar and AC input source
Can work without battery when used as a single unit
80A MPPT for 4500W of solar conversion
Up to six units can be paralleled together for more energy output on a single phase or three phase set up.

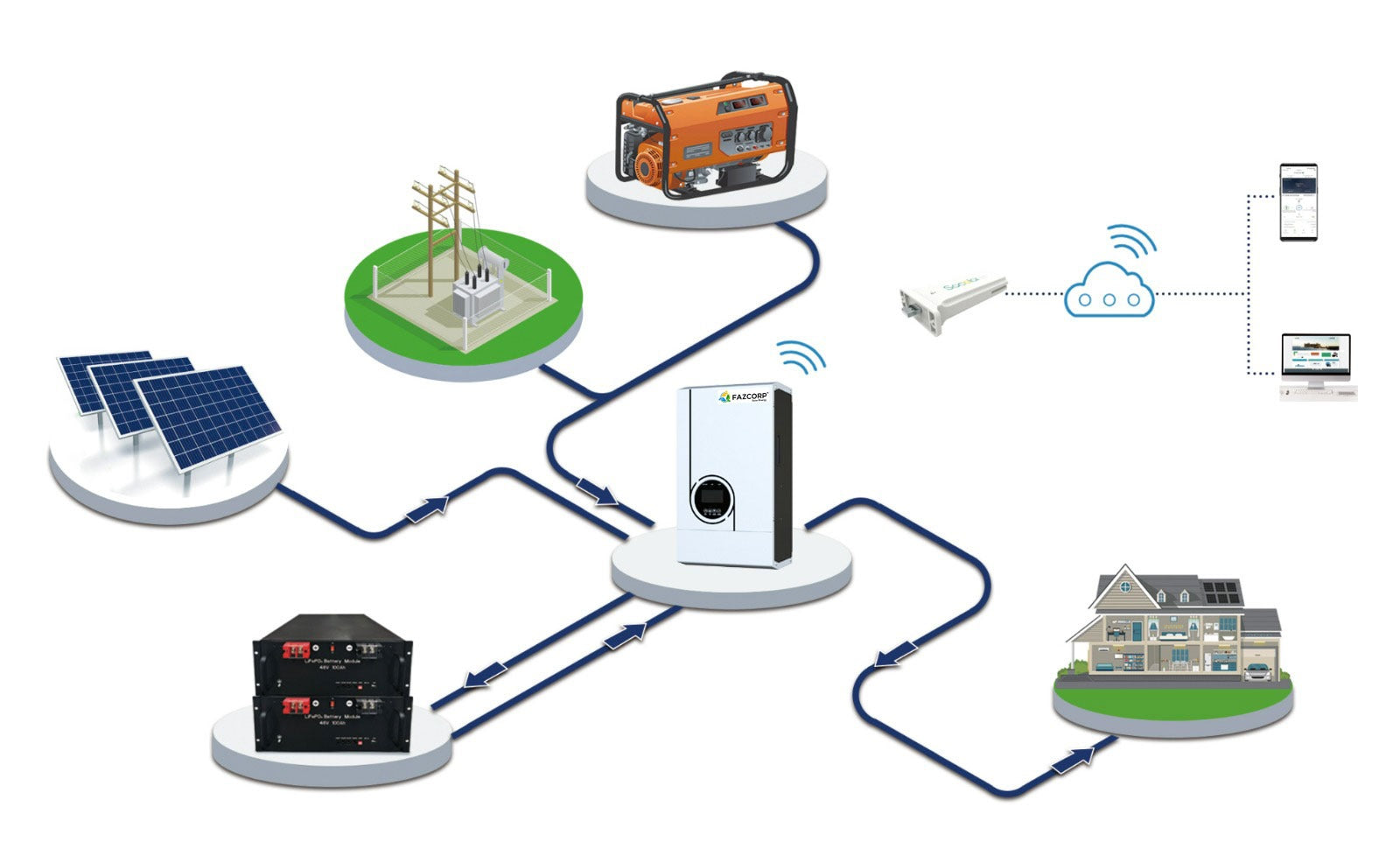

Grid/Generator compatible for back up
Deliver 12kW of energy with the combined inverter mode + AC Bypass mode.
Two AC outputs for essential and non-essential loads
AC Coupling creates a micro-grid to keep a grid connected system working in the event of power failure
+131,000 hours design life
Passive cooling with fan assist
Optional Wifi monitoring
Specifications:
Inverter:
Battery Voltage: 48VDC
Rated Power: 6KVA/6000W
Waveform: Pure sine wave
AC Output Voltage: 230VAC
Inverter Efficiency(Peak) :94%
Standby Consumption: <35W
Power Saving Mode Consumption: <7W
Transfer Time: 10ms-UPS; 20ms-APL
AC Input:
Voltage:230VAC
Selectable Voltage Range:
154-272 VAC - Appliance (default)
184-272 VAC - UPS
Frequency: 50 Hz
MPPT Solar Charger:
Max Solar Open Circuit Voltage: 250 VDC
MPPT Voltage Range: 60-250 VDC
PV Input Power: 4500 W
Solar Conversion Efficiency: up to 98%
Max Solar Charge Current: 80 A
Max AC Charge Current: 60 A
Max Charge Current: 140 A
Dimensions and Weight:
Solar Inverter Dimensions (mm): 650mm x 365mm x 247mm
Weight: 38.5 kgs
Humidity: 5% to 95% Relative Humidity (Non-condensing)
IP20: Suitable for indoor use
Operating Temperature: 0°C-55°C
Warranty: 3 Years
Compliance: IEC62109-1, IEC62109-2, AS/NZS5033, AS/NZS4059
