Fazcorp

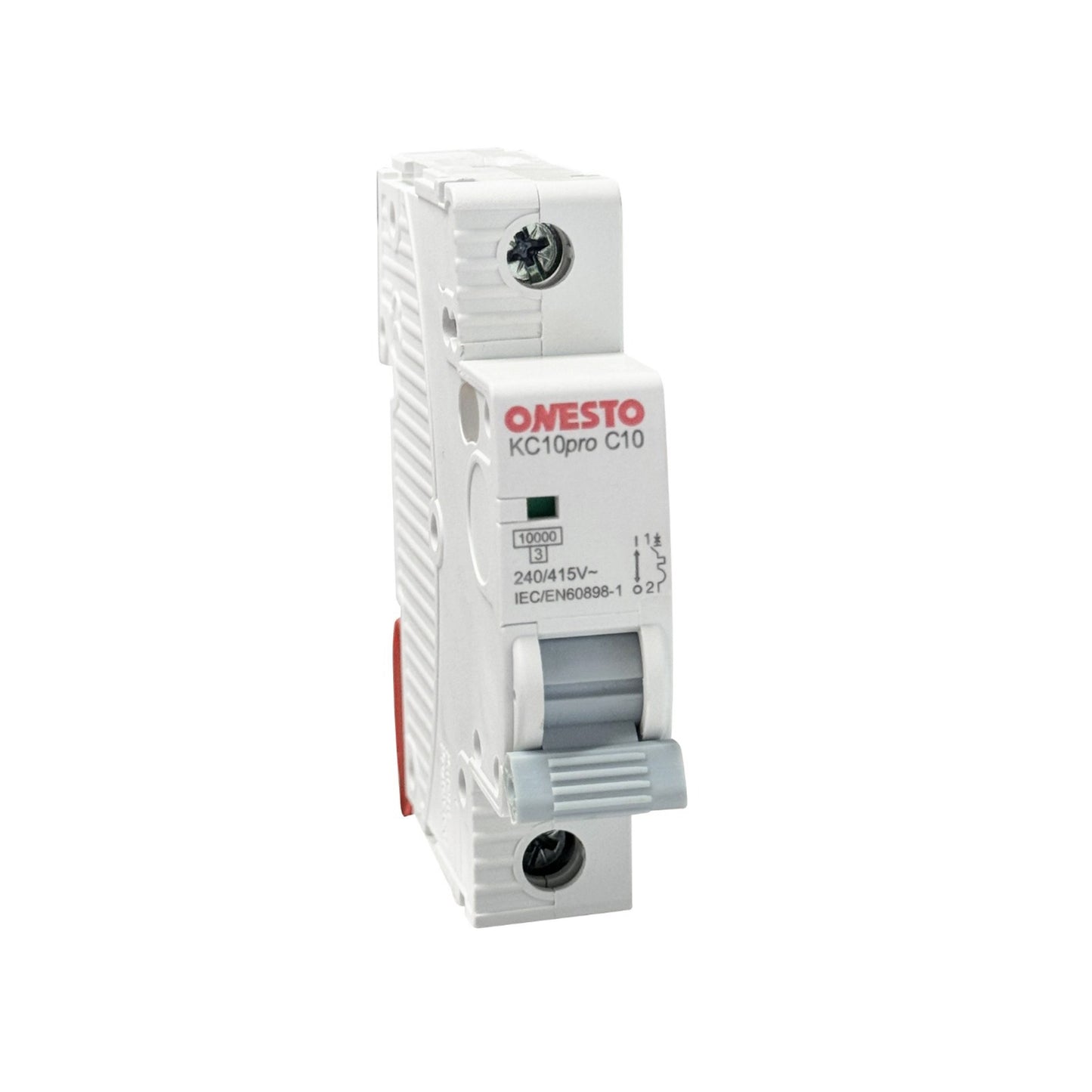

AC Circuit Breaker 1-Pole 10A

AC Circuit Breaker 1-Pole 10A

Regular price $14.95 NZD
Regular price Sale price $14.95 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
Default

This AC 1-pole Mini Circuit Breaker is rated for 10 Amps.
It is 35mm din rail mountable for easy installation in switchboard/circuit breaker enclosure.

Specifications:

Rated Current: 10A
Max Voltage: 415VAC
IP Rating: IP20
Tripping Characteristics: C Curve
Mechanical Life: 20,000
Maximum Cable Cross Section: 25mm2
Rupturing/Breaking Capacity: 10000A
Working Temperature: -20 to +70 Degrees Celsius
Relative Humidity: <95%
Test Standards: EN/IEC60898-1 SAA Approved
