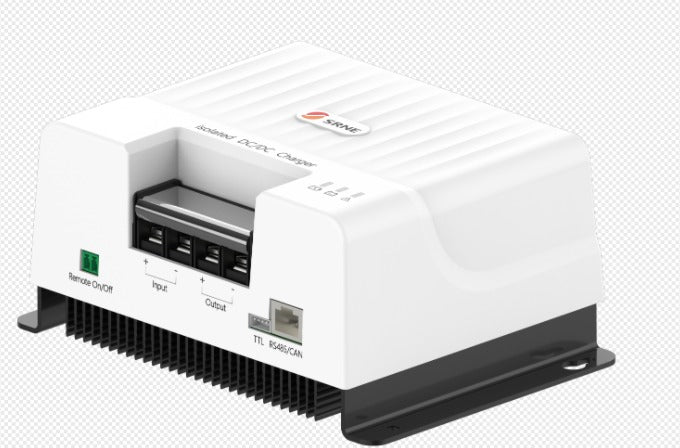

DC-DC Isolated Charger 24V 15A

DC-DC Charger Features:

Isolated charger/power supply
Remote On/Off
Optional modes
Supports multiple battery types
Adjustable parameters
Built-in Bluetooth for monitoring with the SRNE mobile App
Supports TTL, RS485 and CAN(RVC Protocol)
Compatible with SRNE Master Control Unit

Specifications:

System Voltage: 24V
Rated Charging Current: 15Amps
Input Voltage Range: 20-32Volts
Input Startup Voltage: 26.4Volts
Input Stop Voltage : 25Volts
Maximum Coversion Efficiency: 90%
Cooling Mode: Natural Heat Dissipation
Operating Temperature: -35 - +45 Degrees celsius
Protection Degree: IP43
Operating Altitude: <3000m
Communication Methods: TTL, RS485, CAN(RV-C Protocol), Built-in Bluetooth
Size: 187mm x 134mm x 84mm
Weight: 3kgs
Warranty: 5 Years
