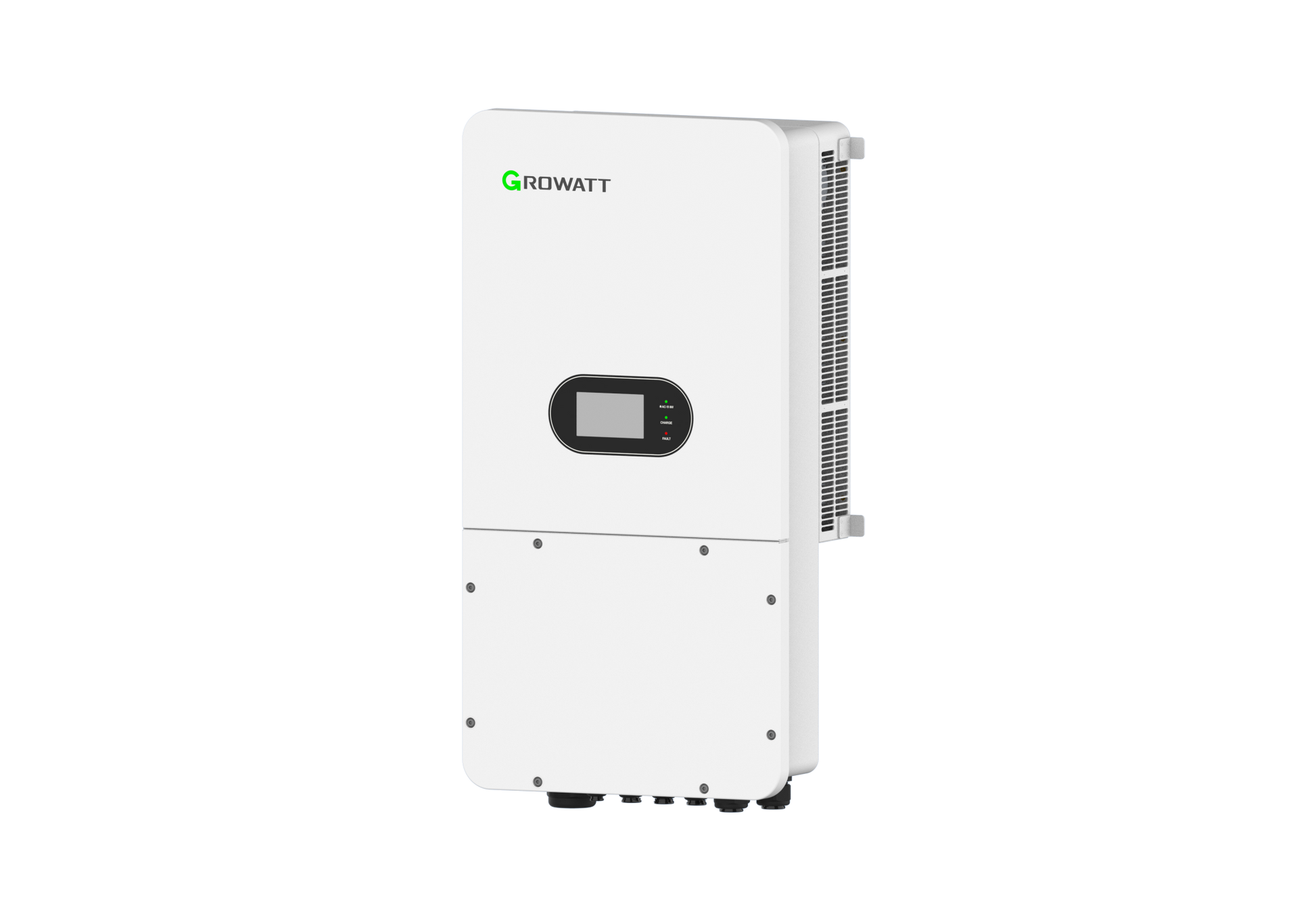

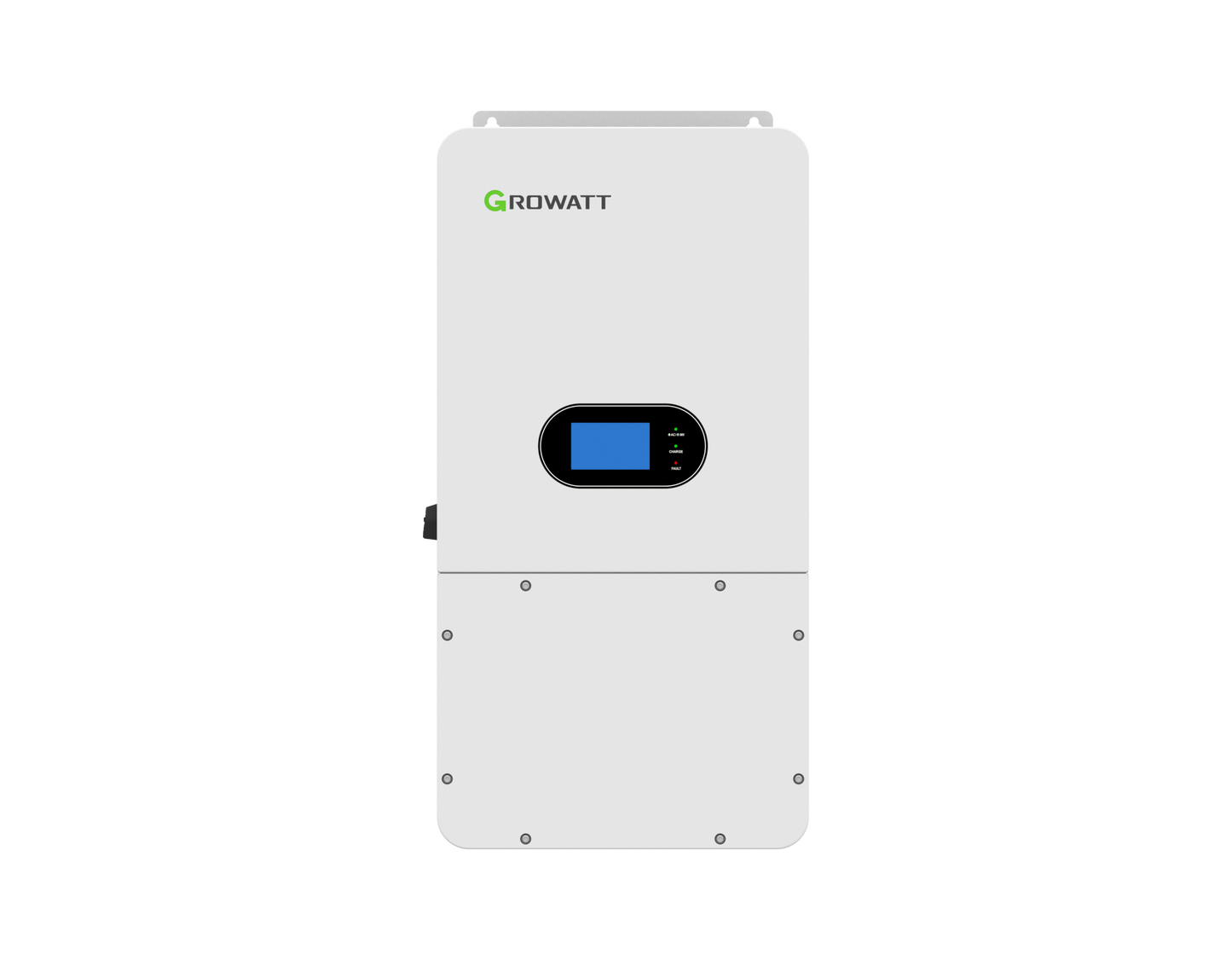

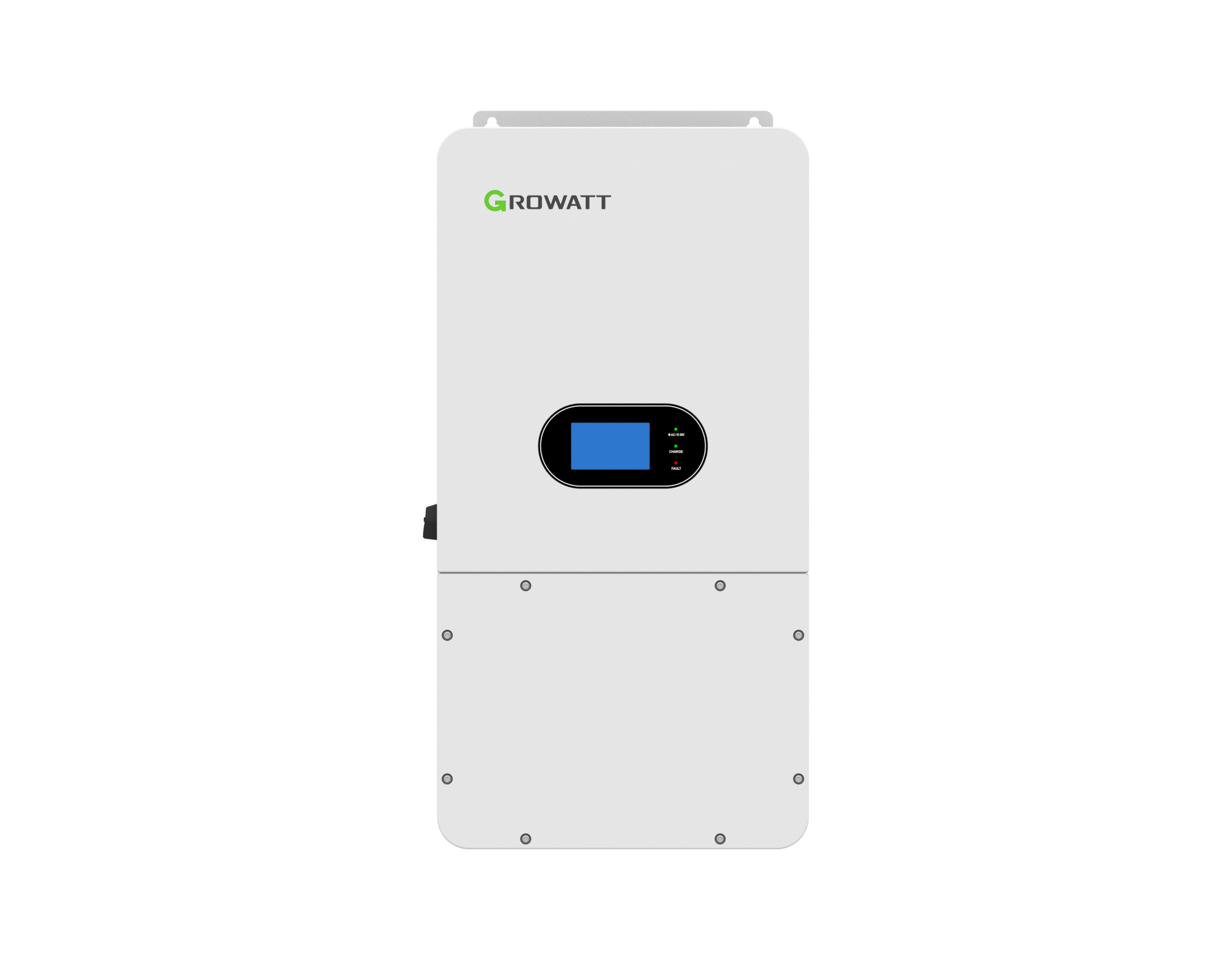

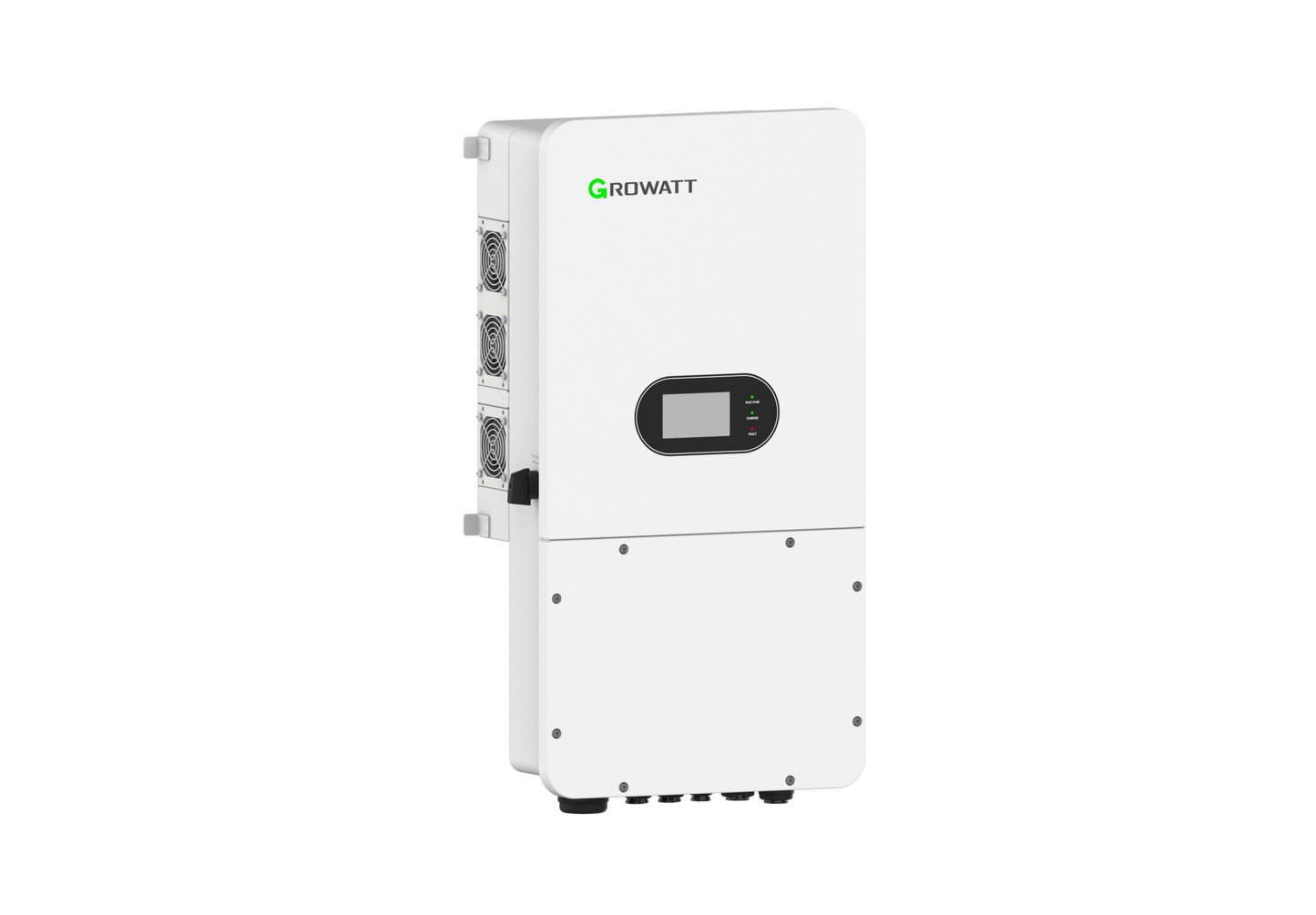

Growatt 10KW On/Off-Grid Hybrid Solar Inverter 48V SPM10000TL-HU IP65

This on/off-grid hybrid solar inverter charger features the combined functions of a 10KW pure sine wave inverter, MPPT solar charger controller and AC battery charger to offer an uninterruptible power supply.

SPM10000TL-HU Features:
Electronically and Galvanically Isolated
Customisable charging parameters to work with any battery type
Unity Power Factor (Adjustable)
Three MPPT Trackers for up to 20000W of solar conversion
Higher solar voltage input
Load power balancing function between solar and AC input source
Up to 6 units can be paralleled together on a single phase or three phase set up
Grid and generator compatible as an option for back up if solar production is low
Built in Automatic Transfer Switch to change between generator or grid supply
+170,000 hours design life
Wifi monitoring Included
Passive Cooling With Intelligent Fan Assist

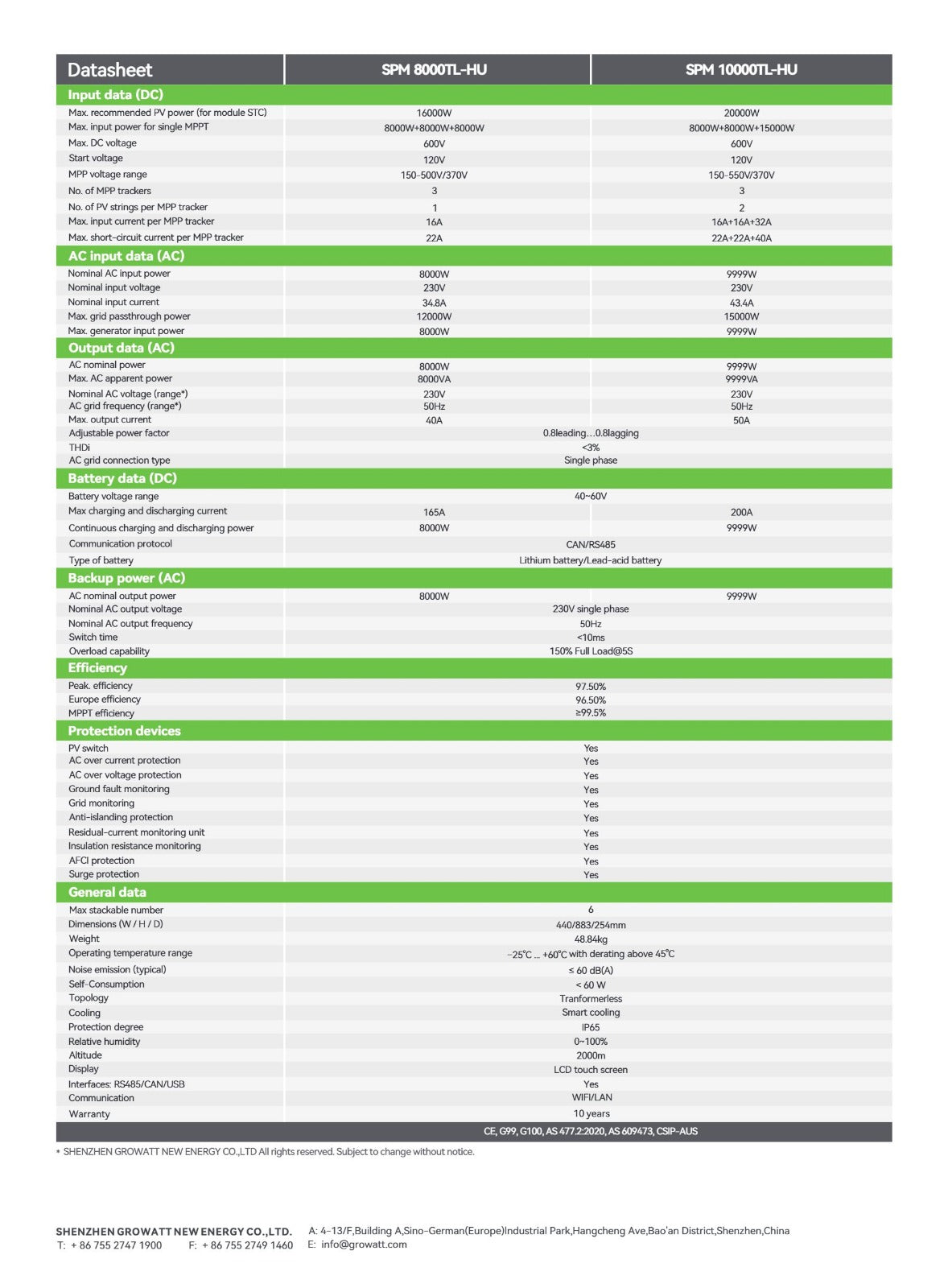

SPM10000TL-HU Solar Inverter Specifications:

Battery Voltage: 48VDC
Rated Power: 9999W/9999VA
Waveform: Pure sine wave 50Hz
AC Output Voltage: 230 VAC
Inverter Efficiency(Peak): 97.50%
No Load Power Consumption: <60W
Transfer Time: 10ms

AC Input:
Voltage: 230VAC Pure Sine Wave
Frequency: 50 Hz
Max AC Input Current: 43.4A

MPPT Solar Charger:
Maximum PV Array Open Circuit Voltage: 600VDC
MPPT Voltage Range: 150~550VDC
PV Input Power: 8000W + 8000W + 15000W
Max DC Input current per string: 16A + 16A +32A
Solar Conversion Efficiency: up to 99.5%
Max Solar Charge Current: 200A
Max Solar+AC Charge Current: 200A

Dimensions (mm): 883H*440W*254D
Net Weight: 48.4 kg
Gross Weight: 50.8 kg

Humidity: 0-100%
IP Rating: IP65
Operating Temperature: -25°C - +60°C With derating above 45°C
Altitude: <2000m
Warranty: 10 years

Compliance: IEC62109-1, IEC62109-2, AS/NZS4777.2, AS/NZS4417.1 AS/NZS5033, AS/NZS4059
