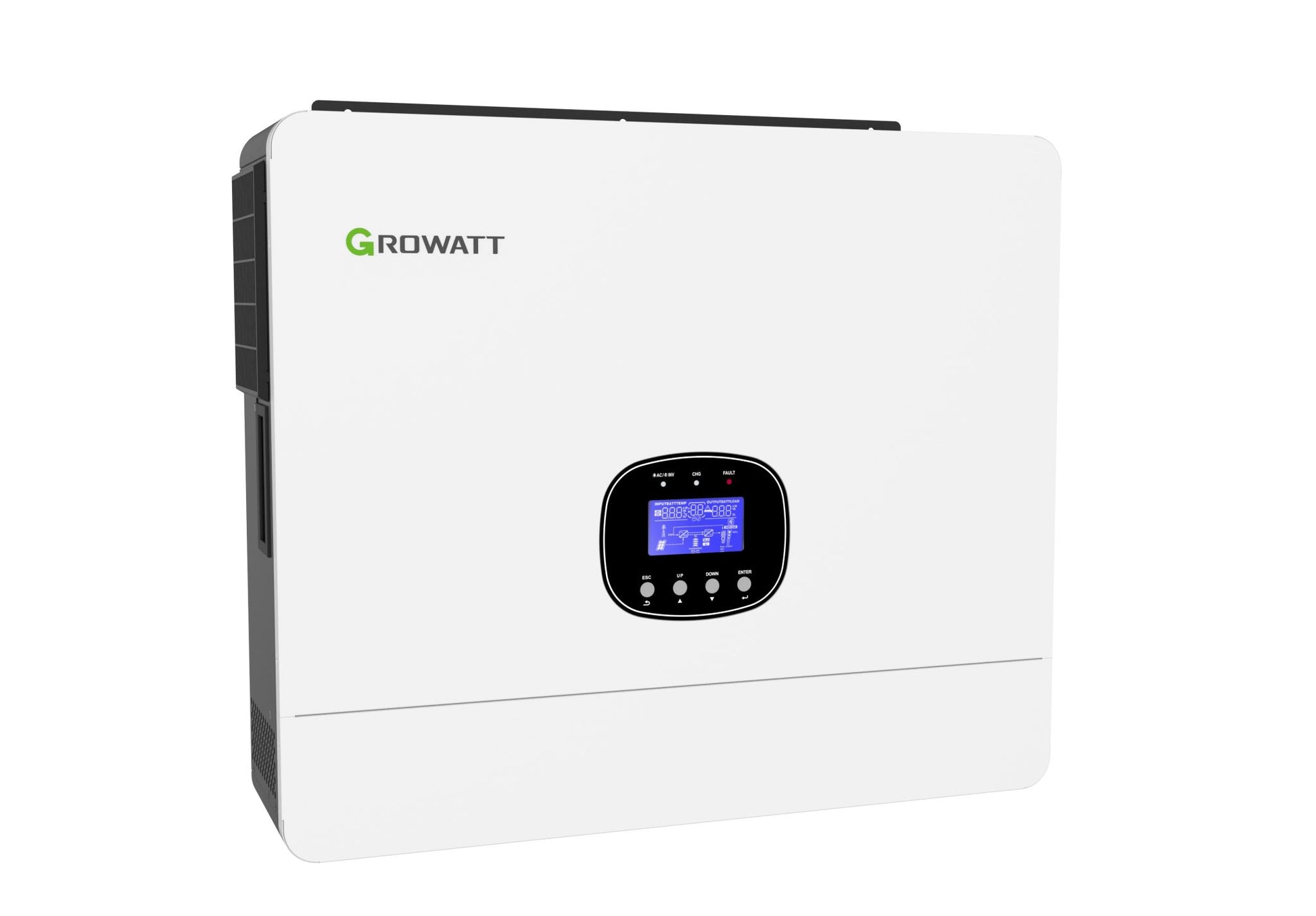

Growatt 12KW Off-Grid Hybrid Solar Inverter 48V SPE12000ES

This off-grid hybrid solar inverter charger features the combined functions of a 12KW pure sine wave inverter, MPPT solar charger controller and AC battery charger to offer an uninterruptible power supply

SPE12000ESFeatures:

• Electronically and Galvanically Isolated
• Customisable charging parameters to work with any battery type
• Unity Power Factor
• Dual MPPT Trackers for up to 15000W of solar conversion (7500W per MPPT Tracker)
• Dual AC Outputs for Smart Load Management
• Higher solar voltage input
• Load power balancing function between solar and AC input source
• Can work without battery when used as a single unit
• Up to 9 units can be paralleled together on a single phase or three phase set up
• Grid and generator compatible as an option for back up if solar production is low
• Built in Automatic Transfer Switch to change between generator or grid supply
• Programmable Grounding Relay
• +131,000 hours design life
• Wifi monitoring Included
• Passive Cooling With Intelligent Fan Assist

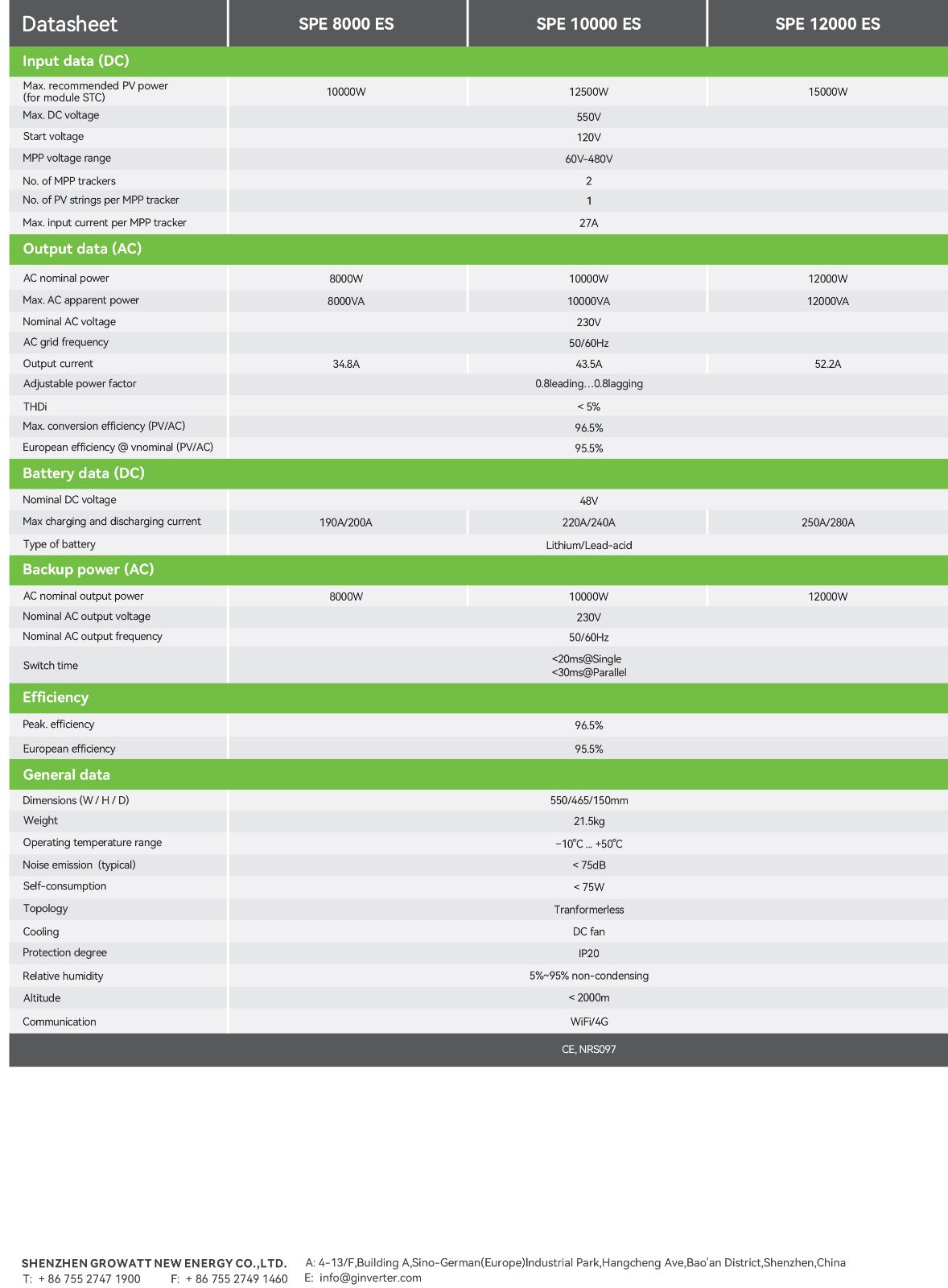

SPE12000ES Solar Inverter Specifications:

• Battery Voltage: 48VDC
• Rated Power: 12000W/12000VA
• Waveform: Pure sine wave 50Hz
• AC Output Voltage: 230 VAC
• Inverter Efficiency(Peak): 95%
• No Load Power Consumption: <75W
• Transfer Time: 20ms-UPS; 30ms-APL

AC Input:

• Voltage: 230VAC Pure Sine Wave
• Voltage Range:
• 90~280 VAC - Appliance (default)
• 170~280 VAC - UPS
• Frequency: 50 Hz
• Max AC Input Current: 70A

MPPT Solar Charger:

• Maximum PV Array Open Circuit Voltage: 550VDC
• MPPT Voltage Range: 60~480VDC
• PV Input Power: 15000W (7500W per solar input)
• Max DC Input current per string: 27A
• Solar Conversion Efficiency: up to 98%
• Max Solar Charge Current: 250A
• Max Solar+AC Charge Current: 250A

Dimensions (mm): 550H*465W*150D
Net Weight: 21.5 kg
Gross Weight: 25.5 kg

Humidity: 5% to 95% RH(Non-condensing)
IP Rating: IP20 - Suitable for use indoor
Operating Temperature: -10°C-55°C
Altitude: <2000m
Warranty: 5 years

Compliance: IEC62109-1, IEC62109-2, AS/NZS5033, AS/NZS4059
