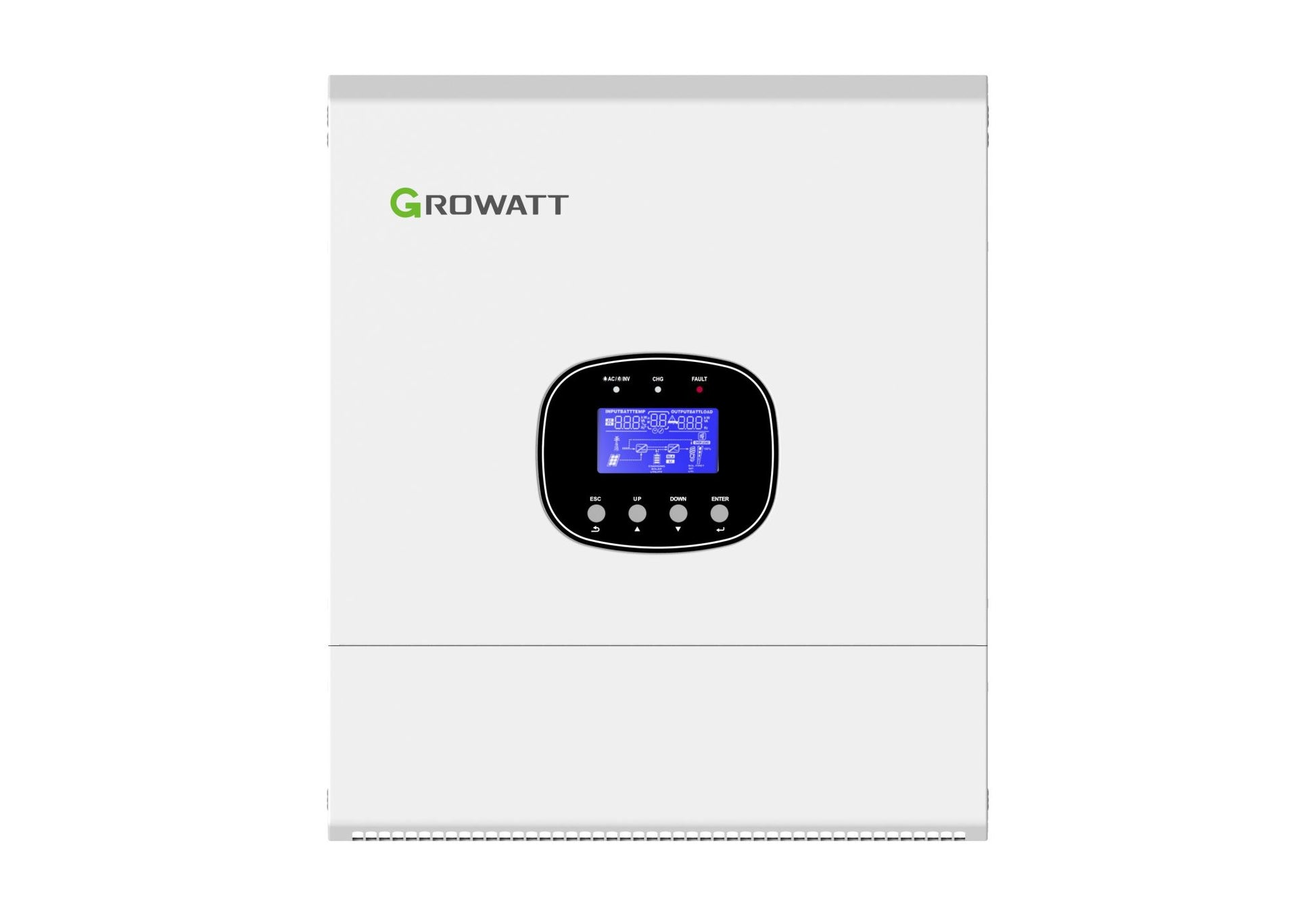

Growatt 3.5KW Off-Grid Hybrid Solar Inverter 24V SPE3500THVM-G2

This off-grid hybrid solar inverter charger features the combined functions of a 3.5KW pure sine wave inverter, MPPT solar charger controller and AC battery charger to offer an uninterruptible power supply

SPE3500TLHVM-G2 Features:

• Electronically and Galvanically Isolated
• Customisable charging parameters to work with any battery type
• Unity Power Factor
• Up to 4000W Solar Conversion
• Higher solar voltage input
• Load power balancing function between solar and AC input source
• Can work without battery when used as a single unit
• Grid and generator compatible as an option for back up if solar production is low
• +131,000 hours design life
• Wifi monitoring included
• Passive Cooling With Intelligent Fan Assist

SPE3500TLHVM-G2 Solar Inverter Specifications:

Battery Voltage: 48VDC

• Rated Power: 3500W/7000VA
• Waveform: Pure sine wave 50Hz
• AC Output Voltage: 230 VAC
• Inverter Efficiency(Peak): 95.5%
• No Load Power Consumption: <20W
• Transfer Time: 10ms-UPS; 20ms-APL

AC Input:

• Voltage: 230VAC Pure Sine Wave
• Voltage Range:
• 90~280 VAC - Appliance (default)
• 170~280 VAC - UPS
• Frequency: 50 Hz
• Max AC Input Current: 40A

MPPT Solar Charger:

• Maximum PV Array Open Circuit Voltage: 500VDC
• MPPT Voltage Range: 120~450VDC
• PV Input Power: 4000W
• Max DC Input current: 22A
• Solar Conversion Efficiency: up to 98%
• Max Solar Charge Current: 160A
• Max Solar+AC Charge Current: 160A

Dimensions (mm): 370H*430W*125D
Net Weight: 10.5 kg
Gross Weight: 13 kg

Humidity: 5% to 95% RH(Non-condensing)
IP Rating: IP20 - Suitable for use indoor
Operating Temperature: -10°C-55°C
Altitude: <2000m
Warranty: 5 years

Compliance: IEC62109-1, IEC62109-2, AS/NZS5033, AS/NZS4059
