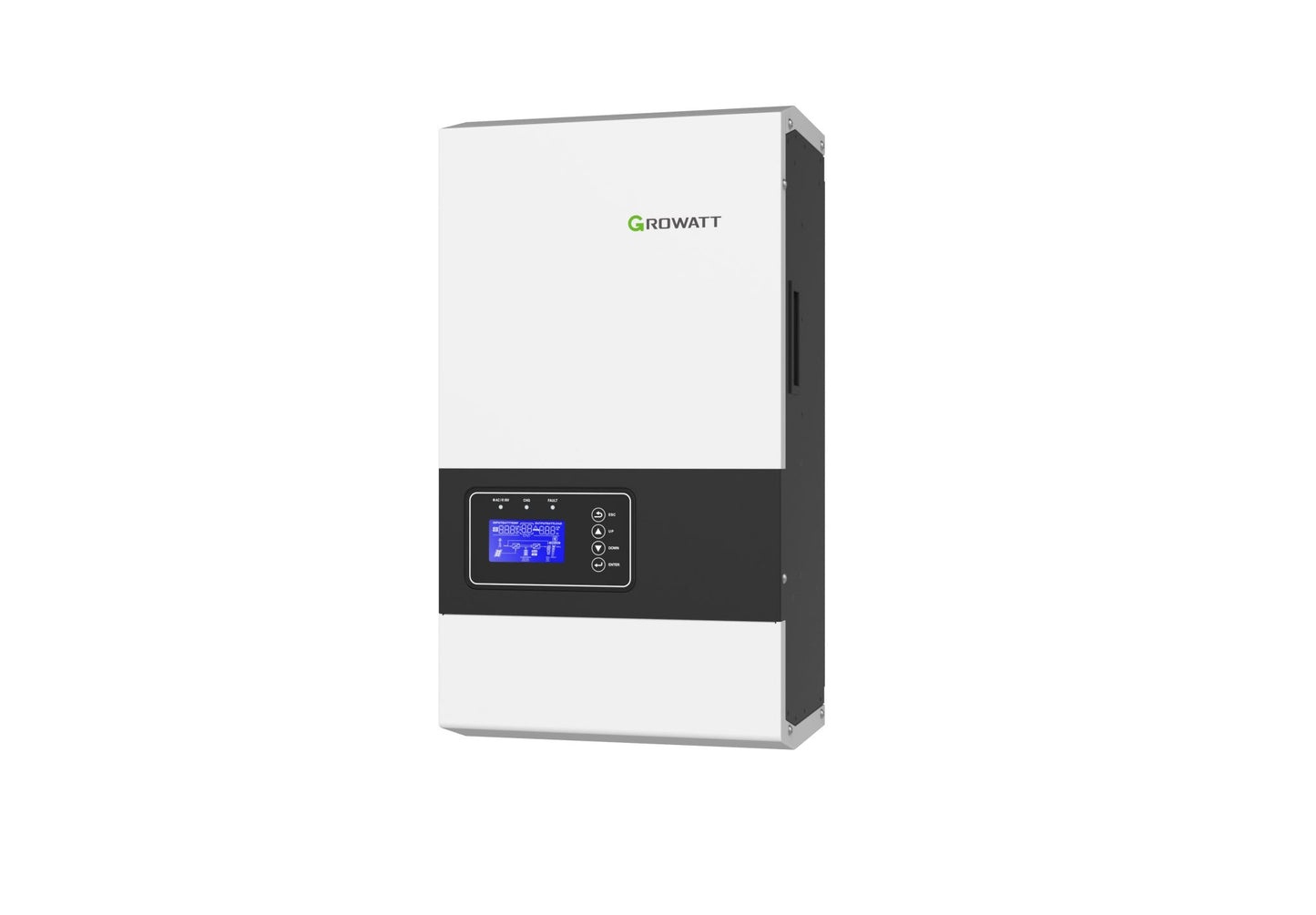

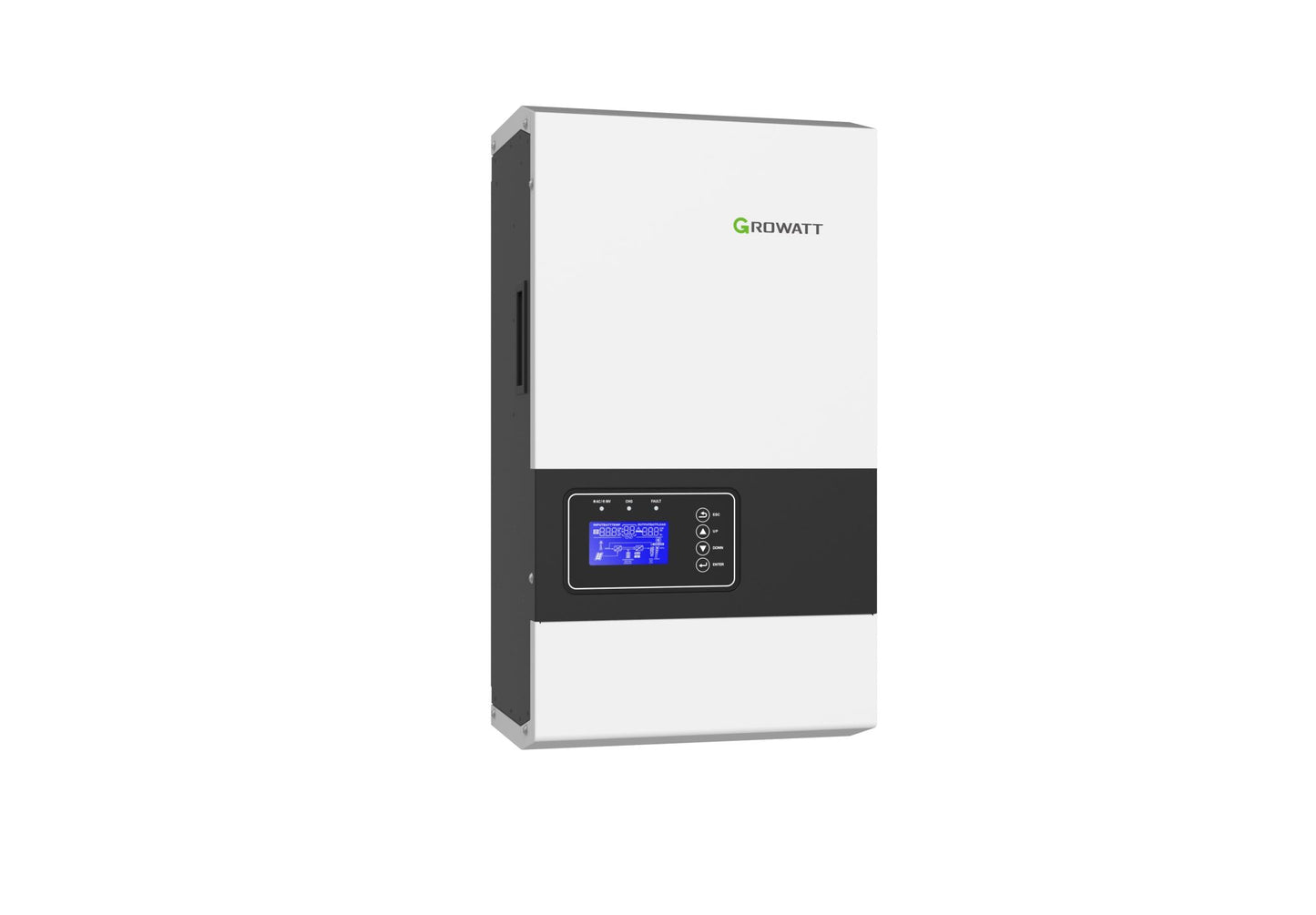

Growatt 3kW Low-Frequency Off-Grid Solar Inverter SPF3000THVMG2

This Low-Fequency off-grid solar inverter/charger features the combined functions of a 3KW pure sine wave inverter, 80A MPPT solar charger and 60A AC battery charger to offer an uninterruptible power supply.

SPF3000THVM-G2 Features:

• Electronically and Galvanically Isolated
• Customisable charging parameters to work with any battery type
• Unity Power Factor
• Load power balancing function between solar and AC input source
• Can work without battery when used as a single unit
• Up to 4500W of Solar Conversion
• Up to six units can be paralleled together for more energy output on a single phase or three phase set up
• Grid and generator compatible as an option for back up if solar production is low
• Deliver up to 6kW of energy with the combined inverter mode + AC Bypass mode
• +131,000 hours design life
• Passive Cooling With Intelligent Fan Assist
• Wifi monitoring (optional extra)

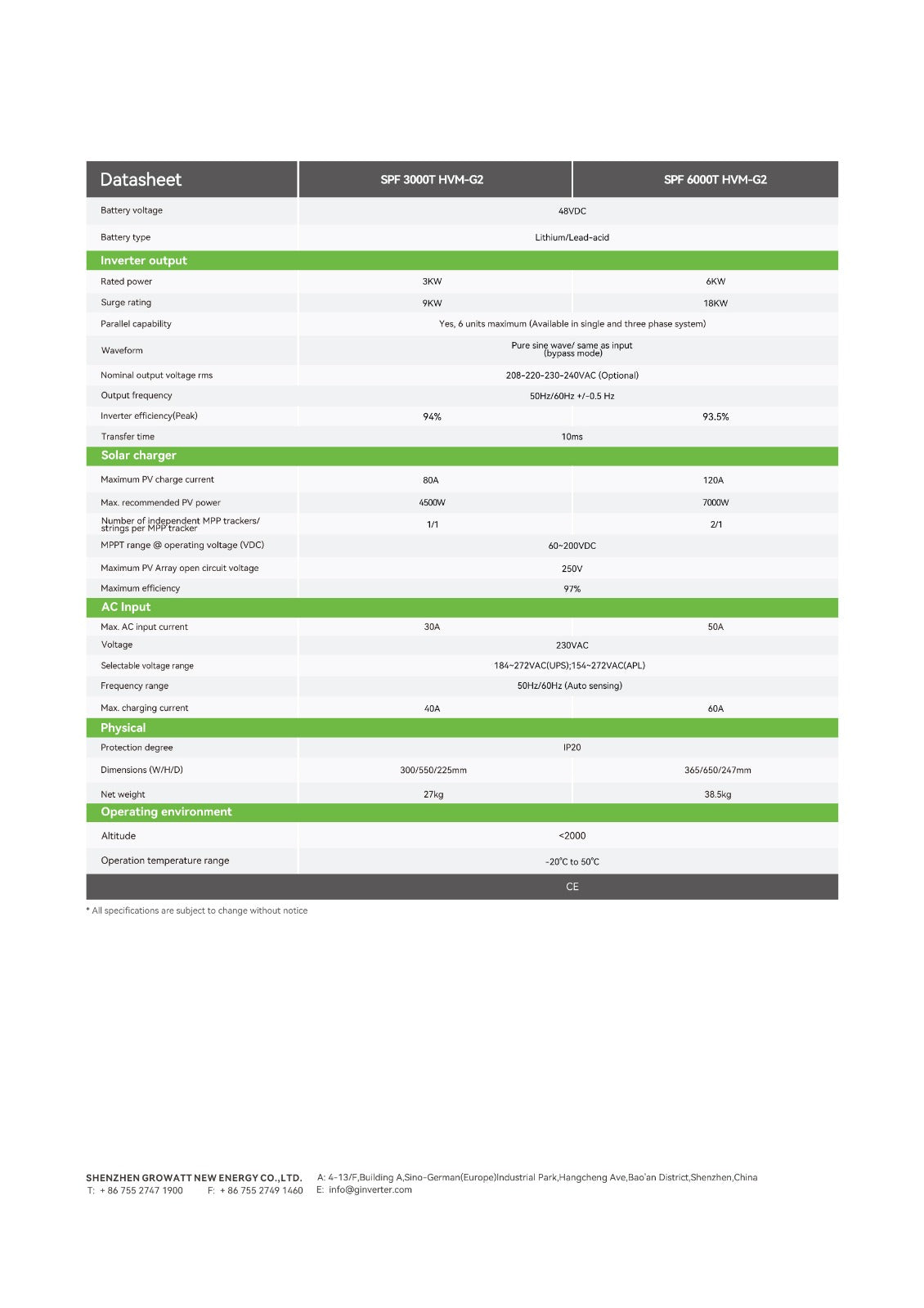

SPF3000THVM-G2 Specifications:

Inverter:

• Battery Voltage: 48VDC
• Rated Power: 3KVA/3000W
• Surge Rating: 9kW
• Waveform: Pure sine wave
• AC Output Voltage: 230VAC
• Inverter Efficiency(Peak) :94%
• No Load Power Consumption: <20W
• Power Saving Mode Consumption: <7W
• Transfer Time: 10ms-UPS; 20ms-APL

AC Input:

• Voltage:230VAC
• Selectable Voltage Range:
• 154-272 VAC - Appliance (default)
• 184-272 VAC - UPS
• Frequency: 50 Hz

MPPT Solar Charger:

• Max Solar Open Circuit Voltage: 250 VDC
• MPPT Voltage Range: 60-250 VDC
• PV Input Power: 4500W
• Solar Conversion Efficiency: up to 98%
• Max Solar Charge Current: 80 A
• Max AC Charge Current: 60 A
• Max Charge Current: 140 A

Dimensions and Weight:
Inverter Dimensions (mm): 550mm x 300mm x 225mm
Weight: 27.4 kgs

Humidity: 5% to 95% Relative Humidity (Non-condensing)
IP20: Suitable for indoor use
Operating Temperature: 0°C-55°C
Warranty: 5 Years

Compliance: IEC62109-1, IEC62109-2, AS/NZS5033, AS/NZS4059
