Growatt 5KW Off-Grid Hybrid Solar Inverter 48V SPF5000TL

SPF5000TL Solar Inverters Features:

• 80A MPPT for 4500W of solar conversion
• Electronically and Galvanically Isolated
• Works with any battery type
• 1.0 Power Factor
• Parallel up to six units for more energy output on a single phase or three phase set up.
• Grid/Generator compatible
• Fulltime cooling fans
• Optional Wifi monitoring

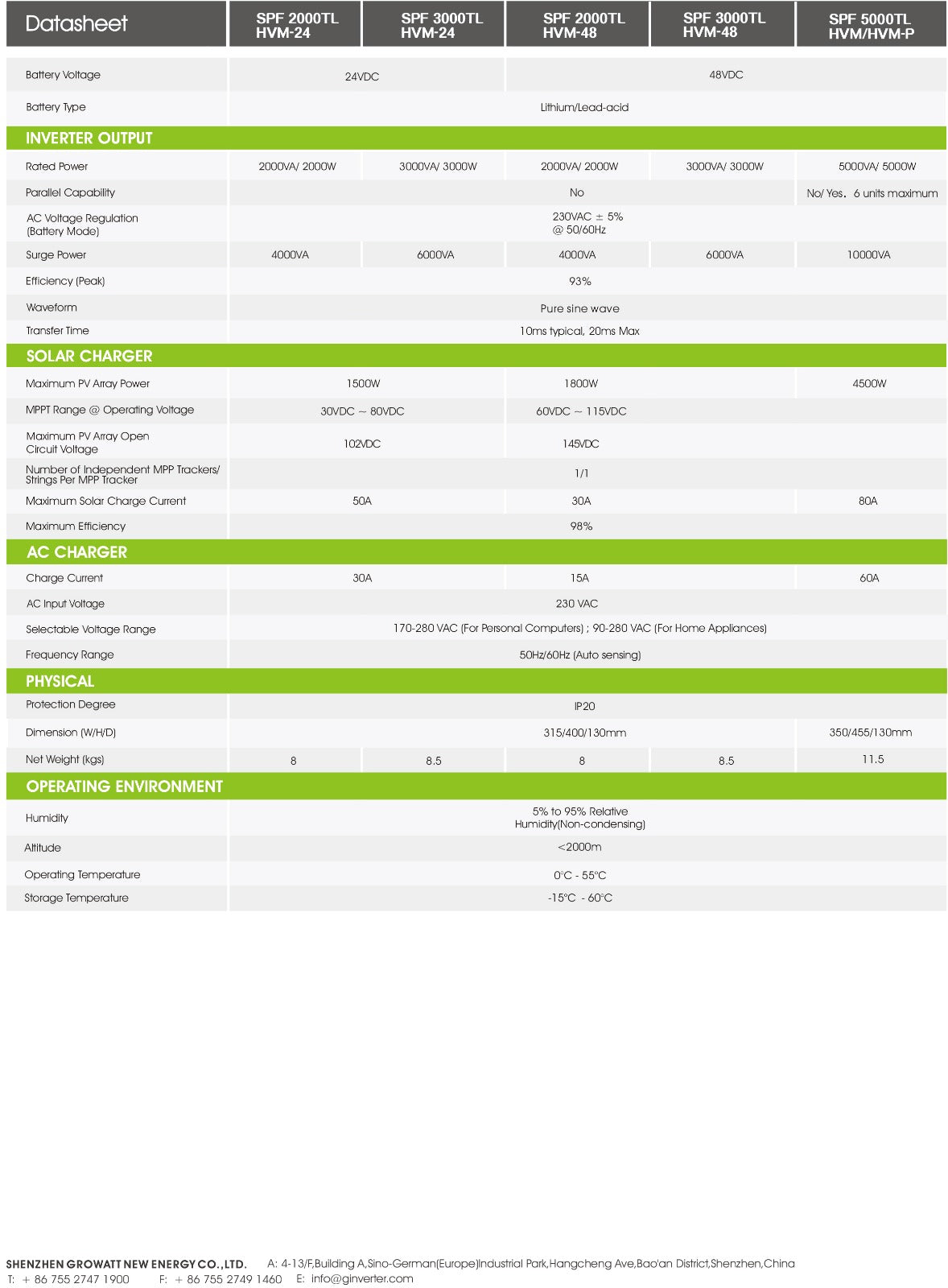

SPF5000TL Solar Inverter Specifications:

• Battery Voltage: 48VDC
• Rated Power: 5KVA/5000W - Unity Power Factor
• Surge Power: 10KVA for 5 seconds
• Waveform: Pure sine wave 50Hz
• AC Voltage Regulation: 208 VAC~240 VAC
• Inverter Efficiency(Peak): 93%
• No Load Power Consumption: <50W
• Power Saving Mode Consumption: <15W
• Transfer Time: 10ms-UPS; 20ms-APL
• Surge Protection: Built-in

AC Input:

• Voltage: 230VAC Pure Sine Wave
• Voltage Range:
• 90~280 VAC - Appliance (default)
• 170~280 VAC - UPS
• Frequency: 50 Hz

MPPT Solar Charger:

• Maximum PV Array Open Circuit Voltage: 145VDC
• MPPT Voltage Range: 60~115VDC
• PV Input Power: 4500W
• Conversion Efficiency: up to 98%
• Max Solar Charge Current: 80A
• Max Solar+AC Charge Current: 140A

Dimensions (mm): 350W*455H*130D
Weight: 11.5 kgs

Humidity: 5% to 95% RH(Non-condensing)
Operating Temperature: 0°C-55°C
Warranty: 2 years

Our solar inverters comply with the following standards: IEC62109-1, IEC62109-2,, AS/NZS5033, AS/NZS4059
