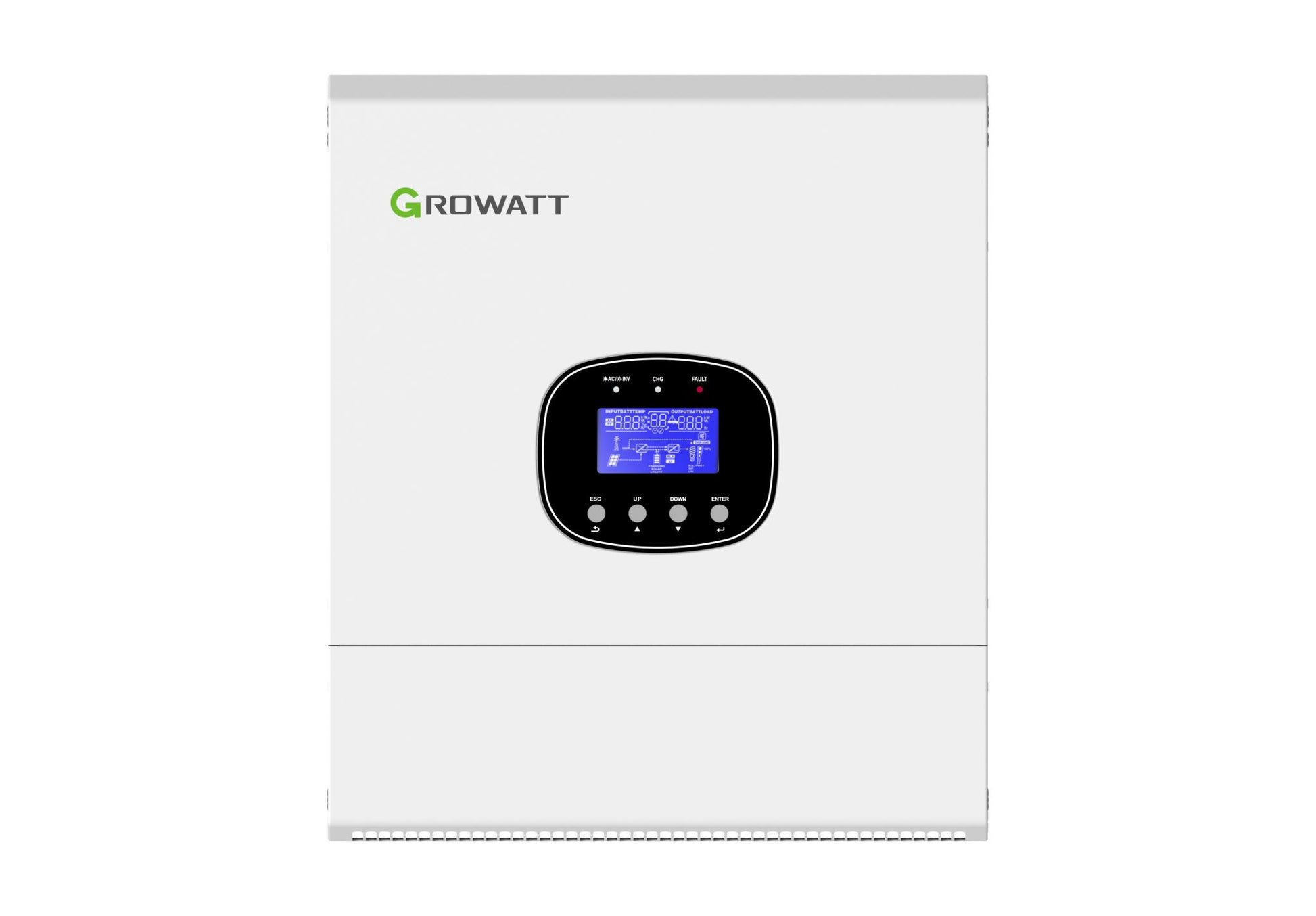

Growatt 6KW Off-Grid Hybrid Solar Inverter 48V SPE6000TLHVM-G2

This off-grid hybrid solar inverter charger features the combined functions of a 6KW pure sine wave inverter, MPPT solar charger controller and AC battery charger to offer an uninterruptible power supply

SPE6000TLHVM-G2 Features:

• Electronically and Galvanically Isolated
• Customisable charging parameters to work with any battery type
• Unity Power Factor
• Dual MPPT Trackers for up to 8000W of solar conversion (4000W per MPPT Tracker)
• Dual AC Outputs for Smart Load Management
• Higher solar voltage input
• Load power balancing function between solar and AC input source
• Can work without battery when used as a single unit
• Up to 9 units can be paralleled together on a single phase or three phase set up
• Grid and generator compatible as an option for back up if solar production is low
• Built in Automatic Transfer Switch to change between generator or grid supply
• Programmable Grounding Relay
• +131,000 hours design life
• Wifi monitoring included
• Passive Cooling With Intelligent Fan Assist

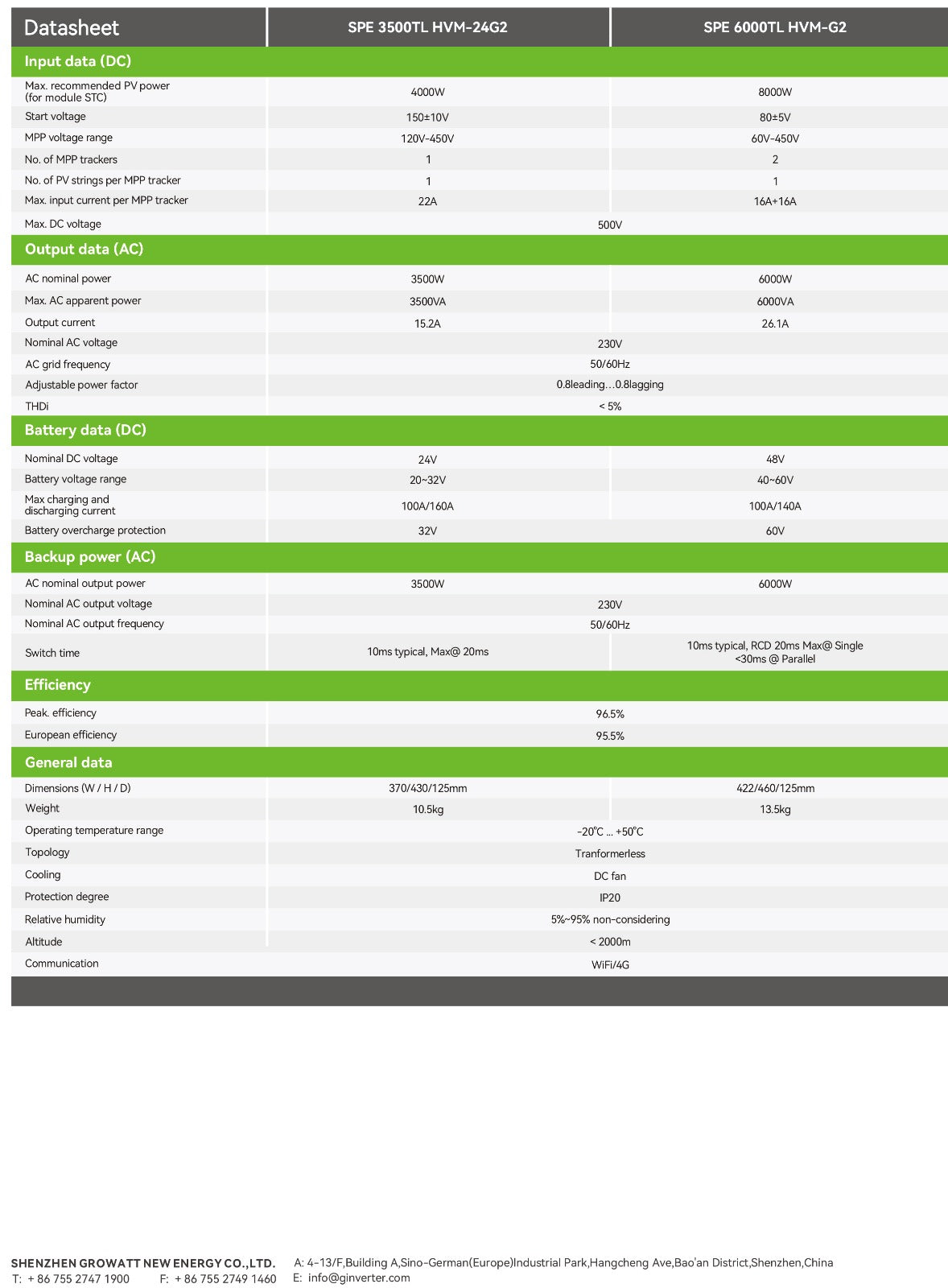

SPE6000TLHVM-G2 Solar Inverter Specifications:

• Battery Voltage: 48VDC
• Rated Power: 6000W/6000VA
• Waveform: Pure sine wave 50Hz
• AC Output Voltage: 230 VAC
• Inverter Efficiency(Peak): 95.5%
• No Load Power Consumption: <35W
• Transfer Time: 10ms-UPS; 20ms-APL

AC Input:

• Voltage: 230VAC Pure Sine Wave
• Voltage Range:
• 90~280 VAC - Appliance (default)
• 170~280 VAC - UPS
• Frequency: 50 Hz
• Max AC Input Current: 40A

MPPT Solar Charger:

• Maximum PV Array Open Circuit Voltage: 500VDC
• MPPT Voltage Range: 60~450VDC
• PV Input Power: 8000W (4000W per solar input)
• Max DC Input current per string: 16A
• Solar Conversion Efficiency: up to 98%
• Max Solar Charge Current: 100A
• Max Solar+AC Charge Current: 140A

Dimensions (mm): 457H*422W*125D
Net Weight: 13 kg
Gross Weight: 15 kg

Humidity: 5% to 95% RH(Non-condensing)
IP Rating: IP20 - Suitable for use indoor
Operating Temperature: -10°C-55°C
Altitude: <2000m
Warranty: 5 years

Compliance: IEC62109-1, IEC62109-2, AS/NZS5033, AS/NZS4059
