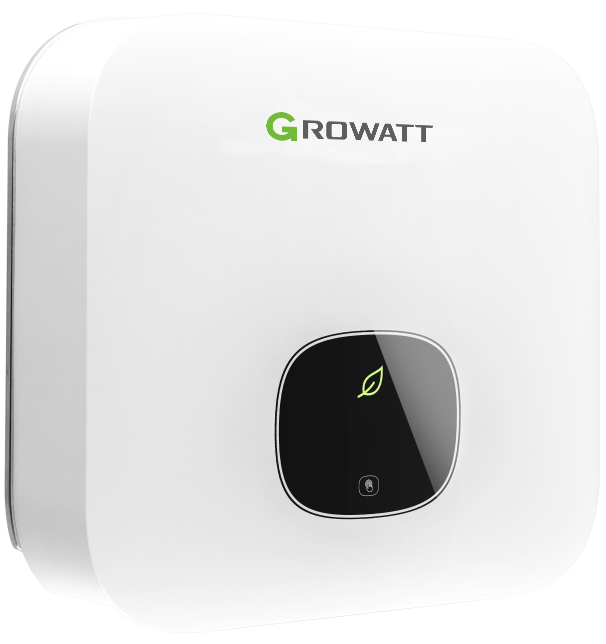

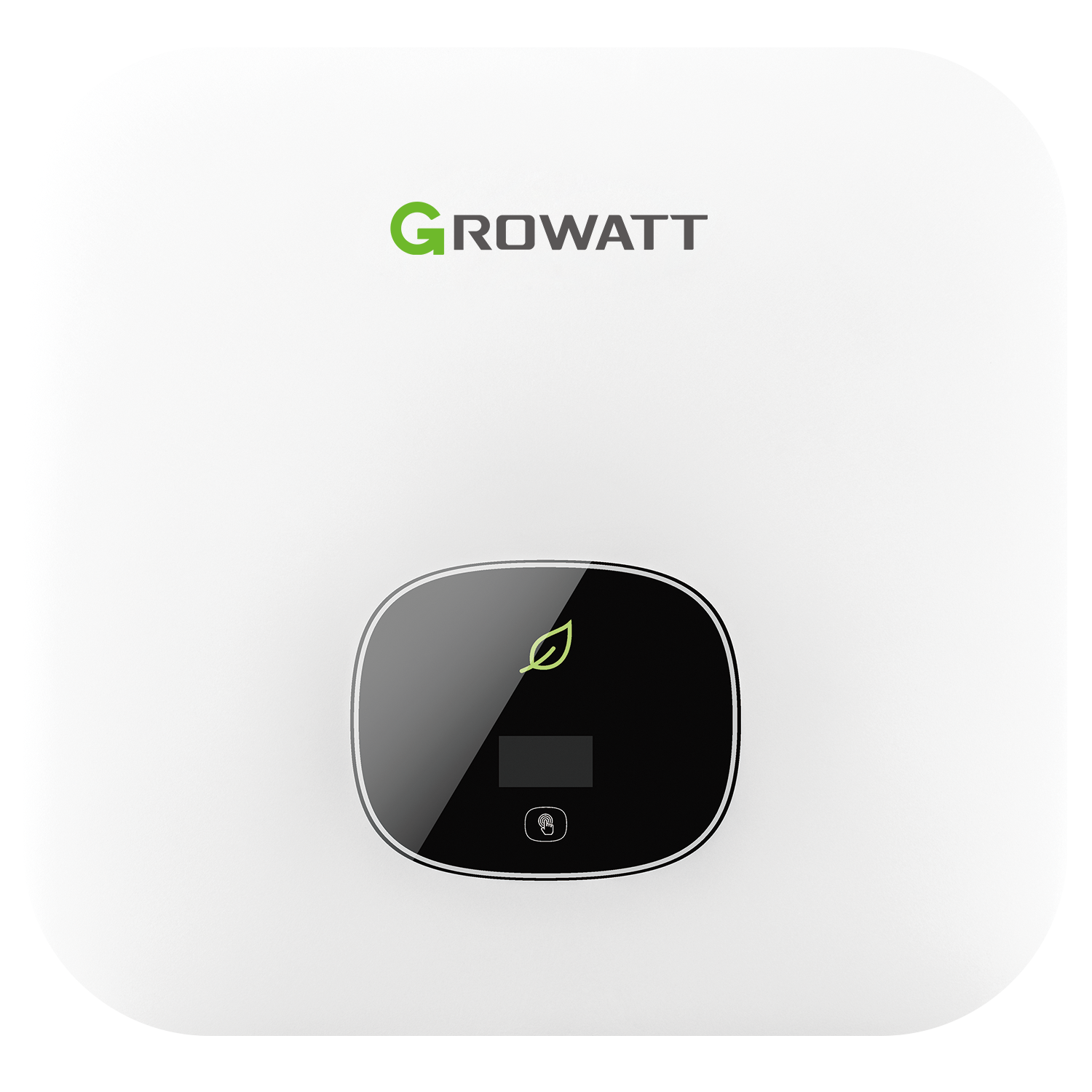

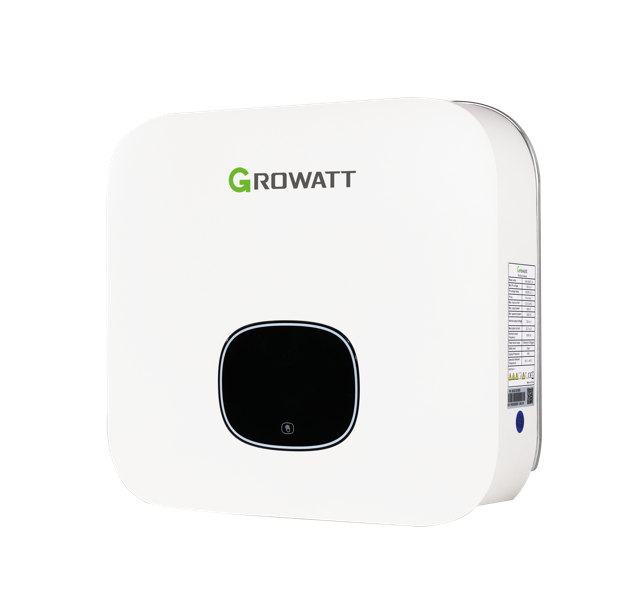

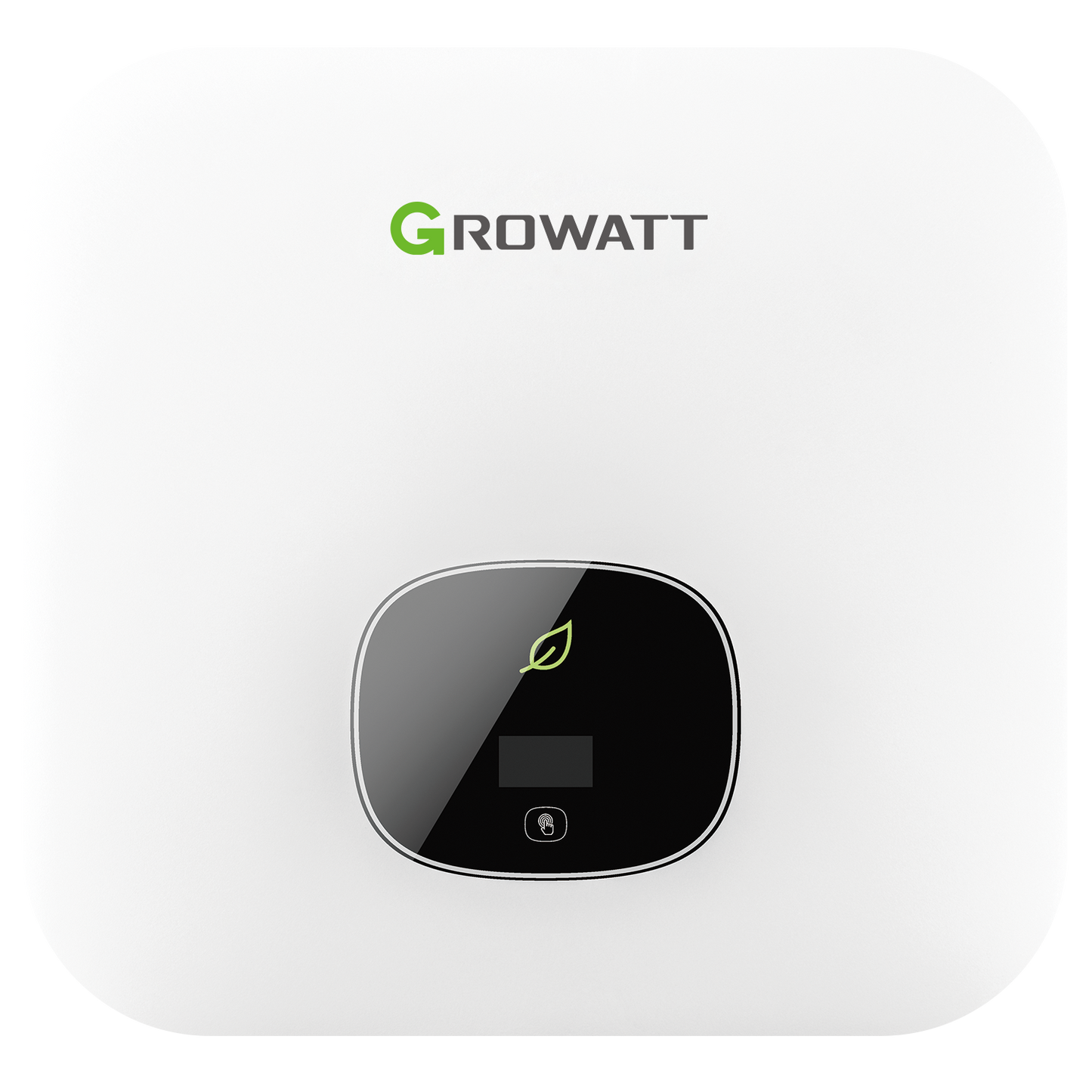

Growatt 6KW On-Grid Hybrid Solar Inverter MIN6000TL-XH2 IP66

MIN6000TL-XH2 Features:

• 98.4% Efficiency
• Dual MPPT Trackers
• Type 2 SPD on DC Side
• String Current up to 16A
• Battery Ready, Future Proof
• 24hr Self Consumption Monitoring

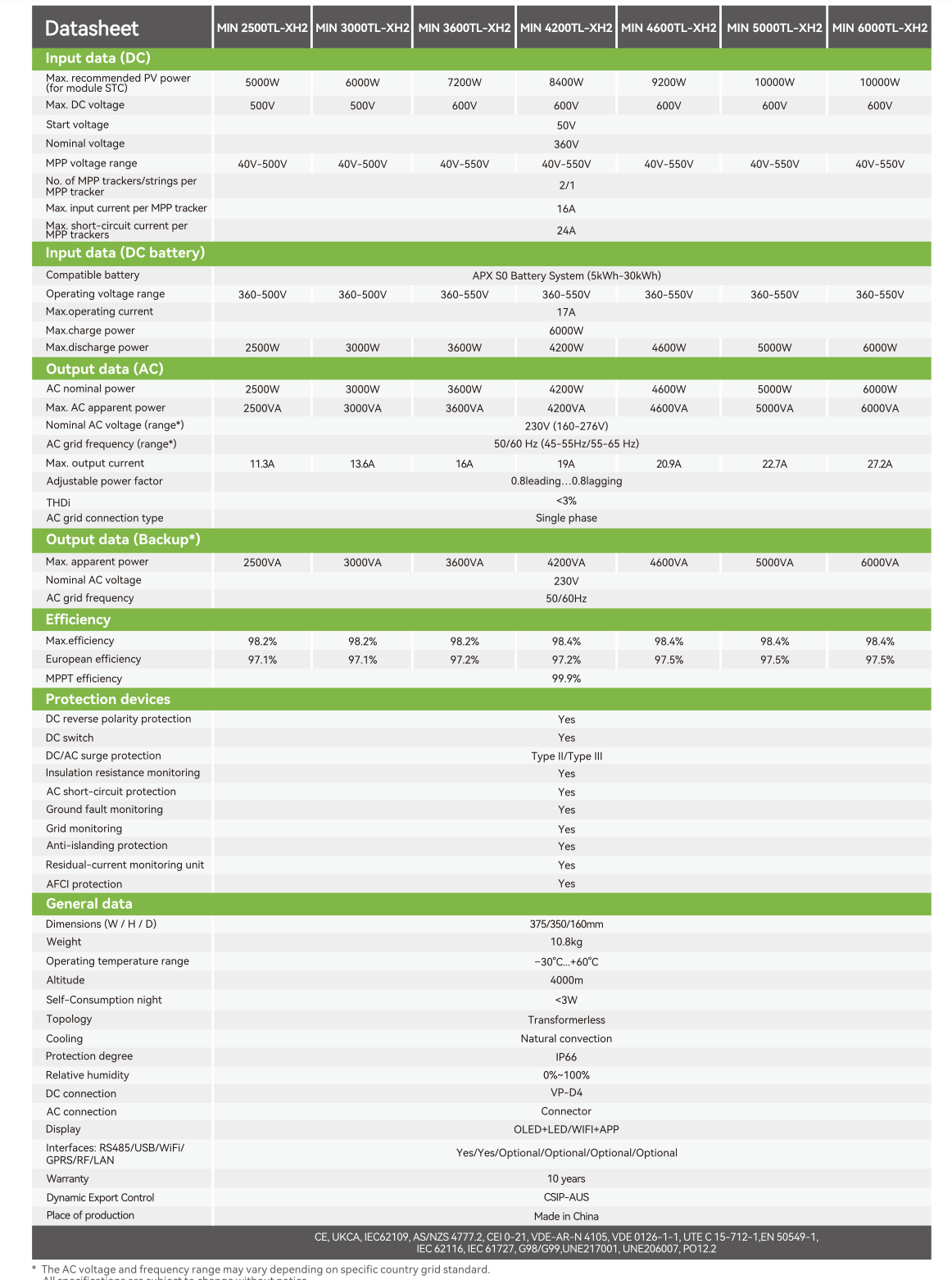

MIN6000TL-XH2 On-Grid Solar Inverter Specifications:

Solar Input Data (DC)

• Max Recommended PV Power: 10000W
• Max DC Voltage: 600V
• Start Voltage: 50V
• Nominal Voltage: 360V
• MPP Voltage Range: 40V-550V
• No. of MPP Trackers: 2
• Strings per MPP Tracker: 1
• Max input current per MPP Tracker: 16A
• Max Short Circuit Current per MPP Tracker: 24A

Input Data ( DC Battery):

• Compatible Battery: APX SO Battery System (5kWh-30kWh)
• Battery Voltage: 360-550VDC
• Max Operating Current: 17A
• Max Charge Power: 6000W
• Max Discharge Power: 6000W

Output Data (AC):

• AC Nominal Power: 6000W
• Max AC Apparent Power: 6000VA
• Nominal AC Voltage Range: 230V (160-276V)
• AC Grid Frequency: 50Hz (45-55Hz)
• Max Output Current: 27.2A
• Adjustable Power Factor: 0.8 Leading, 0.8 Lagging
• THDi: <3%
• AC Grid Connection Type: Single Phase

Output Data (Backup)

• Max Apparent Power: 6000VA
• Nominal AC Voltage: 230V
• AC Grid Frequency: 50Hz

Efficiency:

• Max Efficiency: 98.4%
• MPPT Efficiency: 99.9%

Protection Devices:

• DC Reverse Polarity Protection: Yes
• DC Switch: Yes
• DC/AC Surge Protection: Type2/Type3
• Insulation Resistance Monitoring: Yes
• AC Short-Circuit Protection: Yes
• Ground Fault Monitoring: Yes
• Grid Monitoring: Yes
• Anti-Island Monitoring: Yes
• Residual-Current Monitoring: Yes
• GFCI: Yes

General Data:

• Dimensions (mm): 350H*375W*160D
• Weight: 10.8 kg
• Operating Temperature: -230°C - +60°C
• Altitude: <4000m
• Self Consumption: <3W
• Topology: Transformerless
• Cooling: Natural
• Protection: IP66
• Relative Humidity: 0-100%
• DC Connection: VP-D4
• AC Connection: Connector
• Display: OLED+LED/WIFI+APP
• Interfaces: RS485/USB
• Warranty: 10 years
• Dynamic Export Control: CSIP-AUS

Compliance: IEC62109-1, IEC62109-2, AS/NZS4777.2
