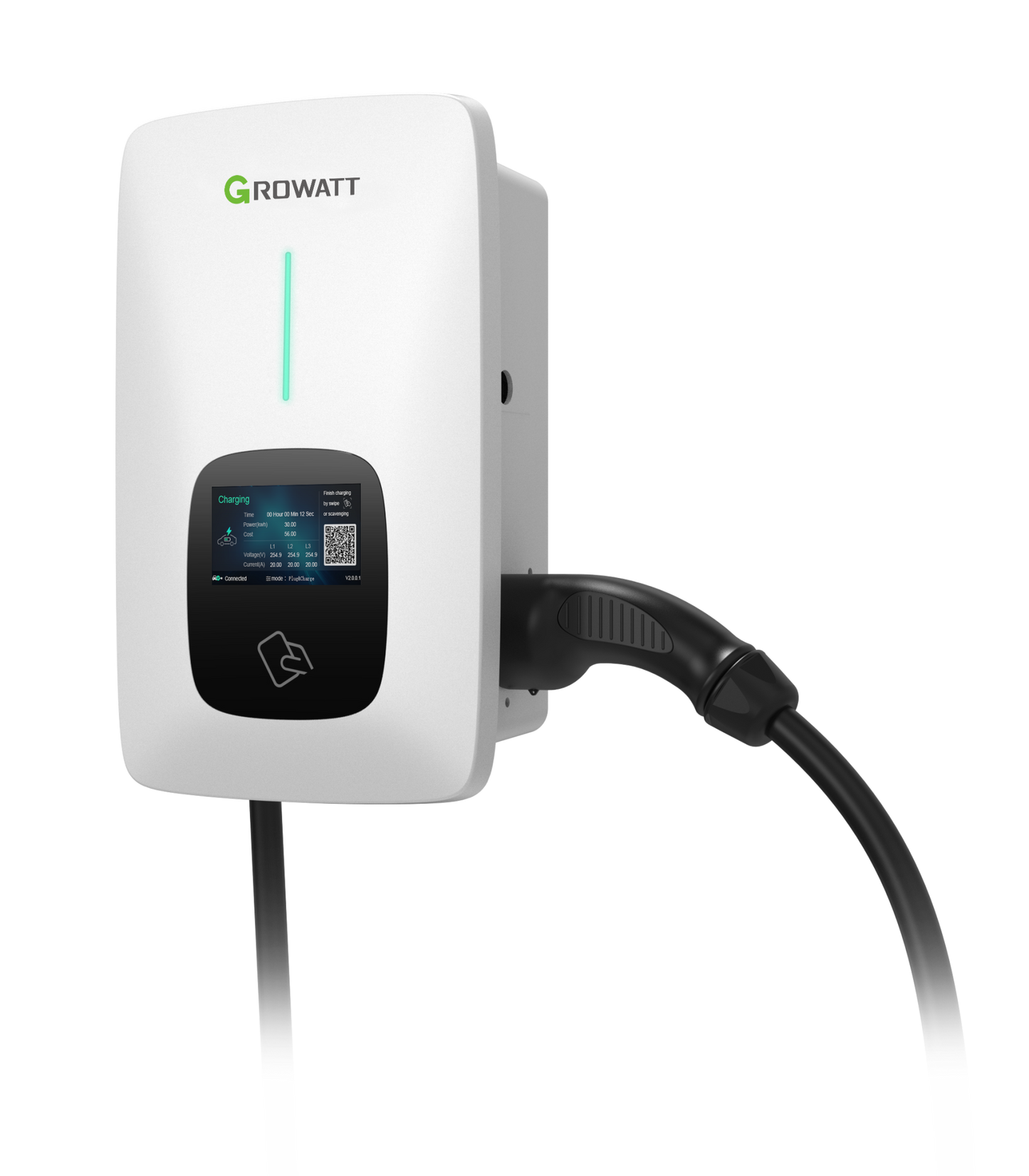

Growatt 7kW Type 2 EV Charger THOR07AS-P-V1

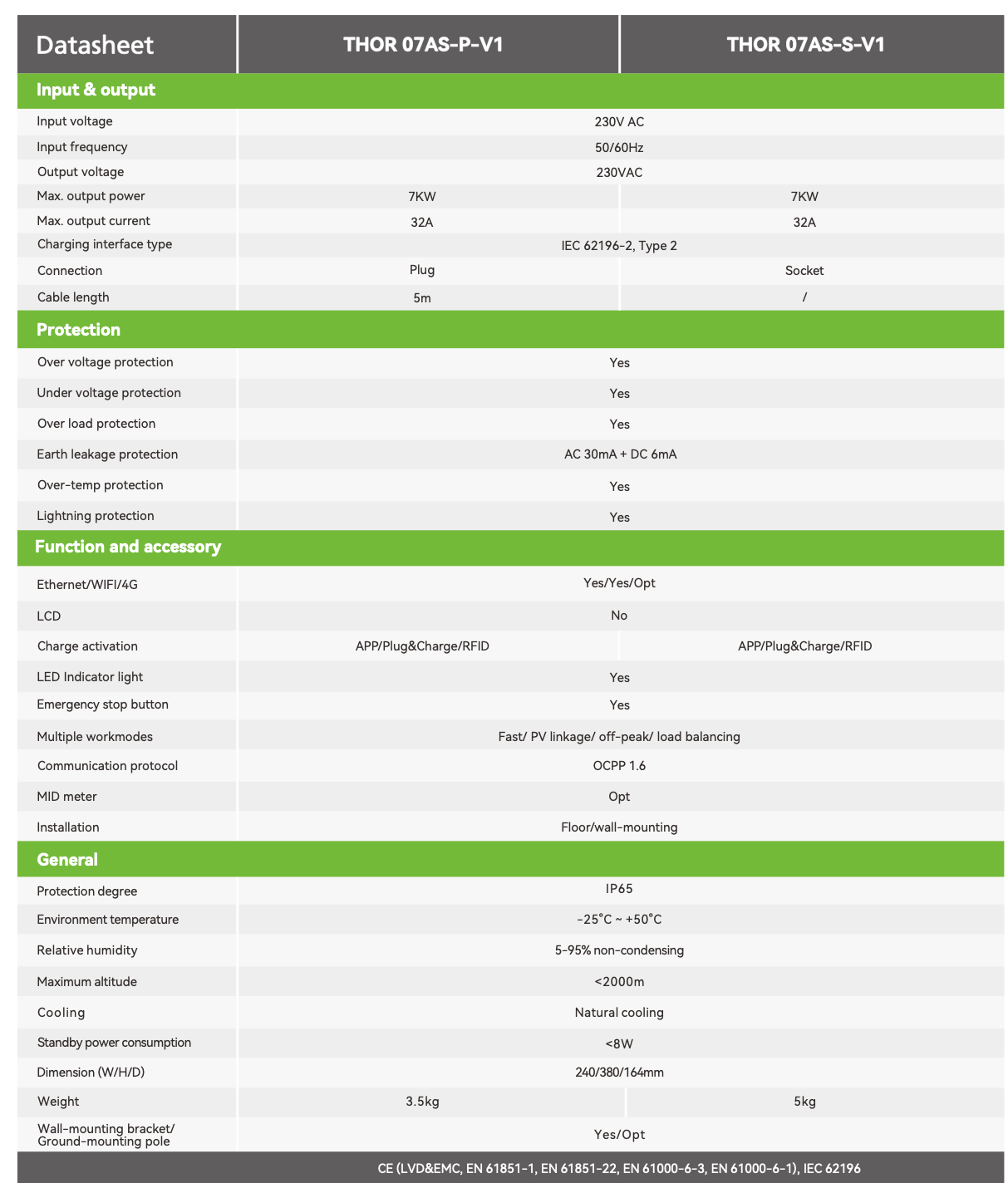

THOR07AS-P-V1 Specifications:

• Input Voltage: 230VAC
• Input Frequency: 50/60Hz
• Output Voltage: 230VAC
• Max Output Power: 7kW
• Max Output Current: 32A
• Charging Interface Type: Type-2, IEC62196-2
• Connection: Plug
• Cable Length: 5m

Protection

• Over Voltage Protection: Yes
• Under Voltage Protection: Yes
• Over Load Protection: Yes
• Earth Leakage Protection: AC 30mA + DC 6mA
• Over-temp Protection: Yes
• Lightning Protection: Yes

Function and Accessory

• Wifi: Yes
• LCD: No
• Charge Activation: App/Plug&Charge/RFID
• Led Indicator Light: Yes
• Emergency Stop Button: Yes
• Multiple Work Modes: Fast/PV Linkage/Off-Peak/Load Balancing
• Communication Protocol: OCPP 1.6
• MID Meter: Optional
• Installation: Wall Mount

General

• Protection Degree: IP65
• Environment Temperature: -25C - +50C
• Relative Humidity: 5-95% non-condensing
• Maximum Altitude: <2000m
• Cooling: Natural Cooling
• Standby Power Consumption: <8W
• Dimensions (W/H/D): 240/380/164mm
• Weight: 3.5kgs
• Warranty: 3 Years

Certification: IEC61851, IEC61000, IEC62196
