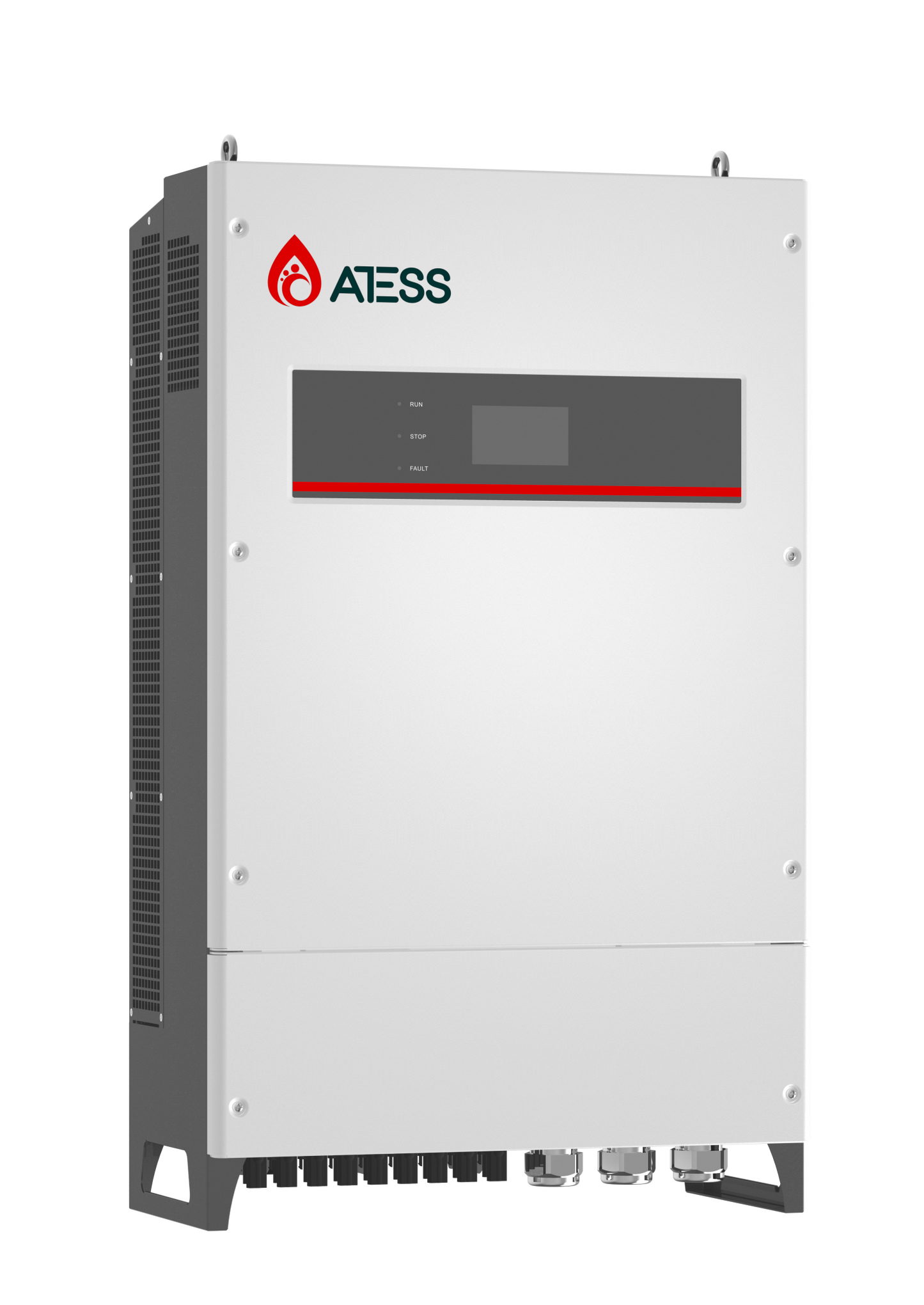

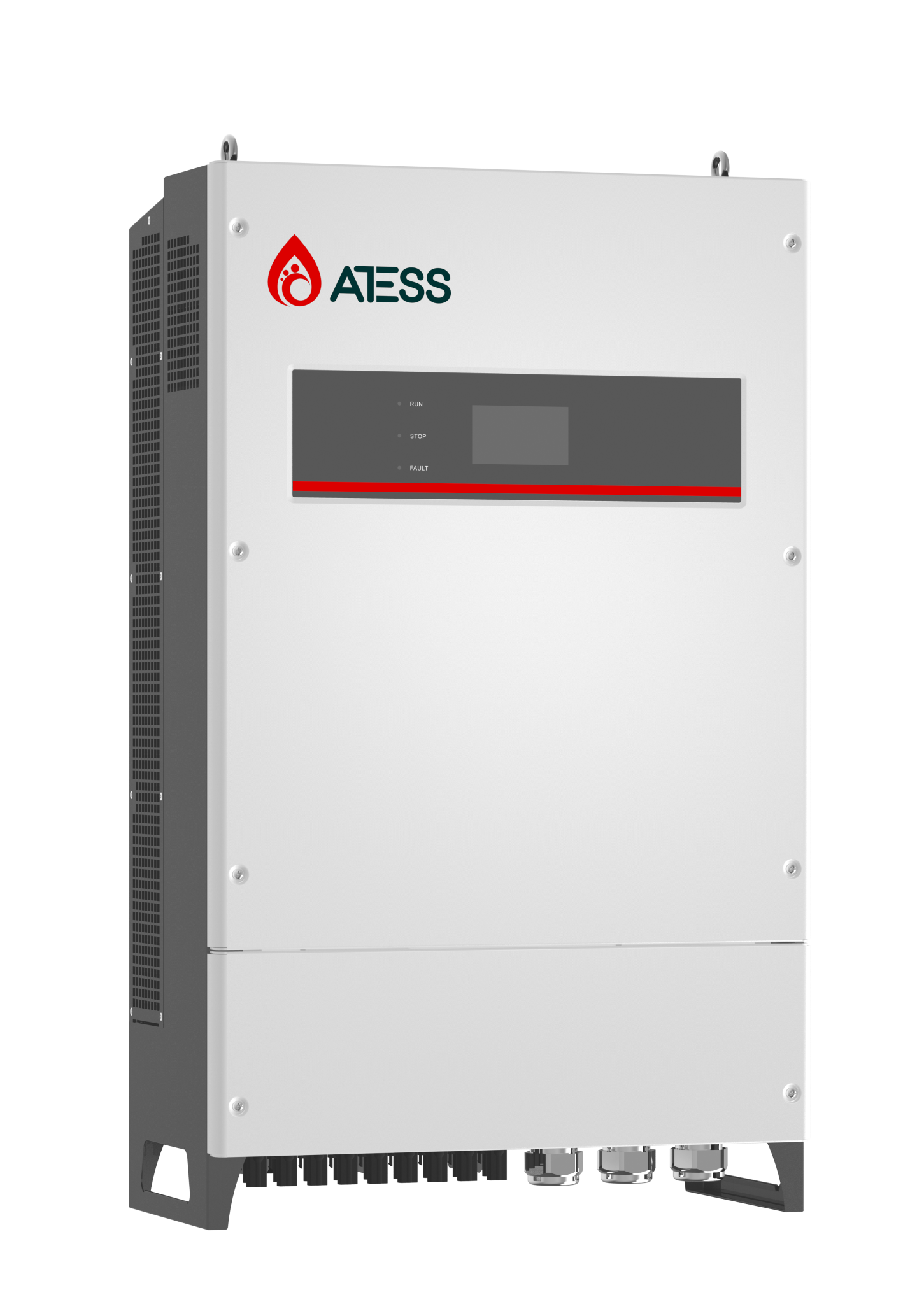

HPS50000TL ATESS 3Phase On/Off Grid Hybrid Solar Inverter 50kW

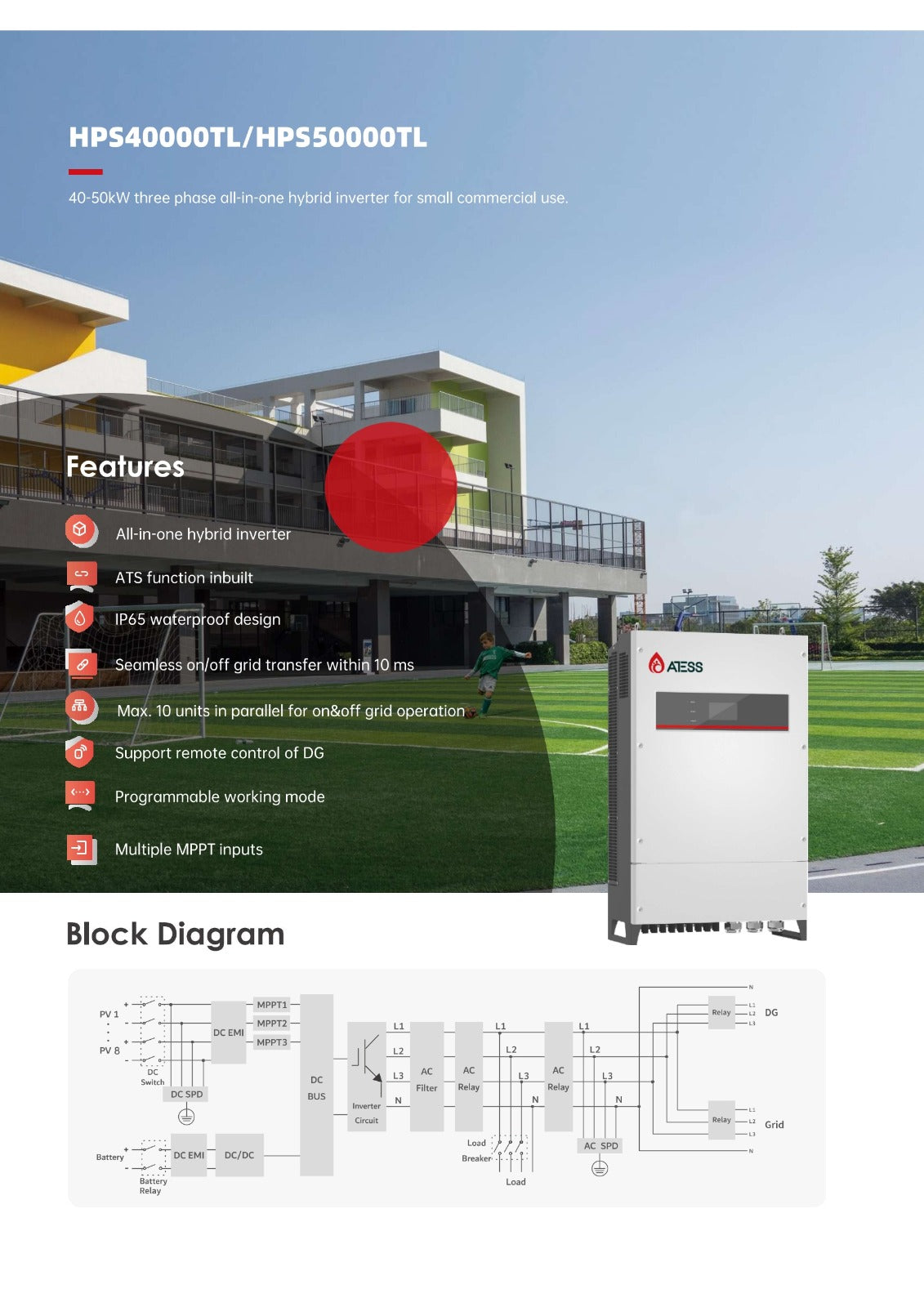

ATESS 50kW On/Off Grid Inverter Features:

• All-in-one Hybrid Inverter
• ATS function built-in
• IP65 waterproof design
• Seamless On/Off grid transfer within 10ms
• Max. 10 Units in parallel for on & off grid operation
• Support remote control of DG
• Programmable working mode
• Multiple MPPT inputs

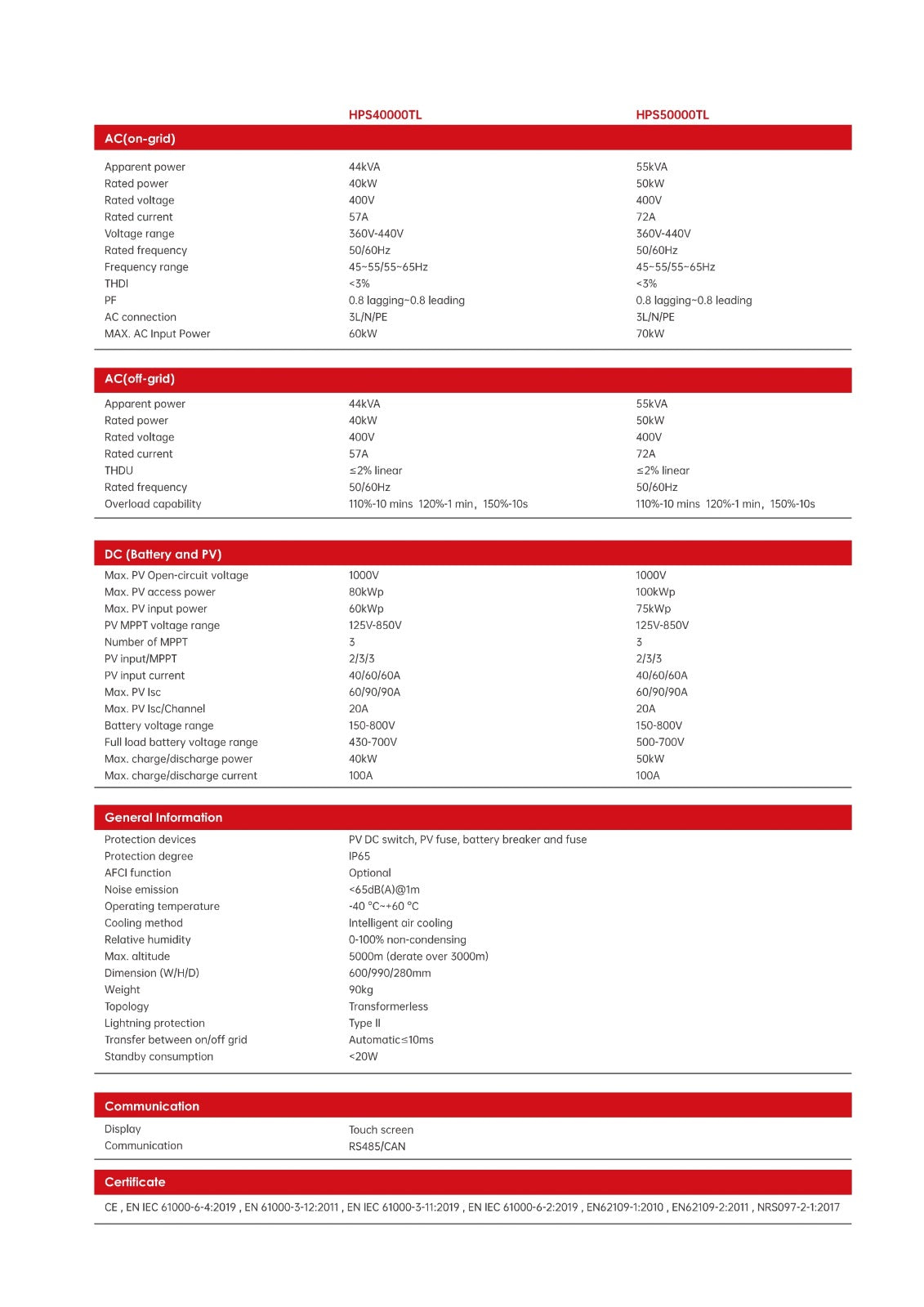

ATESS 50kW On/Off Grid Inverter Specifications:

AC(On-grid)

• Apparent Power: 55kVA
• Rated Power: 50kW
• Rated Voltage: 400V
• Rated Current: 72A
• Voltage Range: 360V-440V
• Rated Frequency: 50/60Hz
• Frequency Range: 45-55/55-65Hz
• THDI: <3%
• PF: 0.8 lagging - 0.8 leading
• AC Connection: 3L/N/E (3Phase)
• Max AC Input Power: 70kW

AC(Off-grid)

• Apparent Power: 55kVA
• Rated Power: 50kW
• Rated Voltage: 400V
• Rated Current: 72A
• THDU: <2% linear
• Rated Frequency: 50/60Hz
• Overload Capability: 110%-10mins, 120%-1min, 150%-10s

DC(Battery and PV)

• Max. PV Open Circuit Voltage: 1000V
• Max, PV Access Power: 100kWp
• Max. PV Input Power: 75kWp
• PV MPPT Voltage Range: 125V-880V
• Number Of MPPT: 3
• PV Input/MPPT: 2/3/3
• PV Input Current: 40A/60A/60A
• Max PV ISC: 60A/90A/90A
• Max PV ISC/Channel: 20A
• Battery Voltage Range: 150-800V
• Full Load Battery Voltage Range: 500-700V
• Max Charge/Discharge Power: 50kW
• Max Charge/Discharge Current: 100A

General Information

• Protection Devices: PV DC Switch, PV fuse, battery breaker and fuse
• Protection Degree: IP65
• AFCI function: Optional
• Noise: <65dB@1m
• Operating Temperature: -40C - +60C
• Cooling Method: Intelligent air cooling
• Relative Humidity: 0-100% non-condensing
• Max Altitude: 5000m(derate over 3000m)
• Dimensions (W/H/D): 600/990/280mm
• Weight: 90kg
• Topology: Transformerless
• Lightning Protection: Type 2
• Transfer Between On/Off Grid: 10ms
• Standby Consumption: <20W

Communication

• Display: Touch Screen
• Comms: RS485/CAN

Warranty: 10Years

Certification:
AS4777, IEC61000, IEC62109-1/2, NRS097-2-1
