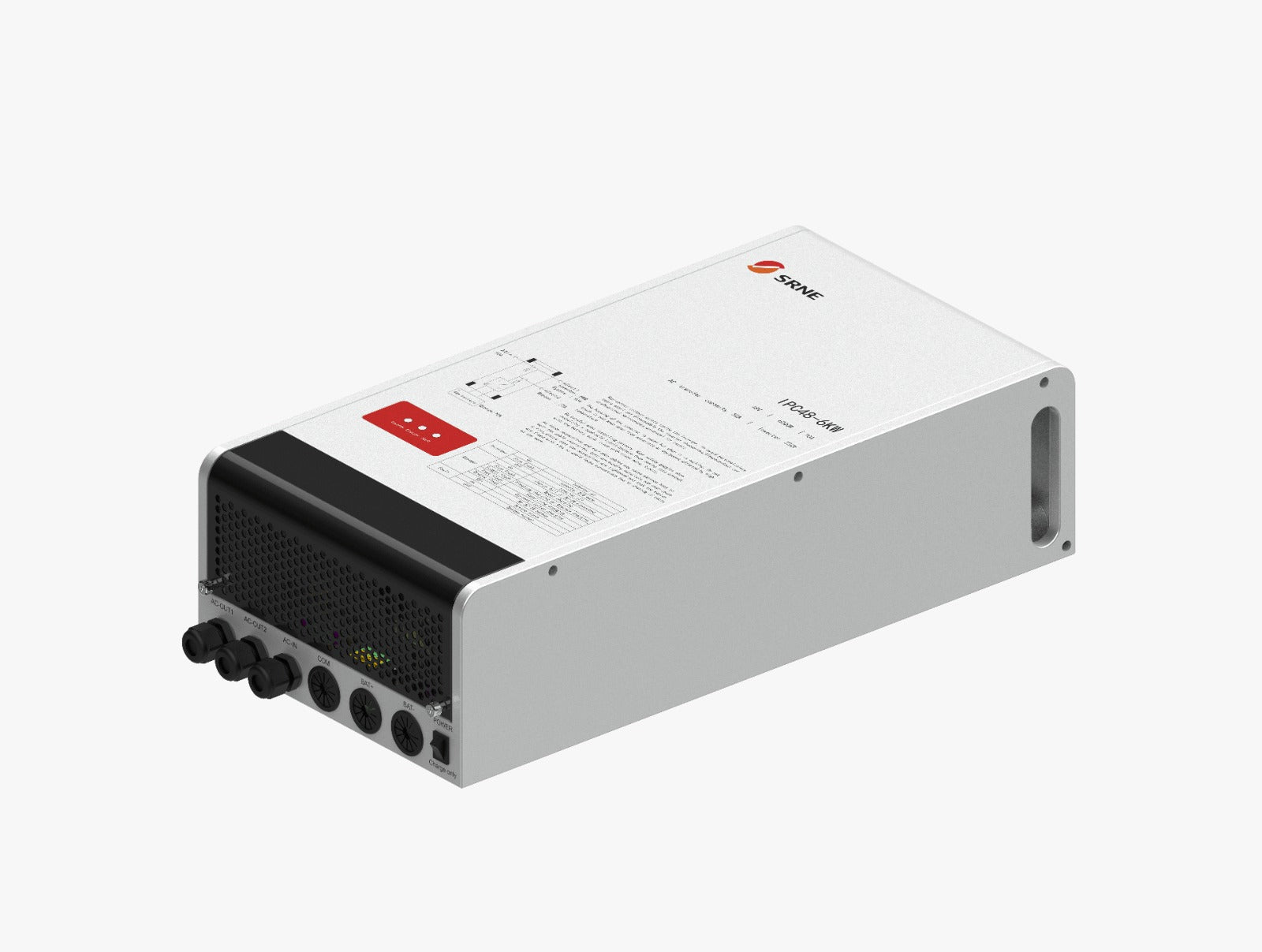

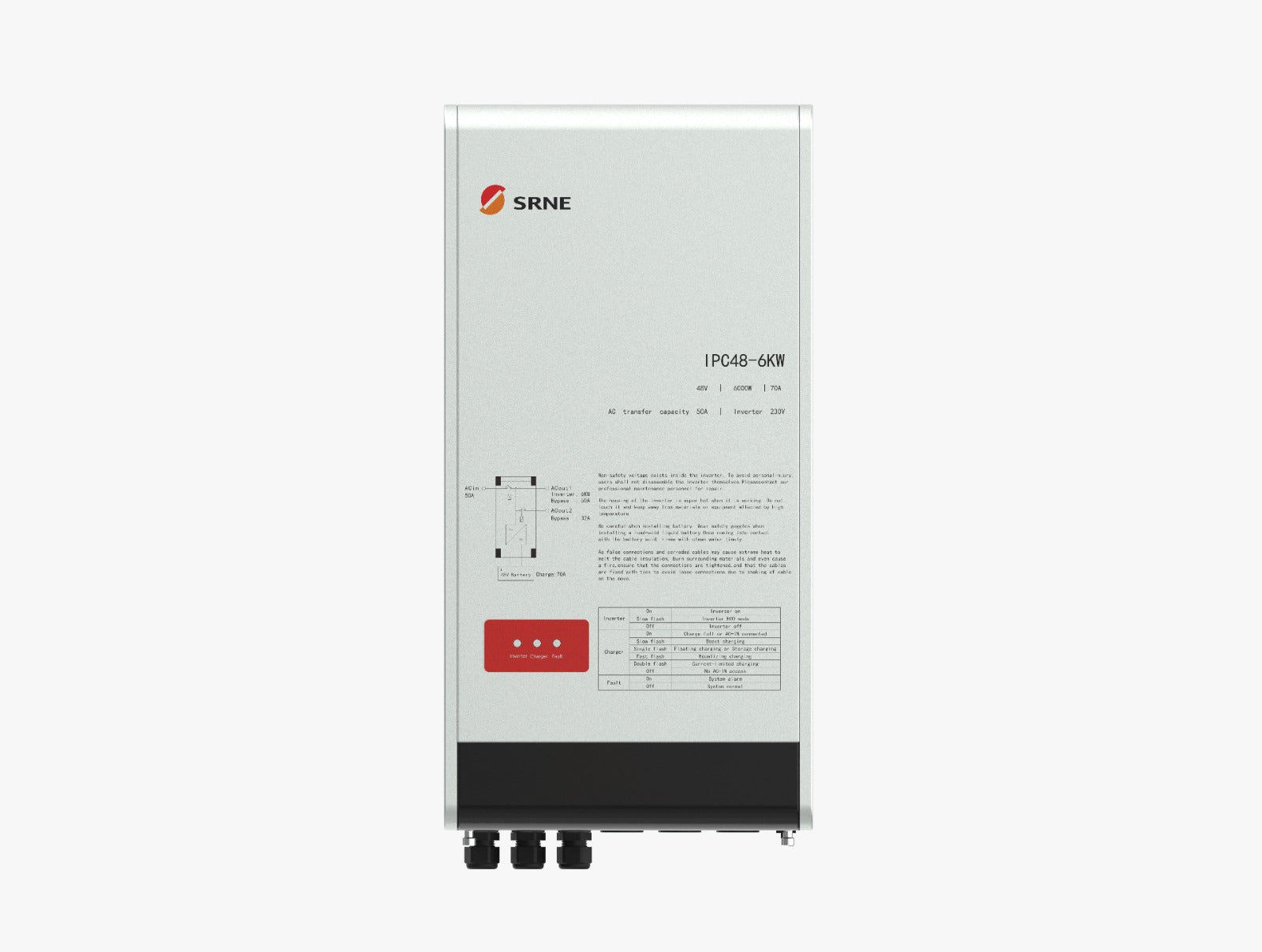

Inverter Charger 48V 6kW

This robust Low-Frequency 48V 6000W Inverter Charger features the functions of a 6kW inverter and AC Battery charger.
The programmable grounding relay allows for different installation scenarios, whether for Boat/RV/Caravan when shore/grid power or generator will be used as back up. This function also allows for it to be used in fixed installations, i.e Shed/House

The inverter has two built-in AC outputs, which can be used to separate essential and non-essential loads

Built-in Bluetooth for real-time monitoring of inverter operation and adjustments of inverter parameters through the mobile App SRNE
Compatible with WF-1 wifi module for remote monitoring
CAN function with RV-C Protocols

The customisable charging parameters allow our solar inverters to work with any battery type Li/SLD/FLD/GEL

Inverter Specifications:

Battery Voltage: 48VDC
Rated Power: 6000W - Unity Power Factor
Surge Power: 12000W for 5 seconds
Waveform: Pure sine wave 50Hz
AC Voltage Regulation: 230VAC
Rated Output Efficiency: 89%
Inverter Efficiency(Peak): 95% (30% Load)
No Load Power Consumption: <30W
Power Saving Mode Consumption: <5W
UPS Switching time: <10ms
THD: <3% (Resistive Load)
Cooling: Passive Cooling with Fan Assist

Charger Mode:
AC Input Voltage: Single Phase 180VAC-265VAC
AC Input Frequency: 45-65Hz
AC Input Rated Current: 70A

Dimensions (mm): 280W*551H*157D
Weight: 30.5kg

Humidity: 5% to 95% RH(Non-condensing)
Operating Temperature: -20°C to 55°C
Warranty: 3 years
