Fazcorp

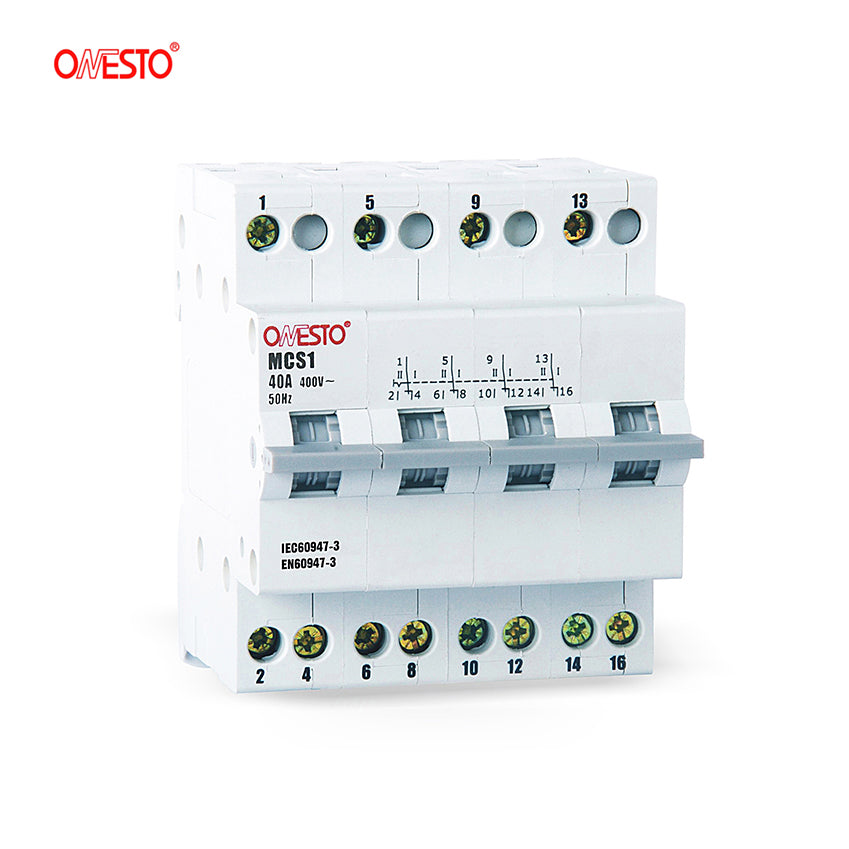

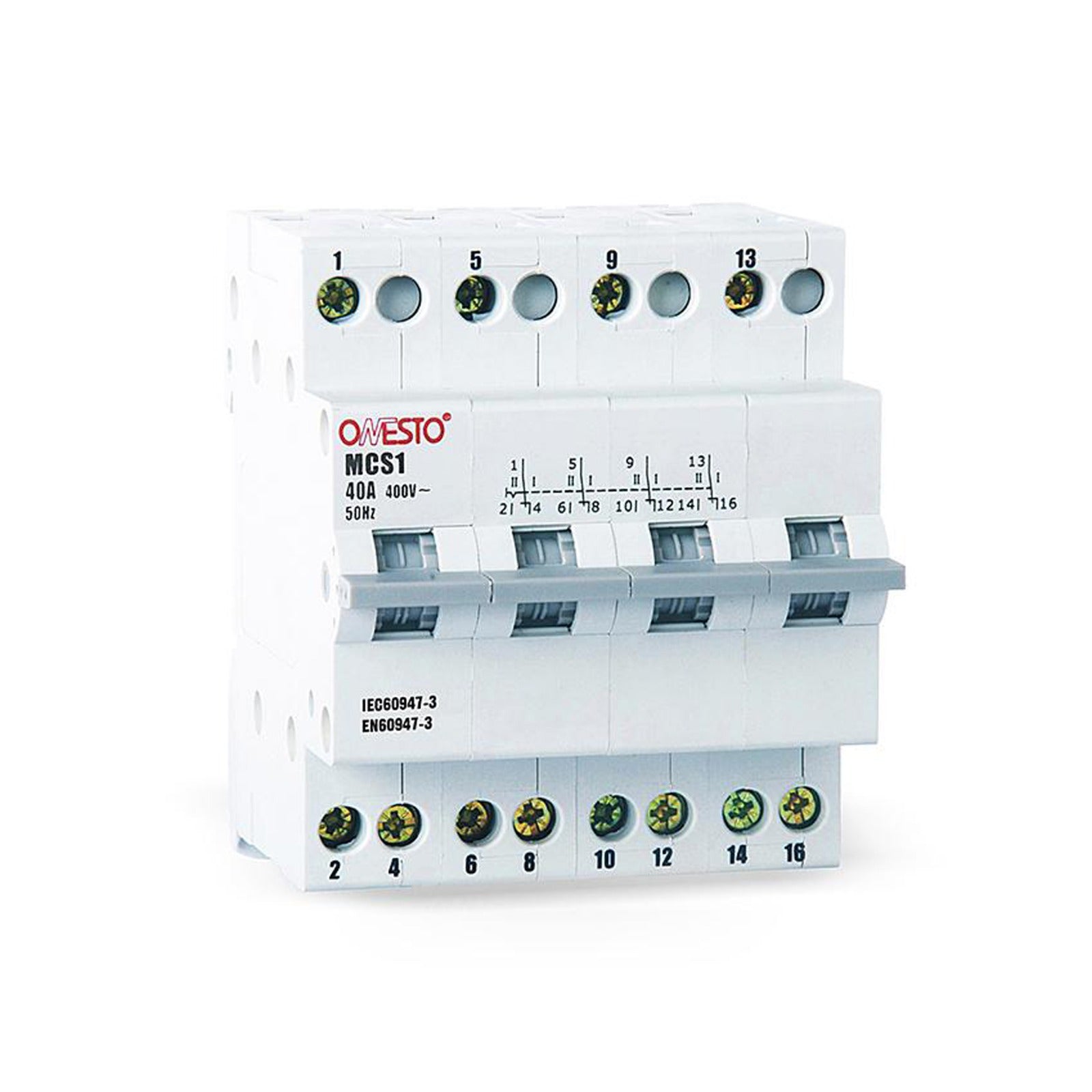

Manual Changeover Switch 40A 4-Pole
Manual Changeover Switch 40A 4-Pole
Regular price
$51.95 NZD
Regular price
Sale price
$51.95 NZD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Changeover switches are an essential device for bypassing power supply, switching to alternative power supplies, during routine maintenance/testing and controlling a two-wire auto start from a generator.
The changeover switch has 3 positions:
Position 1 uses the second poles at the bottom of the changeover switch
Middle position disconnects from all supplies
position 2 uses the first poles at the bottom of the changeover switch
Max cable size : 10mm2
Voltage Rating: 400VAC
Current Rating: 40A
Compliance: IEC60947-3
