MC4 Solar Panel Connector Pair

MC4 Solar Panel Connector Pair

Regular price $3.25 NZD
Regular price Sale price $3.25 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

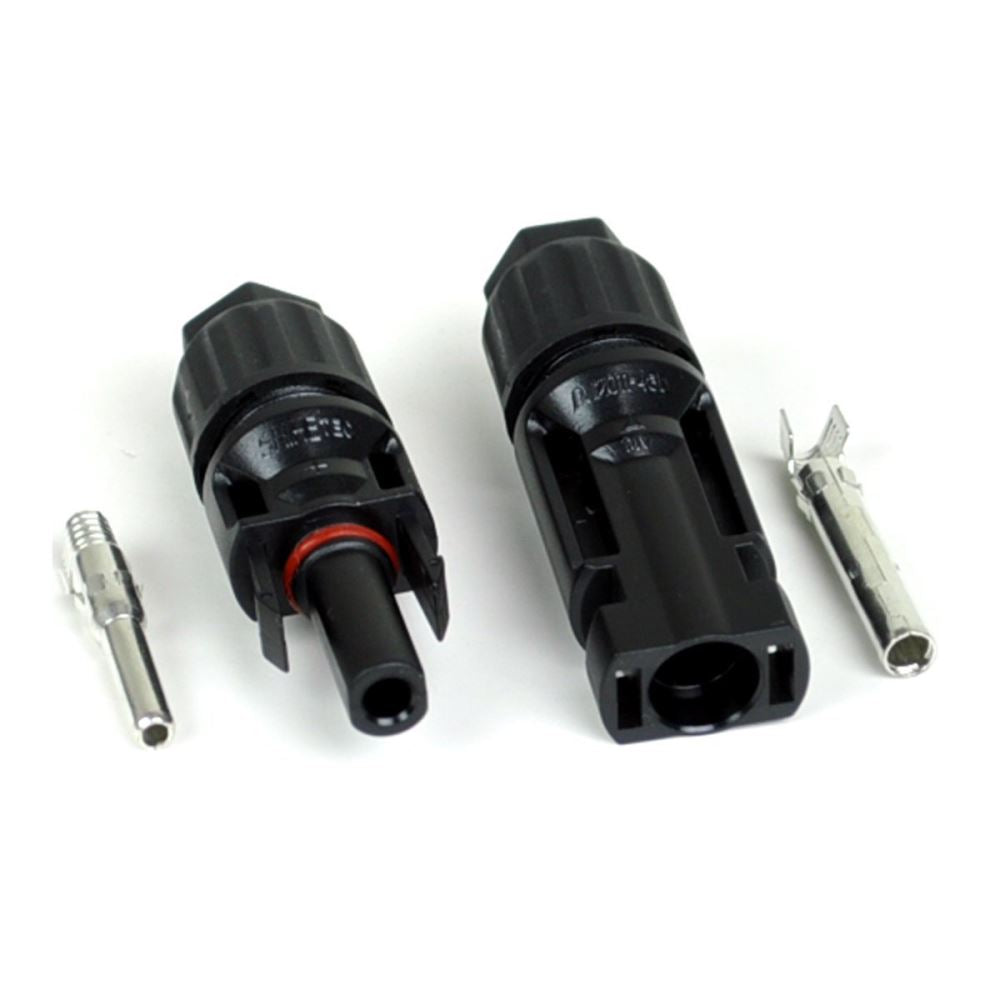

MC4 Solar Connector plug and socket suitable for 2.5mm2, 4mm2 and 6mm2 solar cable.

Pin Material: Tinned Copper
Rated voltage: 1500V
Rated current: 30A
Insulation Material: PV04Z
Degree of protection(mated): IP65/IP68
Ambient temperature range: -40 - +85 degrees celsius
Upper Temperature Limit: 100 degrees celsius
Flame Class: UL94-V0
Withstand Voltage: 6.5KV, 1 min
Compliance: IEC62852:2014, IEC62852:2015, IEC60529
Connector pulling force: >200N

A voltage drop calculation of 3% or less is required when calculating maximum cable run for solar
