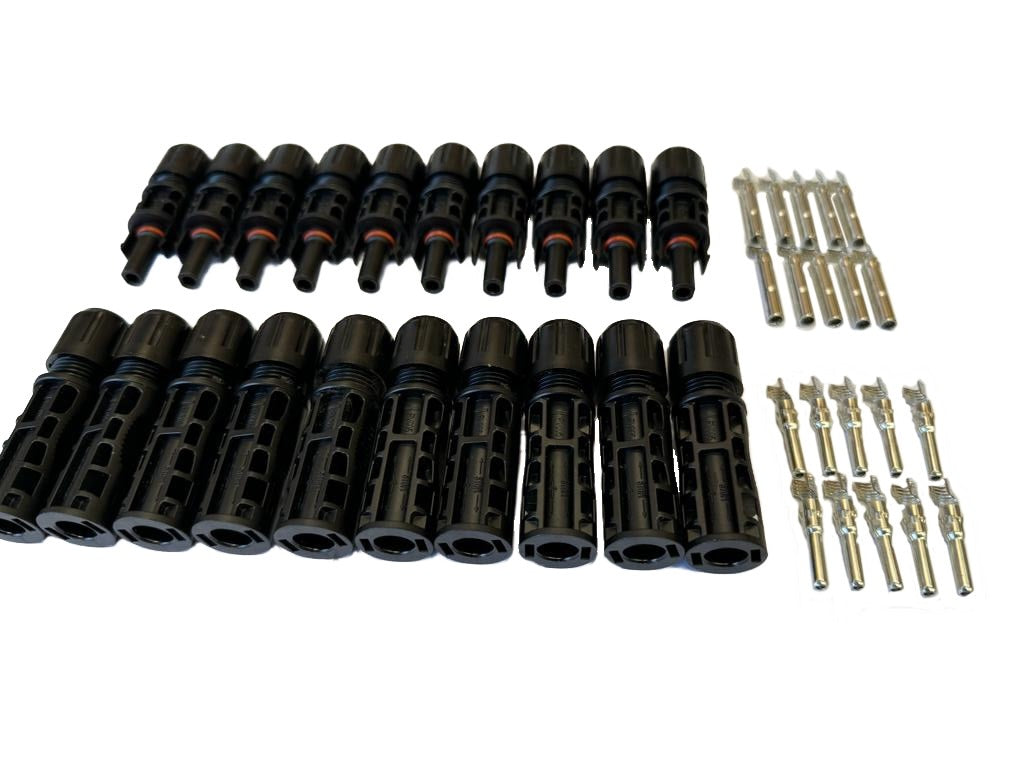

MC4 Solar Panel Connector Pair 10 Pack

MC4 Solar Panel Connector Pair 10 Pack

Regular price $28.50 NZD
Regular price Sale price $28.50 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

10 Pack of MC4 connector pairs

MC4 Solar Connector plug and socket suitable for 2.5mm2, 4mm2 and 6mm2 solar cable.

Pin Material: Tinned Copper
Rated voltage: 1500V
Rated current: 30A
Insulation Material: PV04Z
Degree of protection(mated): IP65/IP68
Ambient temperature range: -40 - +85 degrees celsius
Upper Temperature Limit: 100 degrees celsius
Flame Class: UL94-V0
Withstand Voltage: 6.5KV, 1 min
Compliance: IEC62852:2014, IEC62852:2015, IEC60529
Connector pulling force: >200N

A voltage drop calculation of 3% or less is required when calculating maximum cable run for solar
