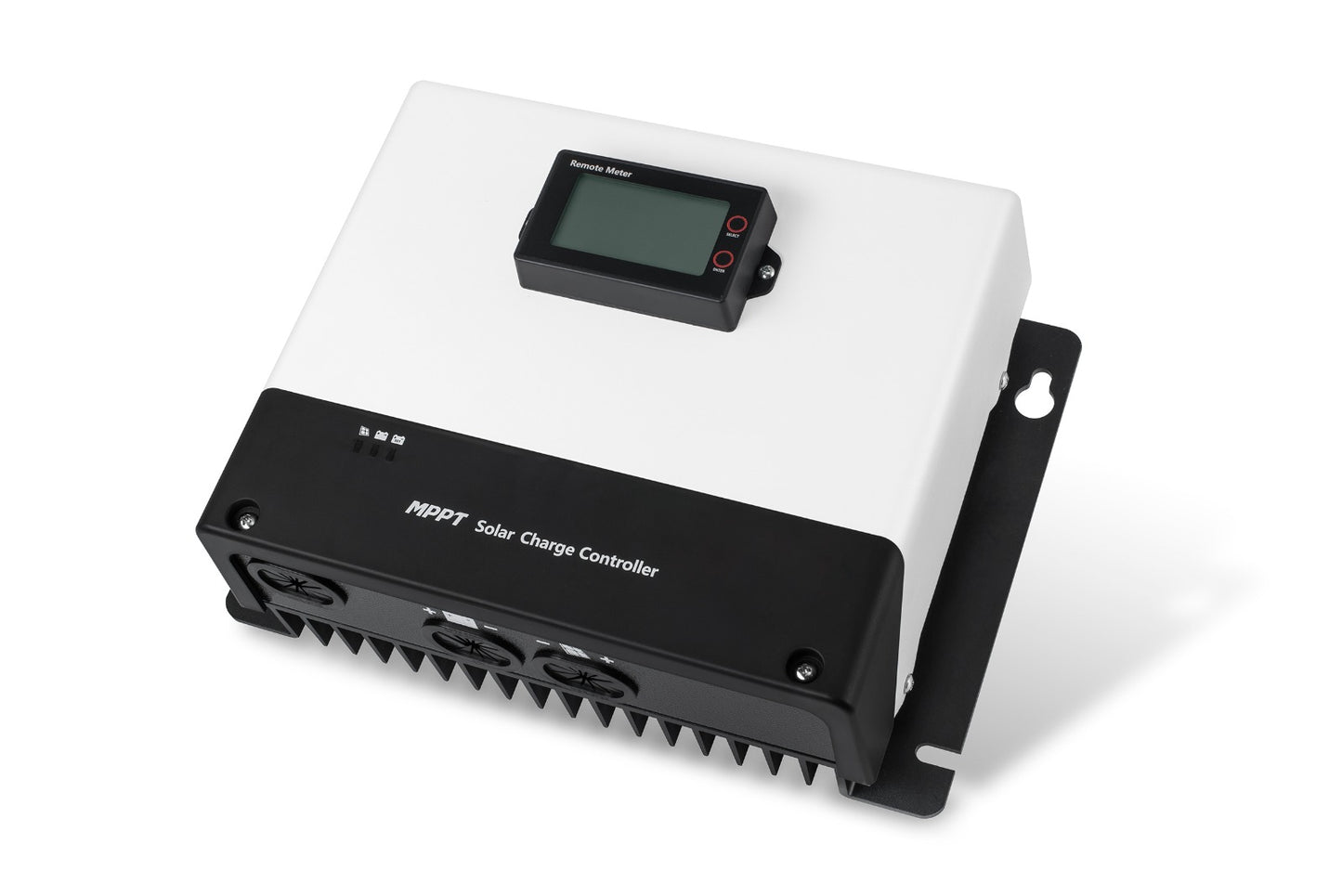

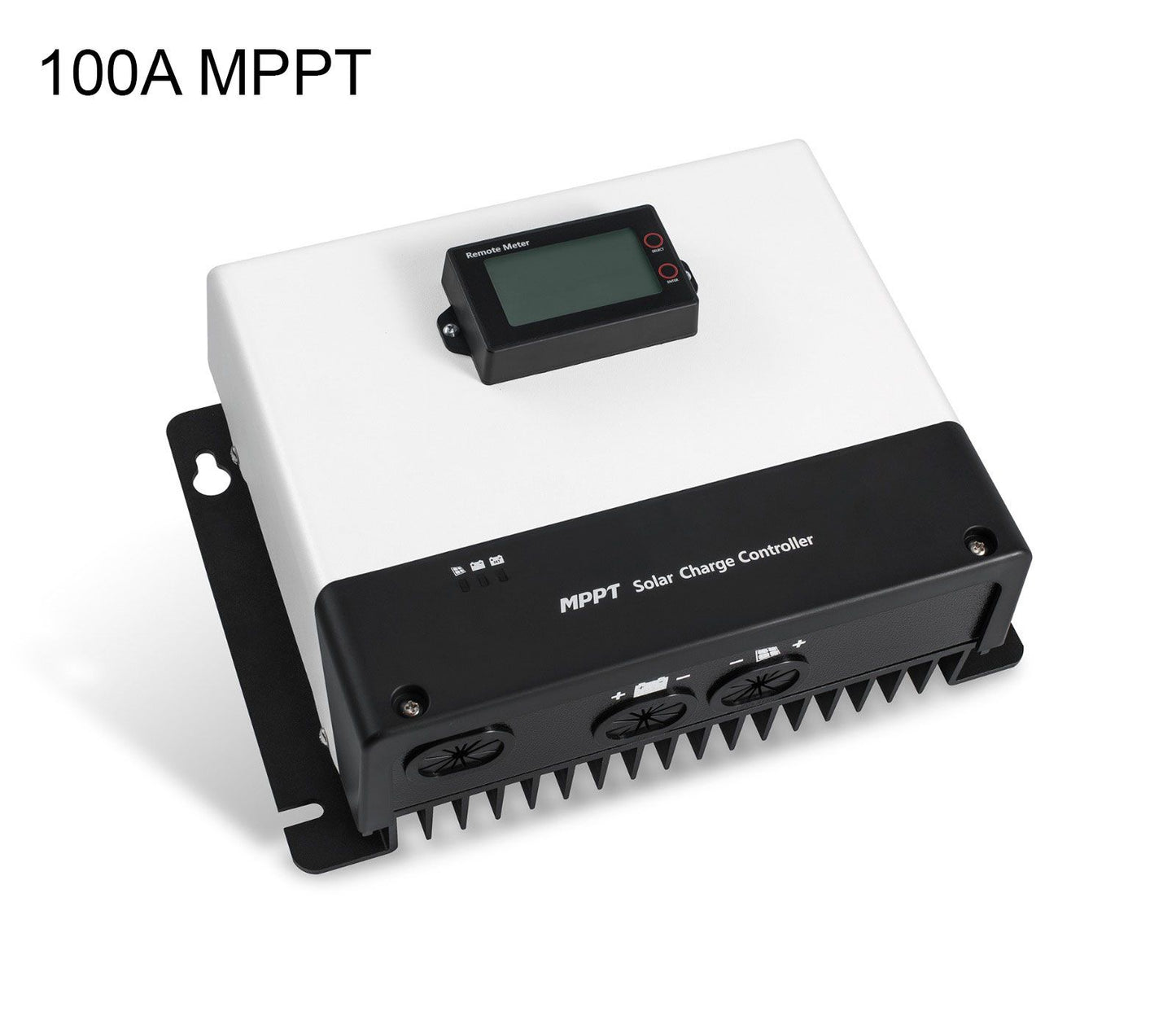

MPPT Solar Charge Controller 100A 12V/24V/48V MC-Series

Regular price $749.00

Tax included. Shipping calculated at checkout.

MPPT solar charge controllers are programmed with a Maximum Power Point Tracking algorithm that allows the solar charge controller to track/calculate the maximum power output of a solar panel or solar array at any given time to a 99% rate of accuracy.
Due to the accuracy of the MPPT algorithm and the built in DC-DC converter, our MPPT solar charge controllers have a conversion efficiency of up to 98% for converting the solar energy into usable energy for charging the battery or supplying solar power directly to loads automatically when the battery is full.
The built in DC-DC power converter steps down the voltage from the solar panel to match the battery voltage, while transforming the surplus voltage into current. This method is up to 40% more efficient compared with the conventional P.W.M(Pulse Width Modulation) method.

The self-consumed power for the solar charge controller has been designed to be as low as 0.7W-1.2W resulting in minimal impact or power drain on your system.

Our MPPT solar charge controllers are compatible with all battery types, the battery charging parameters can also be customised.
Built-in Bluetooth module so you can check historic data or make adjustments using an App on your phone.
Battery temperature sensor allows the controller to monitor the battery temperature for increased battery life and safety.
There is a 5m cable supplied with this model so that the LCD display can be mounted at a more desirable location.


System Voltage: 12/24V/48V
Maximum Solar Open Circuit Voltage (V.O.C) : 150VDC
Maximum Solar Voltage (V.M.P) : 120VDC
Solar Input power:
12V Battery Bank: 1320 Watts
24V Battery Bank: 2640 Watts
48V Battery Bank: 5280Watts
Rated Charge current: 100Amps
Operating Temperature: -35 - +45 Degrees Celsius
Protection Degree: IP32
Communication Method: TTL, RS485
Size: 314mm x 227mm x 121mm
Weight: 5.7kgs
Warranty: 5 Years
