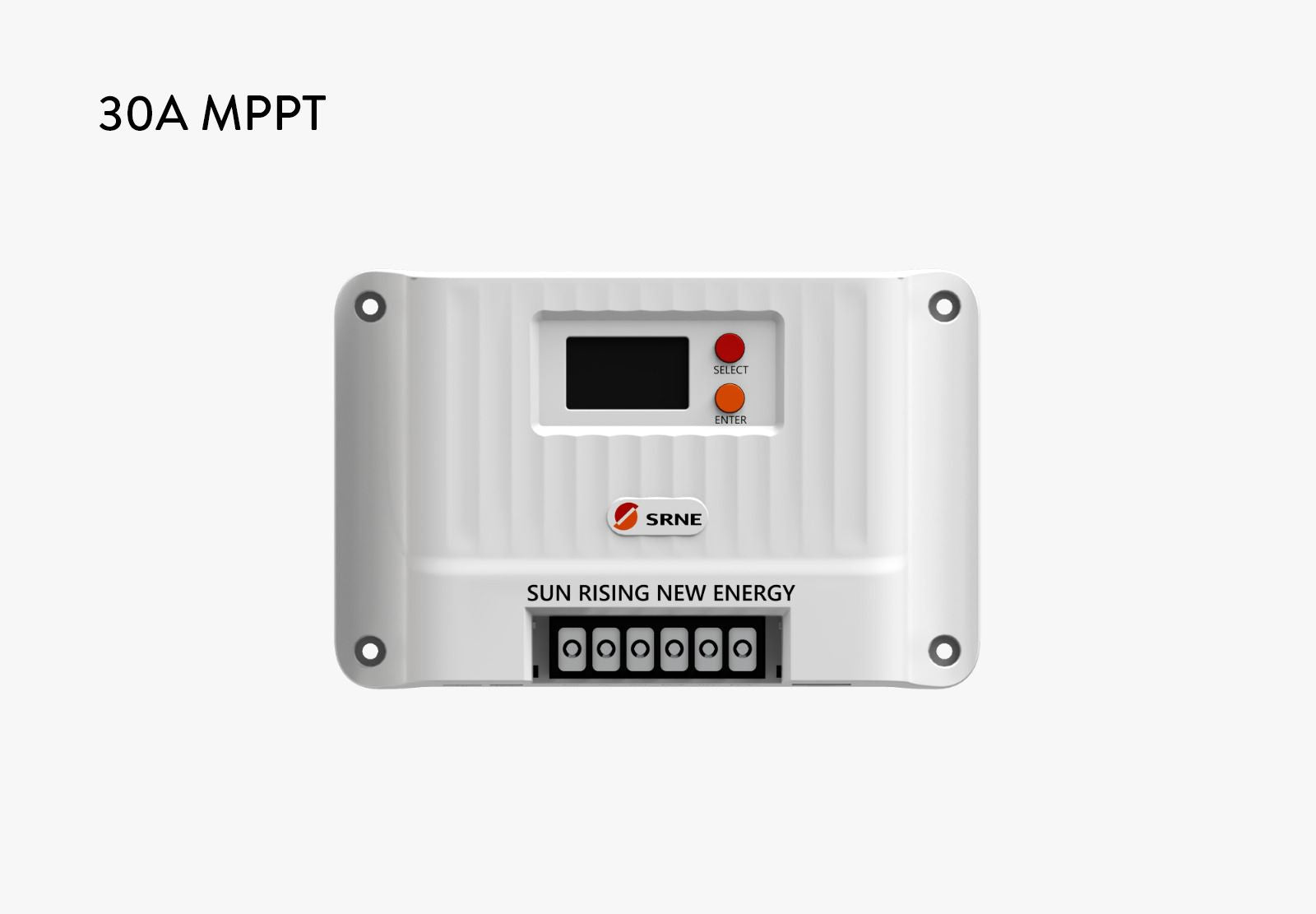

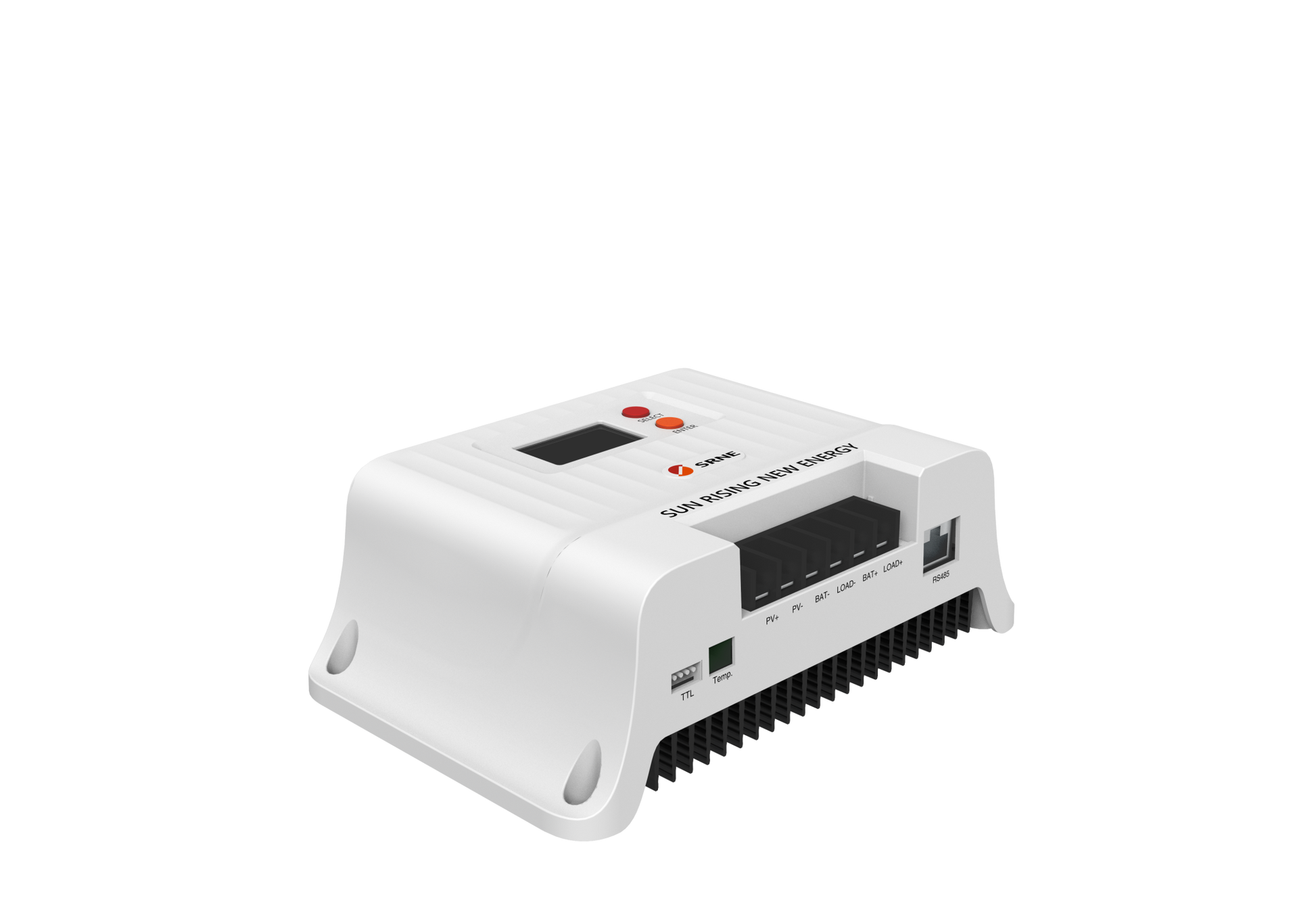

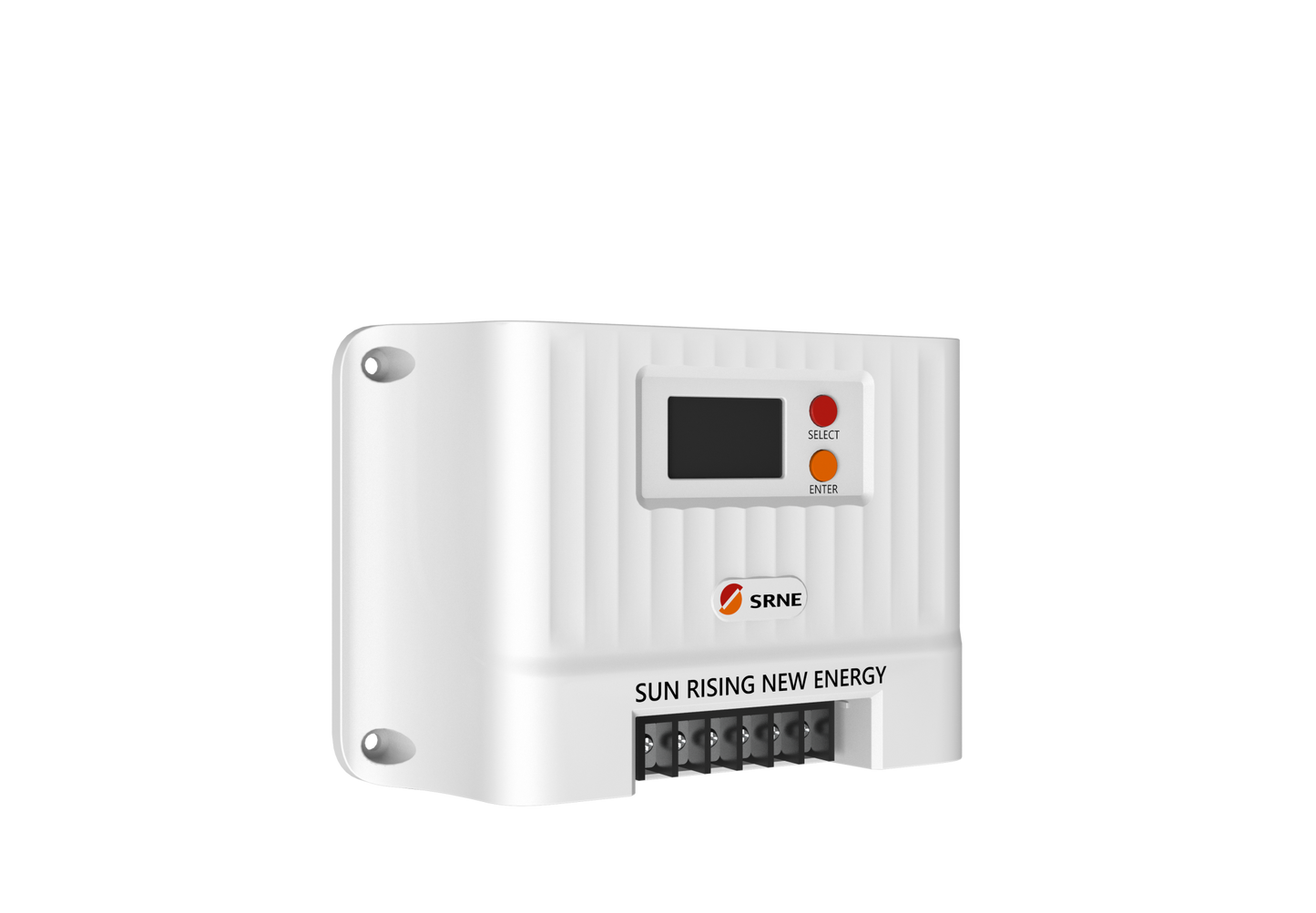

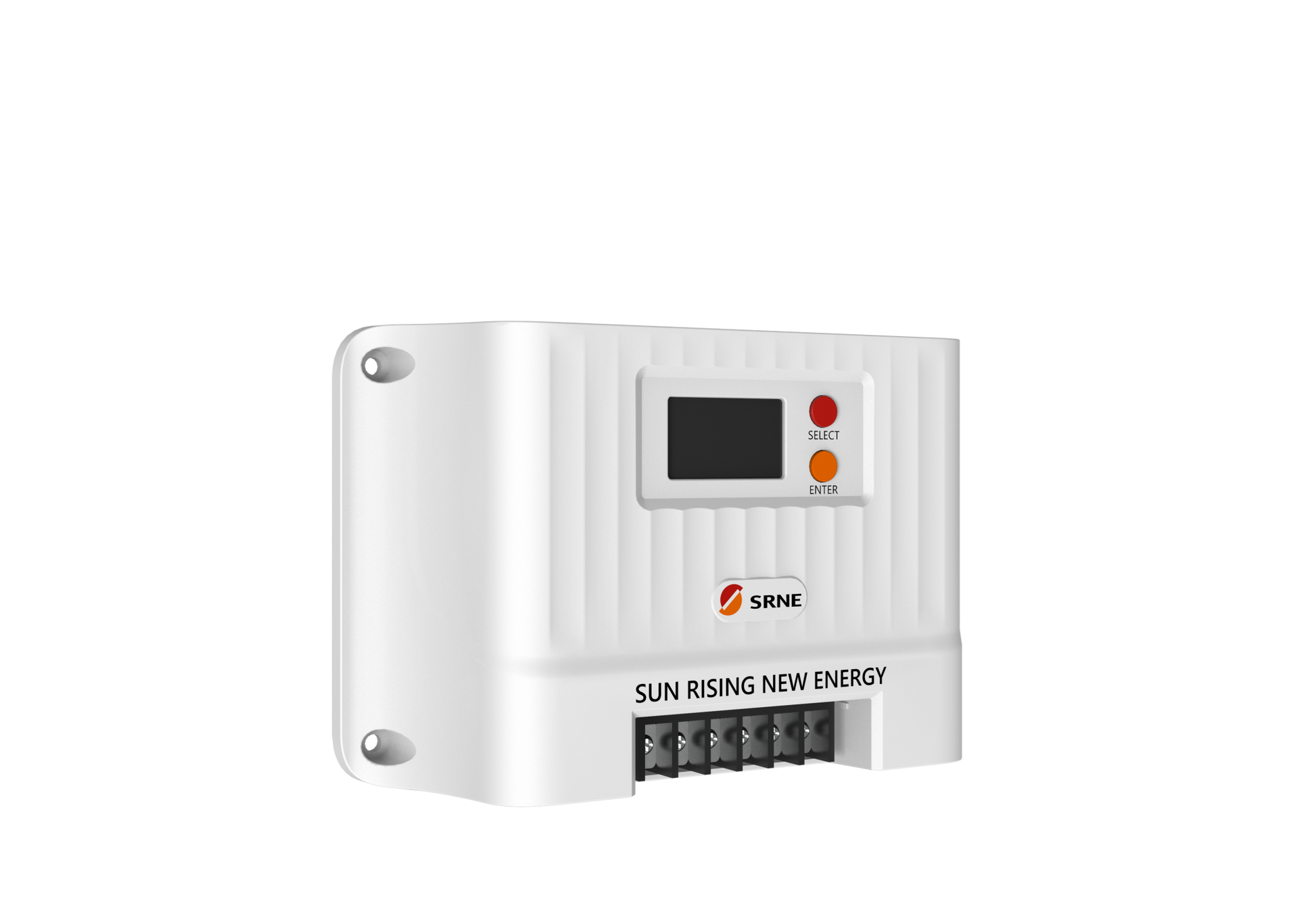

MPPT Solar Charge Controller 30A 12/24V Shiner Series

The Shiner-series solar charge controller is a more compact unit with extra features built-in.

Features:
Genuine MPPT solar charge controller with built in Buck-Boost converter to get up to 98% conversion efficiency from solar
Suitable for use with any battery type with customisable charging settings
Ability to wake up/cold start Lithium batteries
Natural cooling for quiet operation
Built-in Bluetooth to connect with the Solar App for monitoring or changing settings
The latest Maximum Power Point Tracking algorithm with a 99% rate of accuracy
Stand-by power 10mA
Built in LCD display
Load output for powering devices through the solar charge controller
TTL, RS485 and CAN port for RV-C Protocol

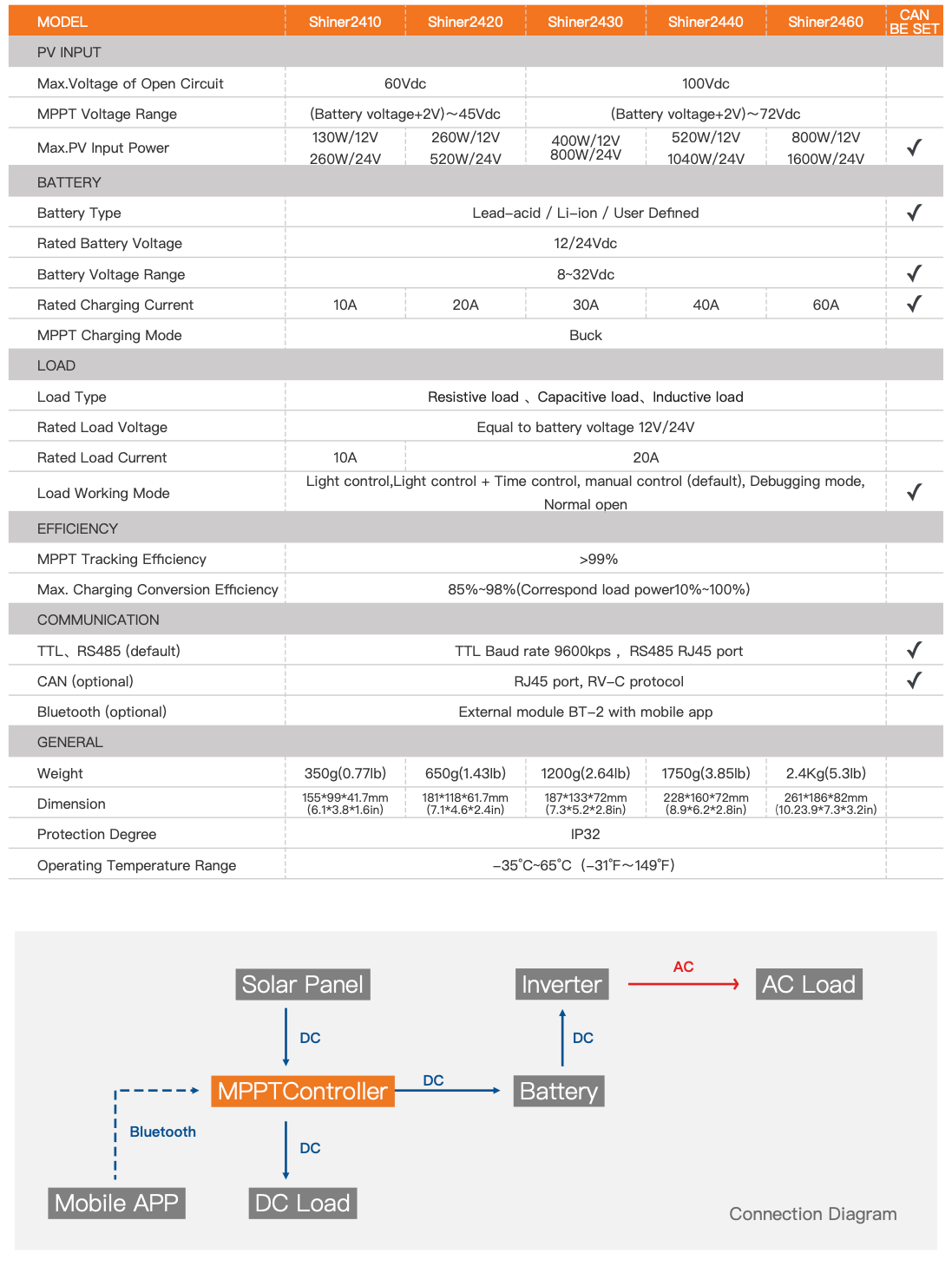

Specifications:

System Voltage: 12/24V
Maximum Solar Open Circuit Voltage (V.O.C) : 100VDC
MPPT Voltage Range: 2-72VDC
Solar Input power:
12V Battery Bank: 400 Watts
24V Battery Bank: 800 Watts
Rated Charge current: 30 Amps
Rated Load Current: 20 Amps
Operating Temperature: -35 - +45 Degrees celsius
Protection Degree: IP32
Communication Method: TTL, RS485, CAN
Size: 187mm x 133mm x 72mm
Weight: 1200g
Warranty: 5 Years
