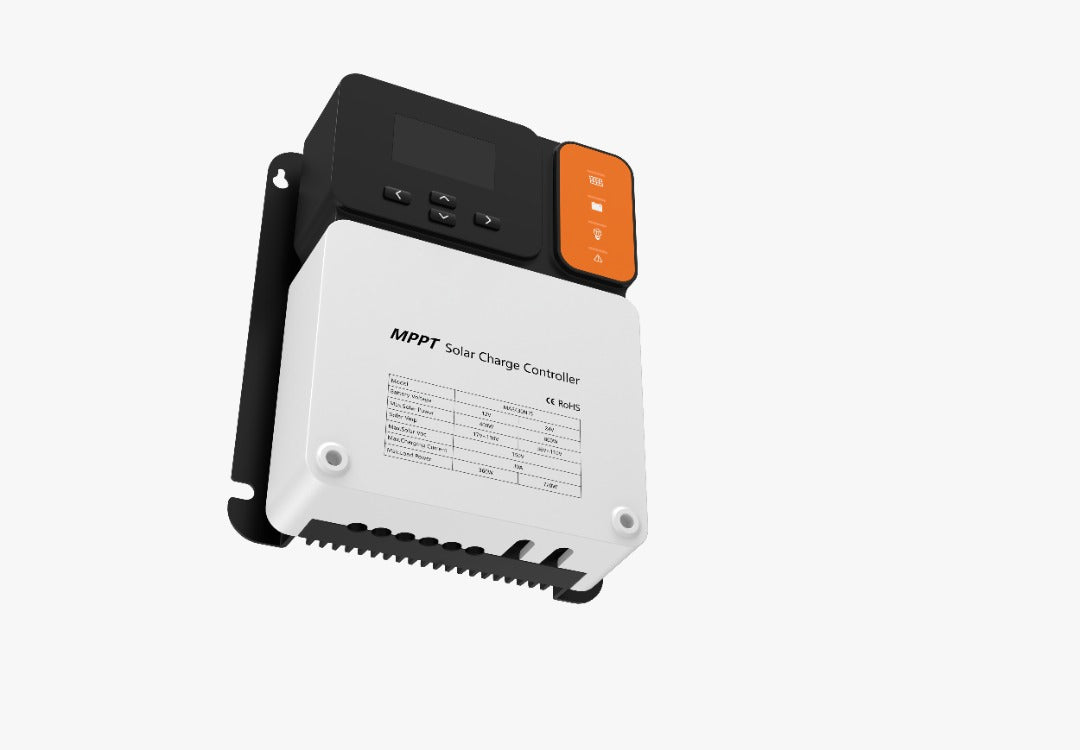

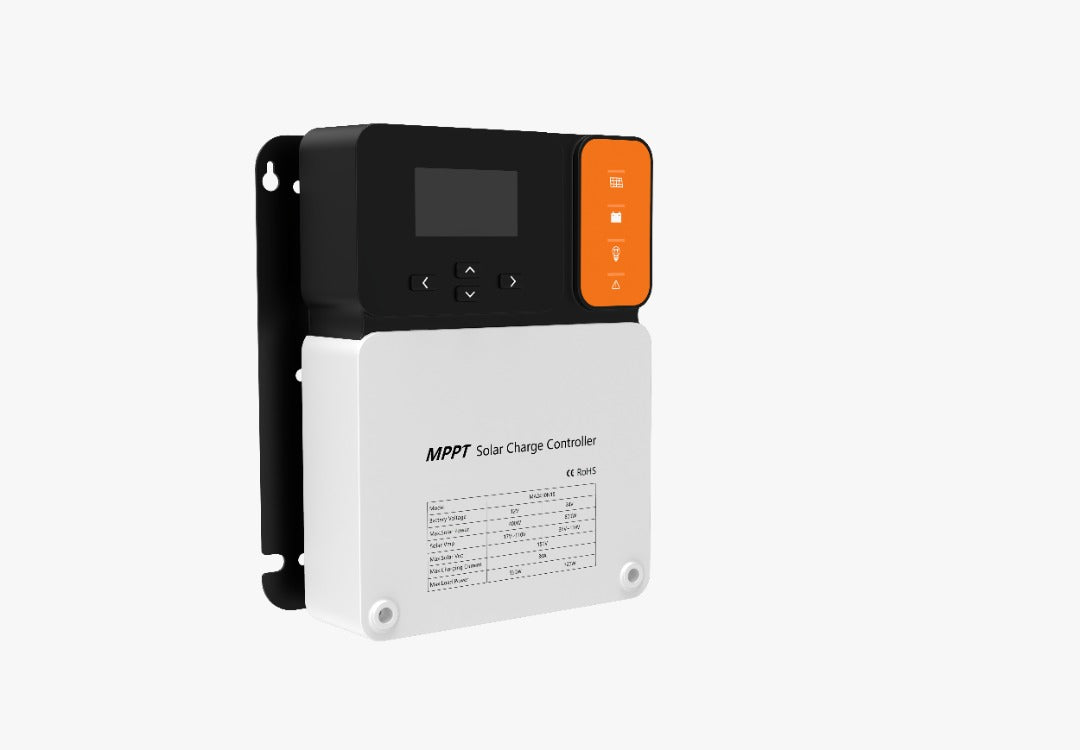

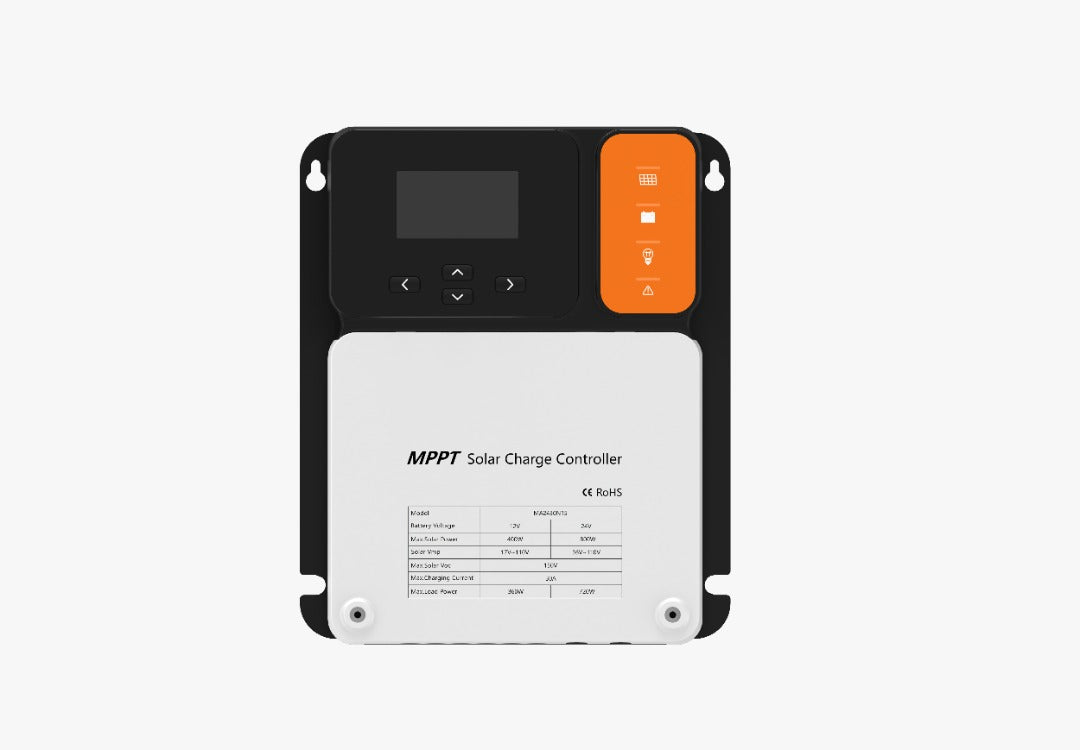

MPPT Solar Charge Controller 60A 12/24V MA-Series
MPPT Solar Charge Controller 60A 12/24V MA-Series
MPPT solar charge controllers are programmed with a Maximum Power Point Tracking algorithm that allows the solar charge controller to track/calculate the maximum power output of a solar panel or solar array at any given time to a 99% rate of accuracy.
Due to the accuracy of the MPPT algorithm and the built in DC-DC converter, our MPPT solar charge controllers have a conversion efficiency of up to 98% for converting the solar energy into usable energy for charging the battery or supplying solar power directly to loads automatically when the battery is full.
The built in DC-DC power converter steps down the voltage from the solar panel to match the battery voltage, while transforming the surplus voltage into current.
The built in load output of the MA-series controller is design to handle inductive and capacitive loads.
The self-consumed power for the solar charge controller has been designed to be as low as 30mA resulting in minimal impact or power drain on your system.
Our genuine MPPT solar charge controllers are compatible with all battery types, the battery charging parameters can also be customised.
The optional Bluetooth module will allow you check historic data or make adjustments using and App on your phone.
Specifications:
System Voltage: 12/24V
Maximum Solar Open Circuit Voltage (V.O.C) : 150VDC
MPPT Voltage Range : 2-110VDC
Maximum Solar Input Current: 53A
DC-DC Conversion Frequency: 40kHz
Solar Input power:
12V Battery Bank: 800 Watts
24V Battery Bank: 1600 Watts
Rated Charge current: 60Amps
Operating Temperature: -35 - +45 Degrees celsius
Protection Degree: IP32
Communication Method: TTL
Size: 260mm x 216mm x 98.5mm
Weight: 3.4kg
Warranty: 5 Years
