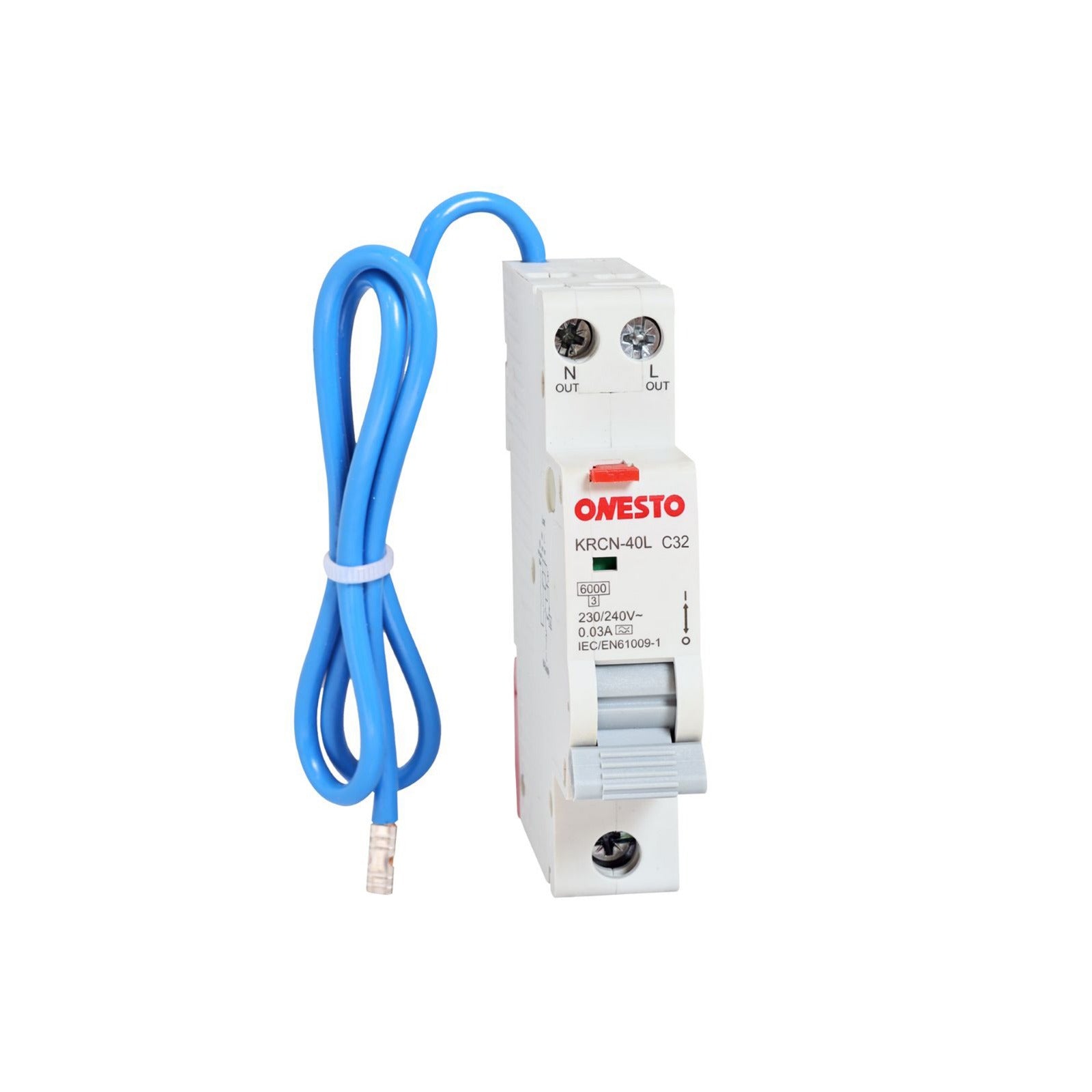

RCBO 32A A-Type 30mA

32A RCBO combining RCD, overload and short-circuit protection
SAA-Approved and EESS Registered

32A RCBO Specifications:

Rated Current: 32A
Rated Residual Operating Current: 30mA
No. of Pole: 1P+N
Rated Voltage: 230/240VAC
IP Rating: IP20
Tripping Characteristics: C Curve
Mechanical Life: 20,000
Rupturing/Breaking Capacity: 6000A
Working Temperature: -20 to +70 Degrees Celsius
Relative Humidity: <95%
Test Standards: IEC61009-1

EESS Registration Number E2025012863
SAA-250412-EA
