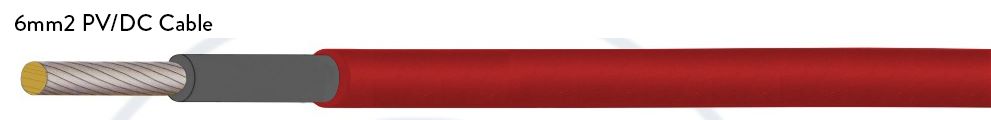

Solar Cable 6mm2 Red Double Insulated
Solar Cable 6mm2 Red Double Insulated
This 6mm2 Red Solar Cable is marine-grade and is suitable for use with DC or solar applications in compliance with AS/NZS5033.
The XLPO(Cross-Linked Polyolefin) solar cable insulation is UV resistant, flame retardant and halogen free.
A voltage drop calculation of 3% or less is required when calculating maximum cable run for solar.
Solar Cable Characteristics:
Cross Sectional Area: 6mm2
Cable Outside Diameter: 6.6mm
Conductor Outside Diameter: 3.06mm
Conductor Construction (n/mm): 84/0.285
Conductor Material: Oxygen Free Tinned Copper
Conductor Resistance per/km at 20degrees: 3.39ohms
Insulation Material: XLPO (Cross-Linked Polyolefin)
Application Class: A
Protection Class: Class 2
Minimum Bending Radius: 5 x Cable Diameter
Rated Voltage AC: 0.6/1.0kV
Rated Voltage DC: 1.5kV
Temperature Range: -40 - +90 degrees Celsius
Test Standards:
TUV 2 PfG 1169 - AS/NZS5033
EN50618: Product Standards
EN 50396/EN 60228: Structure Perfomance
EN 60811-1-1 : Tensile strength and elongation
EN 60811-1-4 : Cold bending
EN60216-2 : Thermal endurance properties
EN 60754-1/EN 60754-2: Halogen free
EN 50396 : Ozone resistance
HD 605/A1 : UV resistance
IEC 60332-1-2 : Flame characteristics
