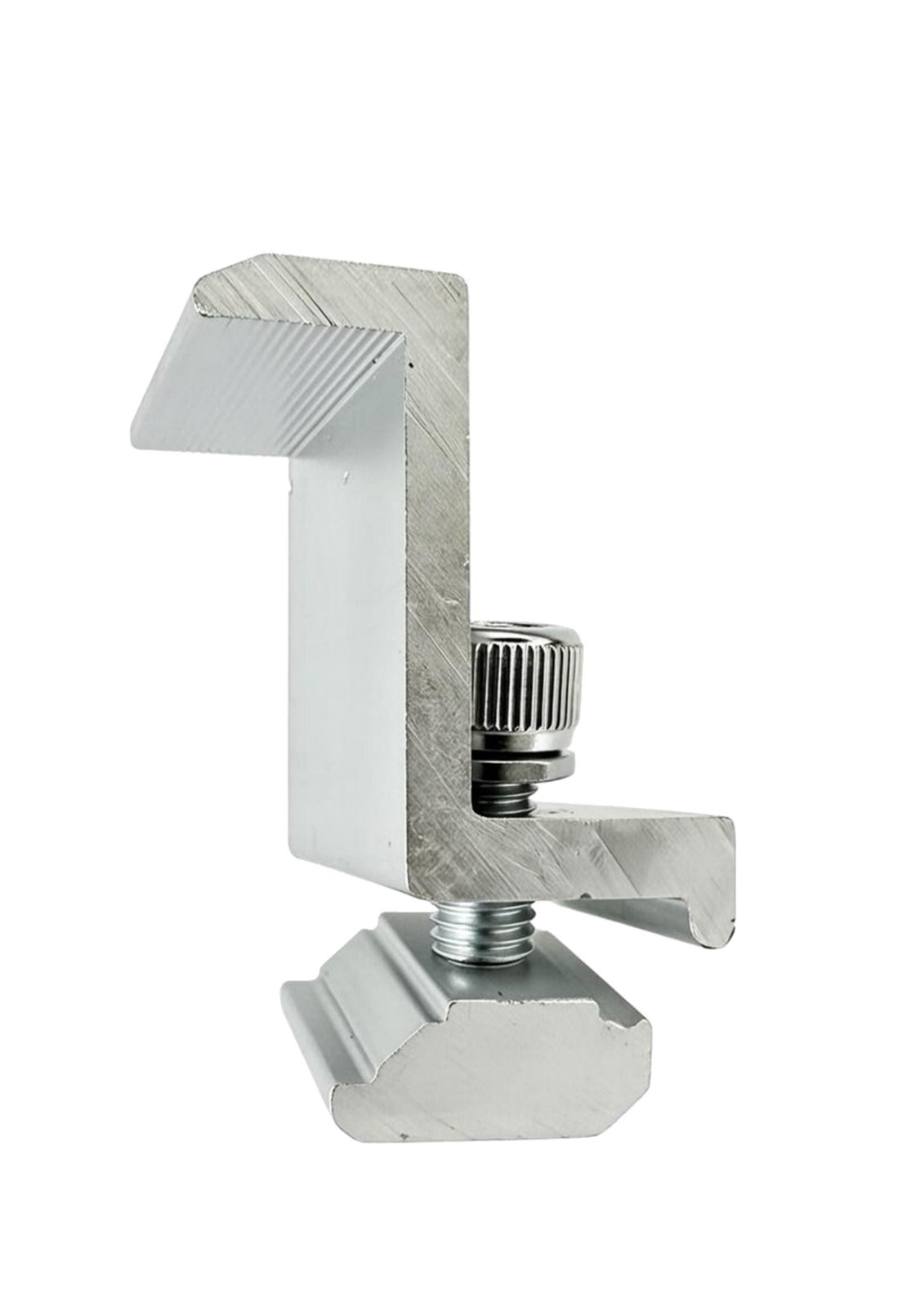

Solar Panel End Clamp is for clamping the edge of a solar panel to the mounting rail, the end clamp is designed to work with our mounting rail and will work with a framed solar panel that is 35mm thick.
Made from Aluminium and is supplied with a stainless steel M8 bolt
Recommended torque for M8 Bolt:12-15Nm
To bond the solar panel to the mounting rail for earthing purposes there is a grounding washer that can be fitted between the panel and the mounting rail.
Our mounting system has been tested and complies with AS/NZS1170
