Fazcorp

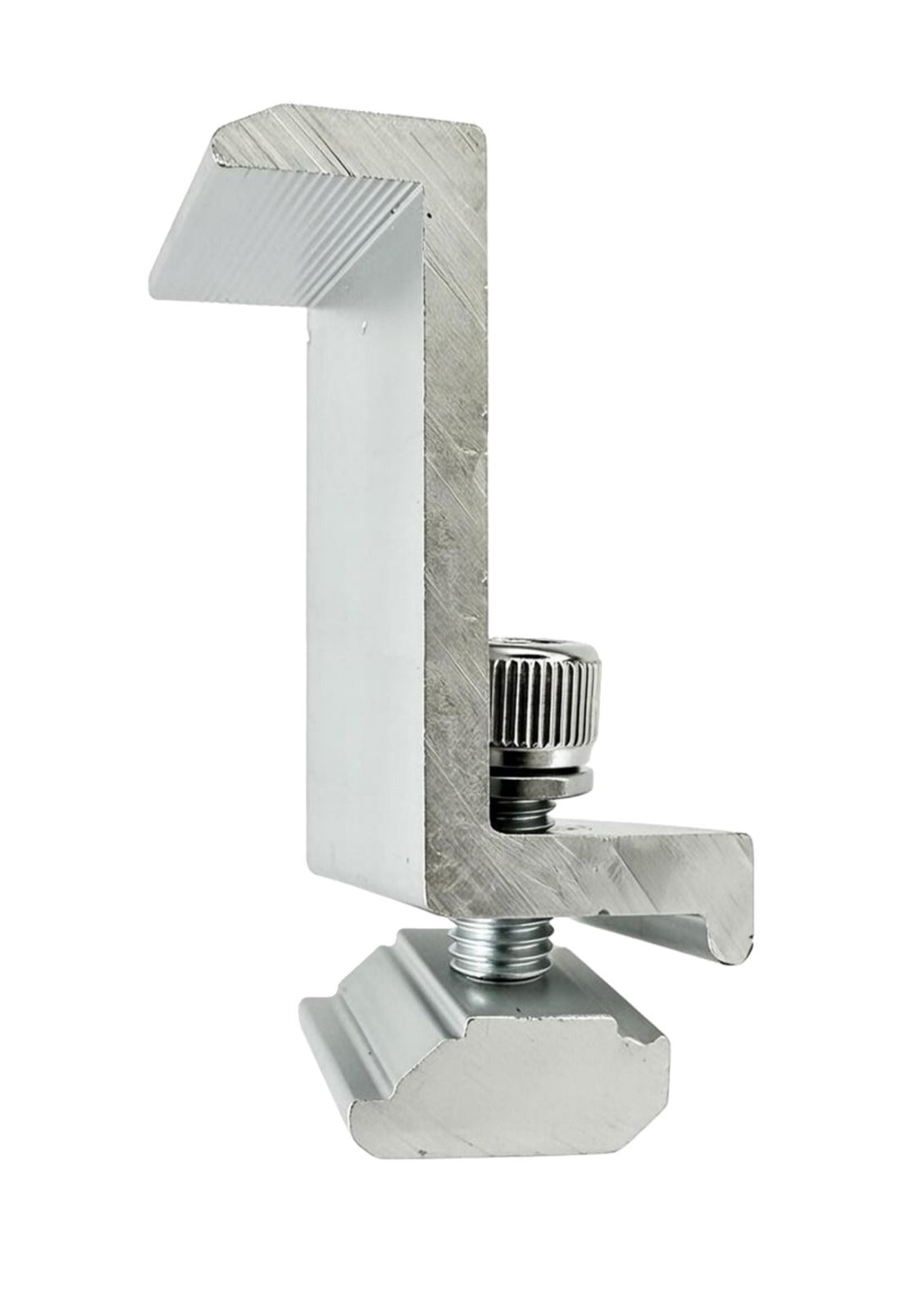

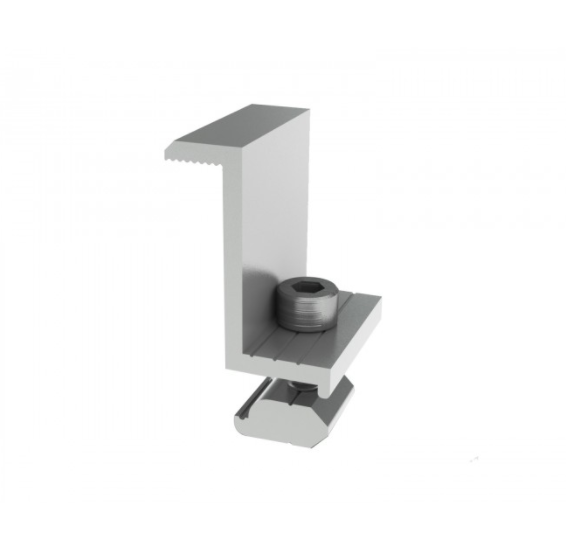

Solar Panel End Clamp 45mm

Solar Panel End Clamp 45mm

Regular price $4.95 NZD
Regular price Sale price $4.95 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
Default

Solar Panel End Clamp is for clamping the edge of a solar panel to the mounting rail, the end clamp is designed to work with our mounting rail and will work with a framed solar panel that is 45mm thick.

Made from Aluminium and is supplied with a stainless steel M8 bolt.
Recommended torque for M8 Bolt:12-15Nm

To bond the solar panel to the mounting rail for earthing purposes there is a grounding washer that can be fitted between the panel and the mounting rail.

Our mounting system has been tested and complies with AS/NZS1170
