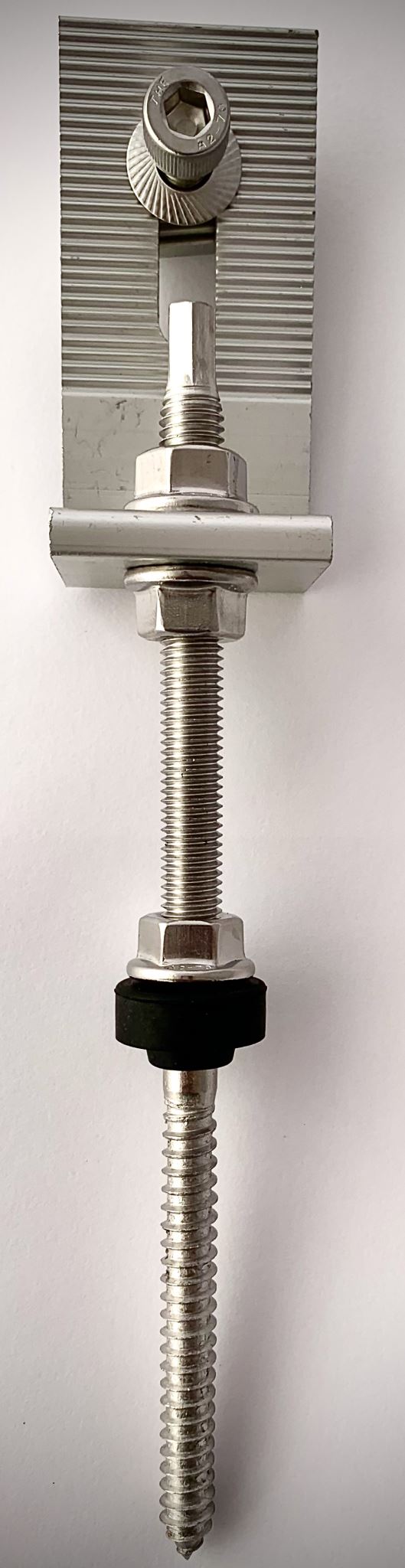

Solar Mounting L-Bracket With Hanger Bolt

This solar mounting L-Bracket is made from Aluminium and is supplied with a stainless steel wood screw that allows for height to be adjusted.
Once the Solar Mounting L-Bracket has been fixed to the roof then you will be able to attached the solar mounting rail.
The stainless steel wood screw allows for height adjustment and can work with many different roof profiles and curved roofs.
On our installs we use a minimum of 7 x L-Brackets per 4200mm solar mounting rail

Overall length of bolt 205mm, length of thread 80mm.

Recommended torque setting for M8 Bolts: 12-15Nm

Complies with AS/NZS1170
