Solar Panel Inner Clamp 40mm

Regular price
$3.95
Sale price
$3.95
Tax included.

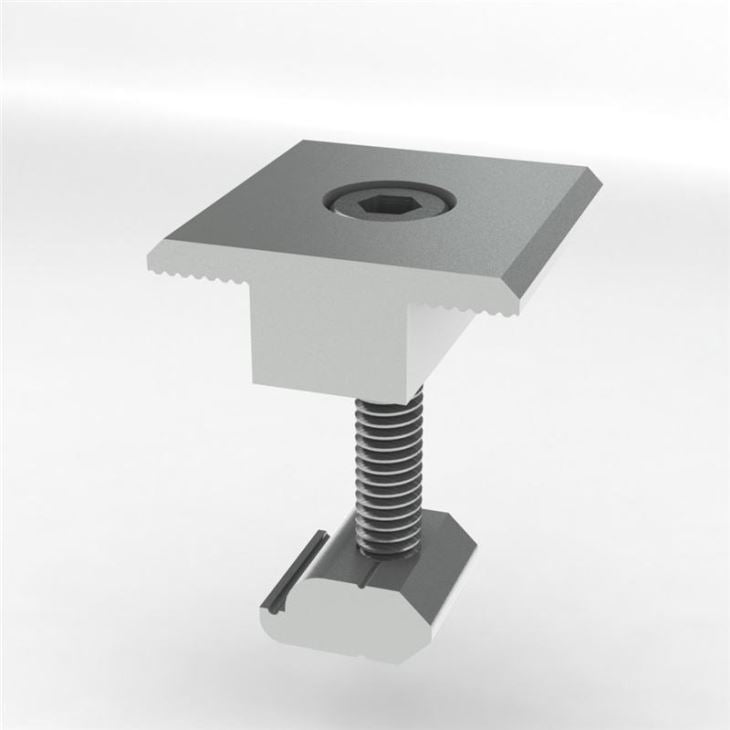

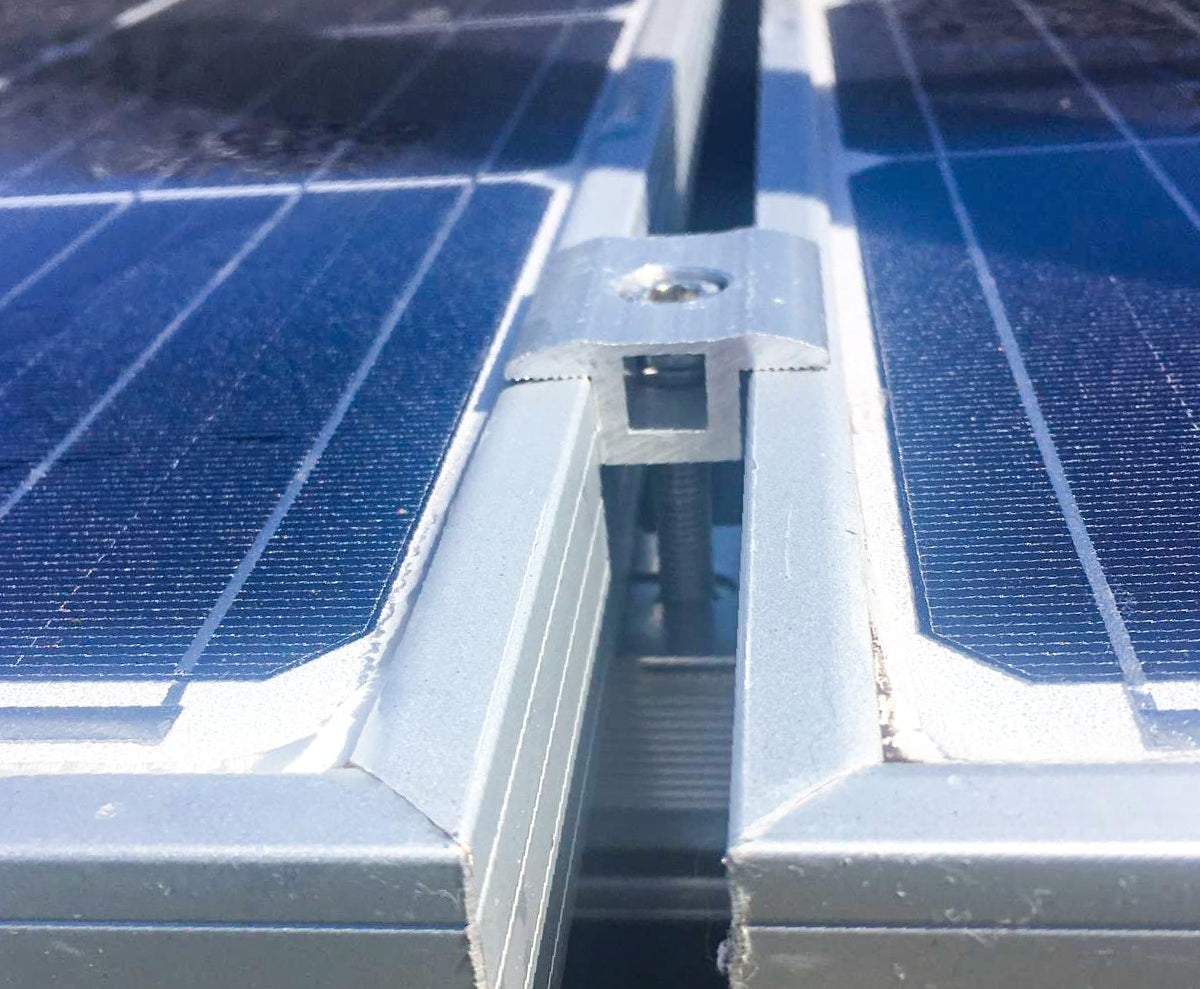

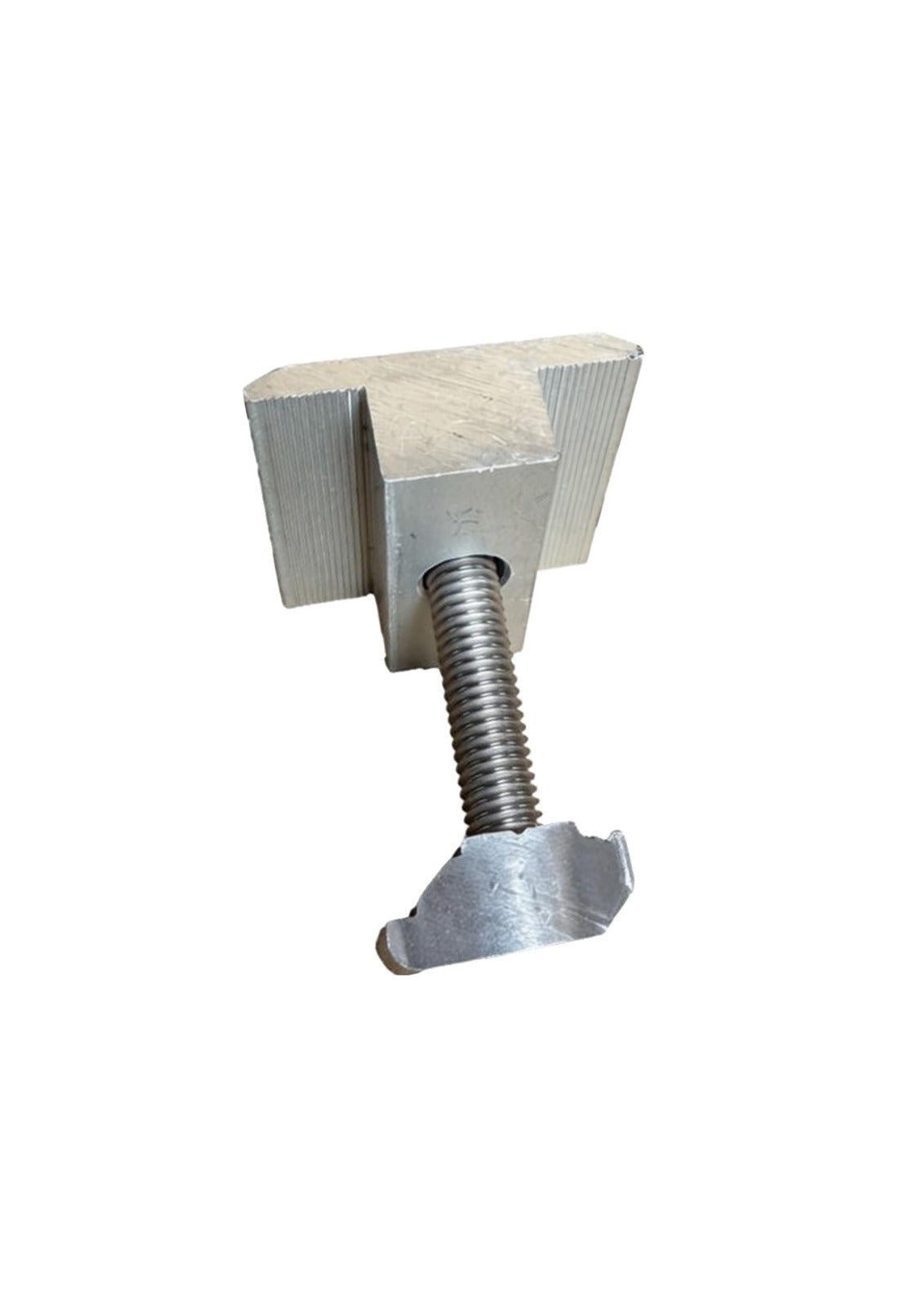

Solar Panel Inner clamp is for clamping in between panels to mount them to the rail, the clamp is designed to work with our mounting rail and will work with a framed solar panel that is 40mm thick.

Made from Aluminium and is supplied with a stainless steel M8 bolt.
Recommended torque setting for M8 Bolts: 12-15Nm

To bond the solar panel to the mounting rail for earthing purposes there is a grounding washer that can be fitted between the panel and the mounting rail.

Our mounting system has been tested and complies with AS/NZS1170
