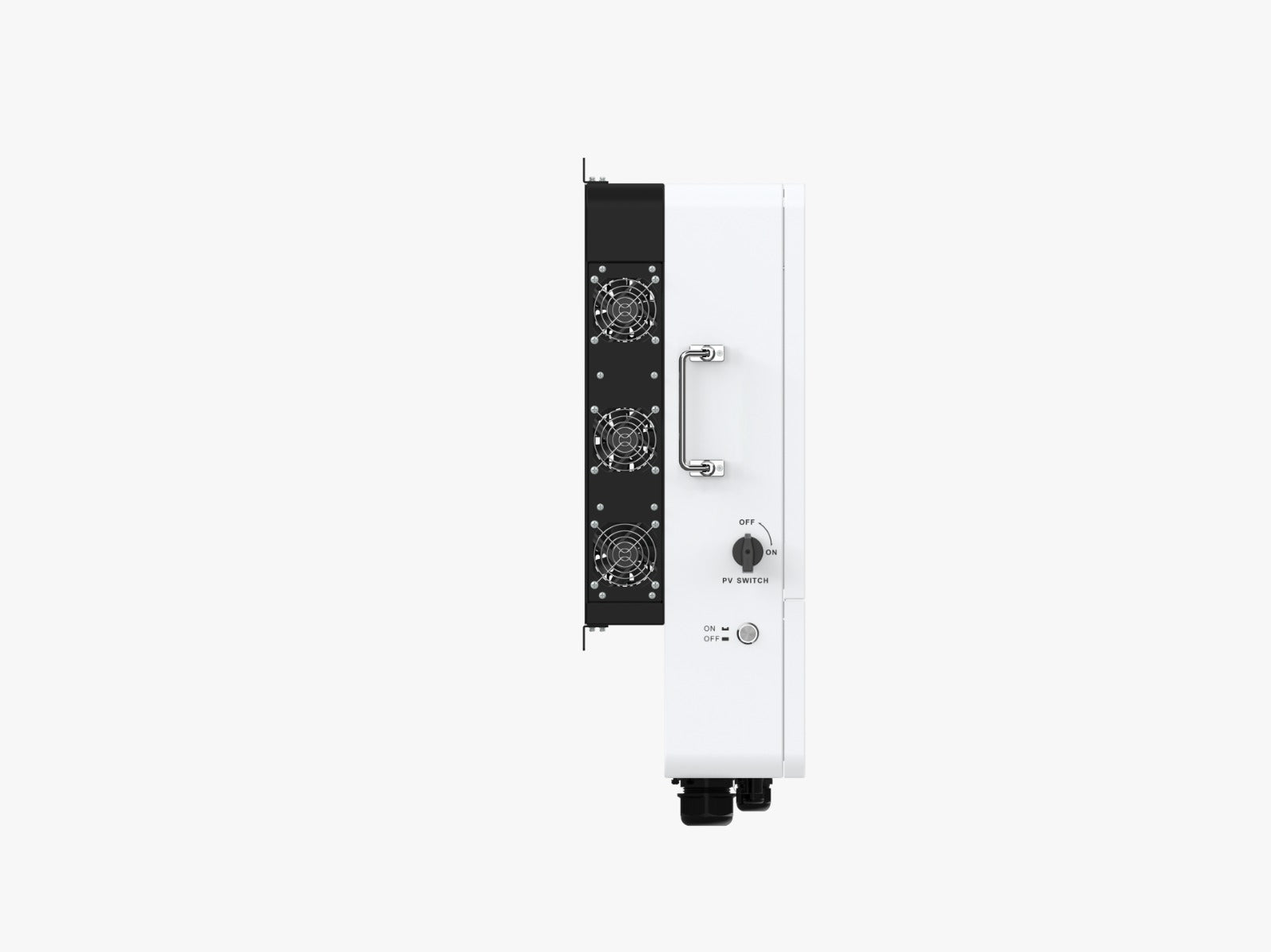

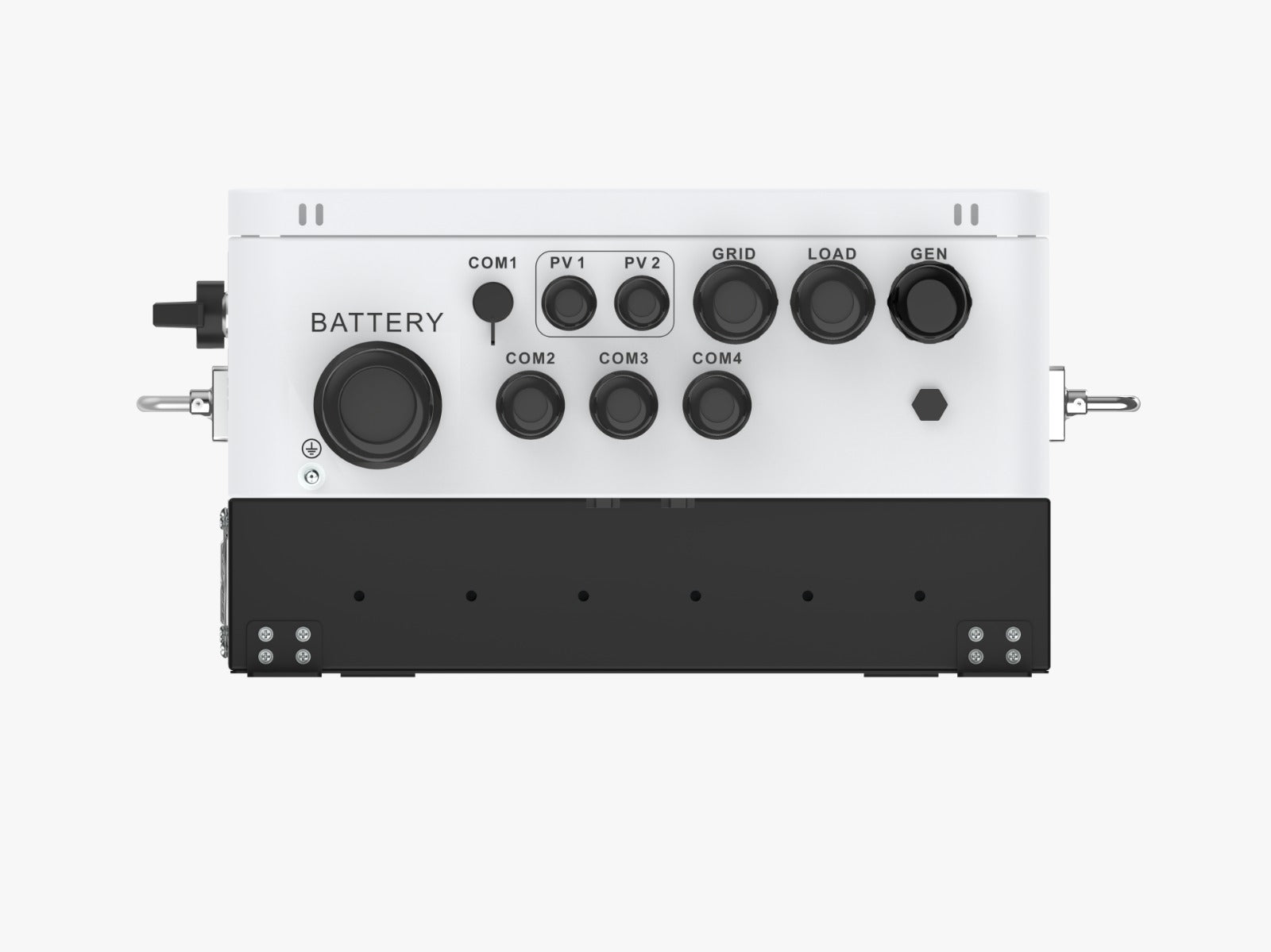

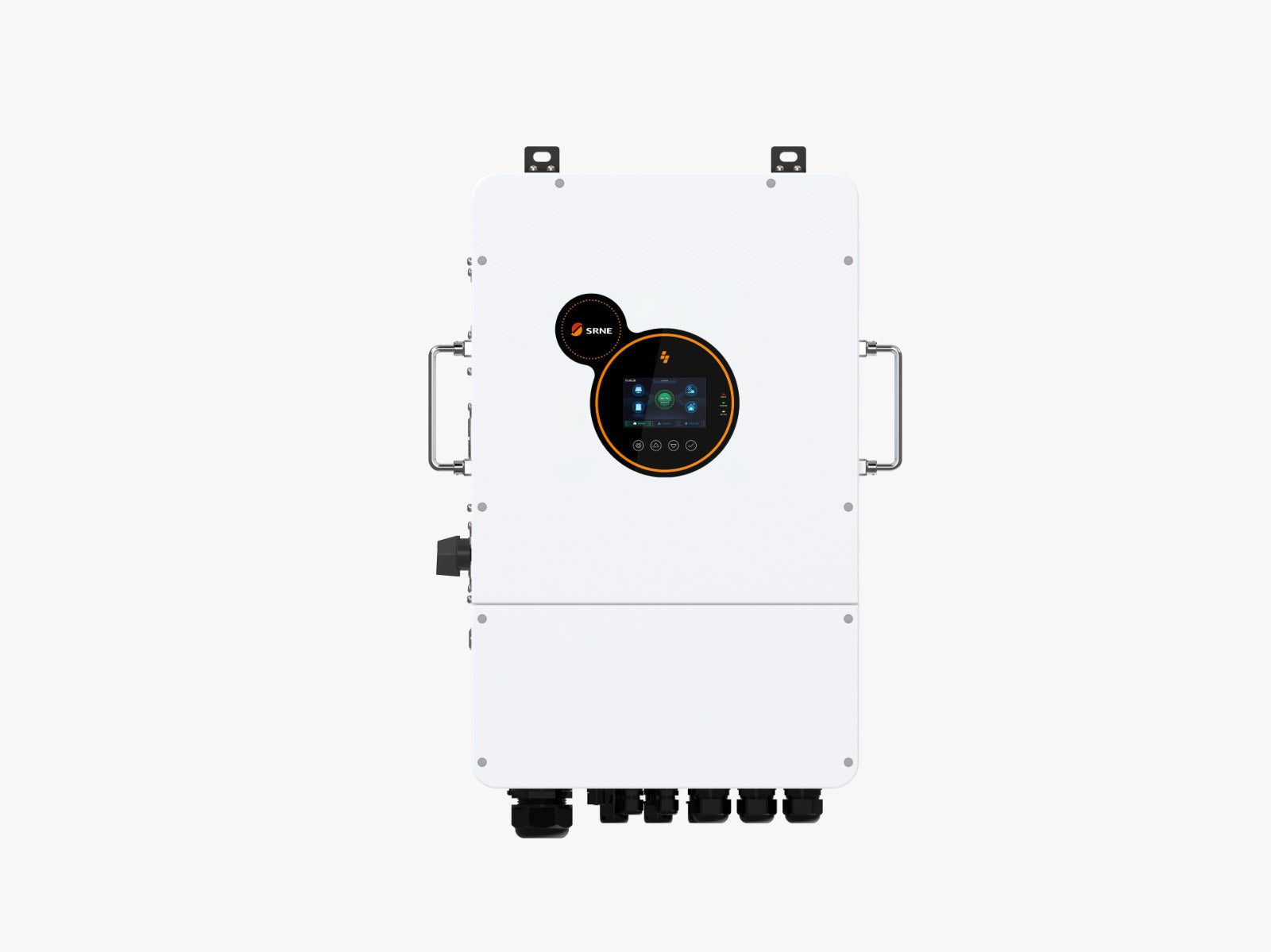

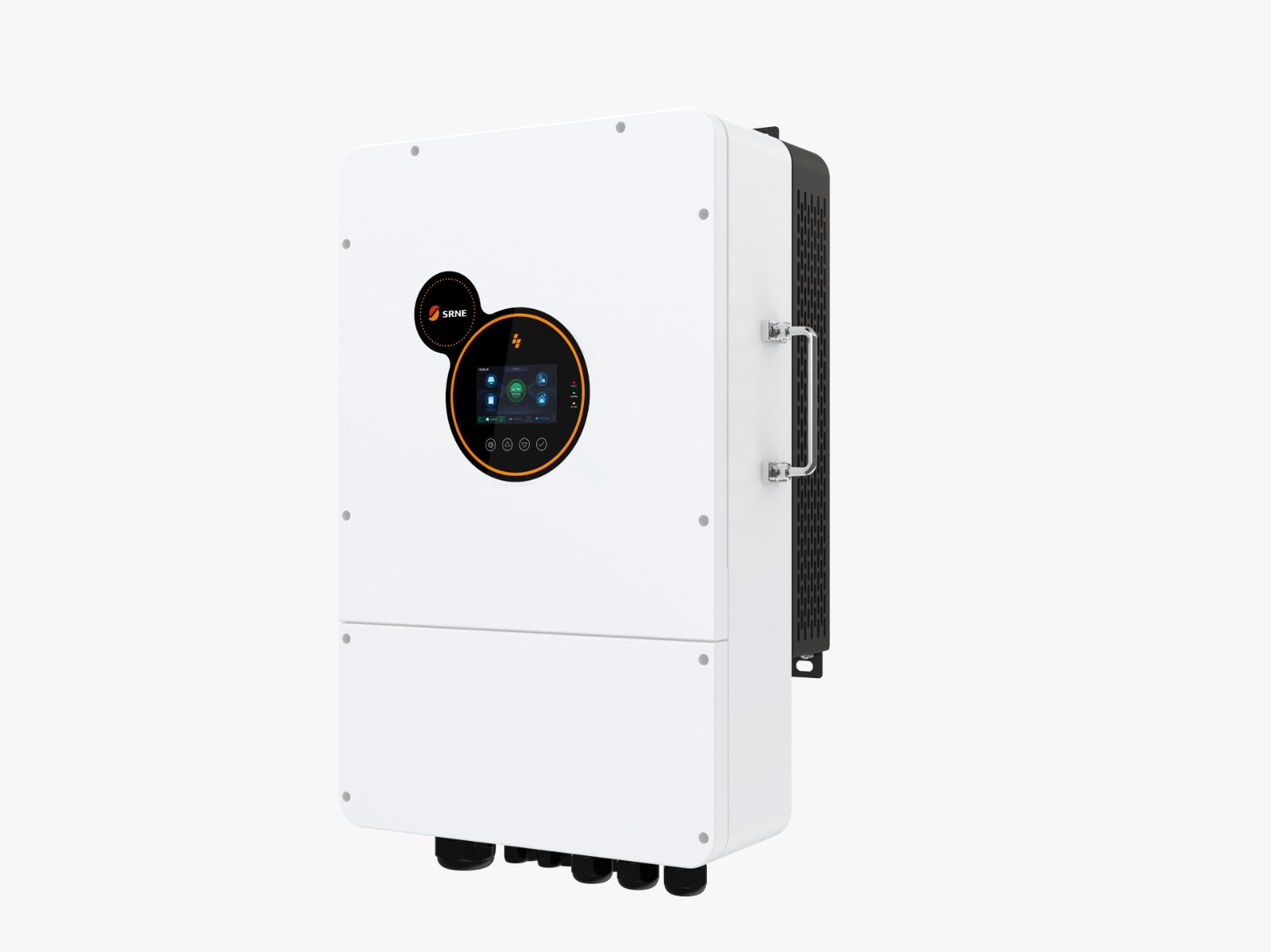

SRNE 12kW 3phase On/Off Grid Hybrid Solar Inverter/charger 48V

SRNE 12kW 3Phase On/Off Grid Hybrid Solar Inverter/charger 48V Features:

• Compatible with 48V storage batteries
• 2 efficient, independent MPPT ports
• Separate generator port
• Support AC-coupling
• IP65 waterproof protection degree
• Wifi included
• AS4777.2 certified

Inverter Specifications:

• Battery Voltage: 48VDC
• Battery Type: Lithium, Lead-Acid
• Input Voltage Range: 40～60Vdc
• Rated Power: 12000W/12000VA - Unity Power Factor
• Waveform: Pure sine wave 50Hz
• Rated Output Voltage: 230VAC/400VAC (Three Phase)
• Load Motor Capacity: 6HP
• UPS Switching time: <10ms
• THD: <3% (Resistive Load)
• Cooling: Heat Sink with Intelligent Fan Cooling

PV Input:

• No. of MPPT Trackers: 2
• Max. PV Input Power: 9,000W/9,000W (18,000W Total)
• Max. PV Input Current: 22A/22A
• Max. Short Circuit Current: 37A/37A
• Max. Open Circuit Voltage: 800V
• MPPT Operating Voltage Range: 200V～650V
• MPPT Tracking Efficiency: 99.9%
• Max. Conversion Efficiency: 97.5%

Protection:

• PV Reverse Protection
• Residual-Current Monitoring
• Output Short-Circuit Protection
• Over-Voltage Category: AC type II/DC type III
• Surge Category: AC type II/DC type II
• Anti-Islanding Protection
• Insulation Resistance Monitoring
• Output Over-Current Protection

Grid/Generator Input:

• Input Voltage: 400VAC
• Input Frequency: 50Hz
• Bypass Overload Current: 35A

Dimensions (mm): 700*440*260
Weight: 39.2kgs
Noise :<60dB
Humidity:0～100%
Operating Temperature: -25～60°C, >45°C Derate
Warranty: 5 years
