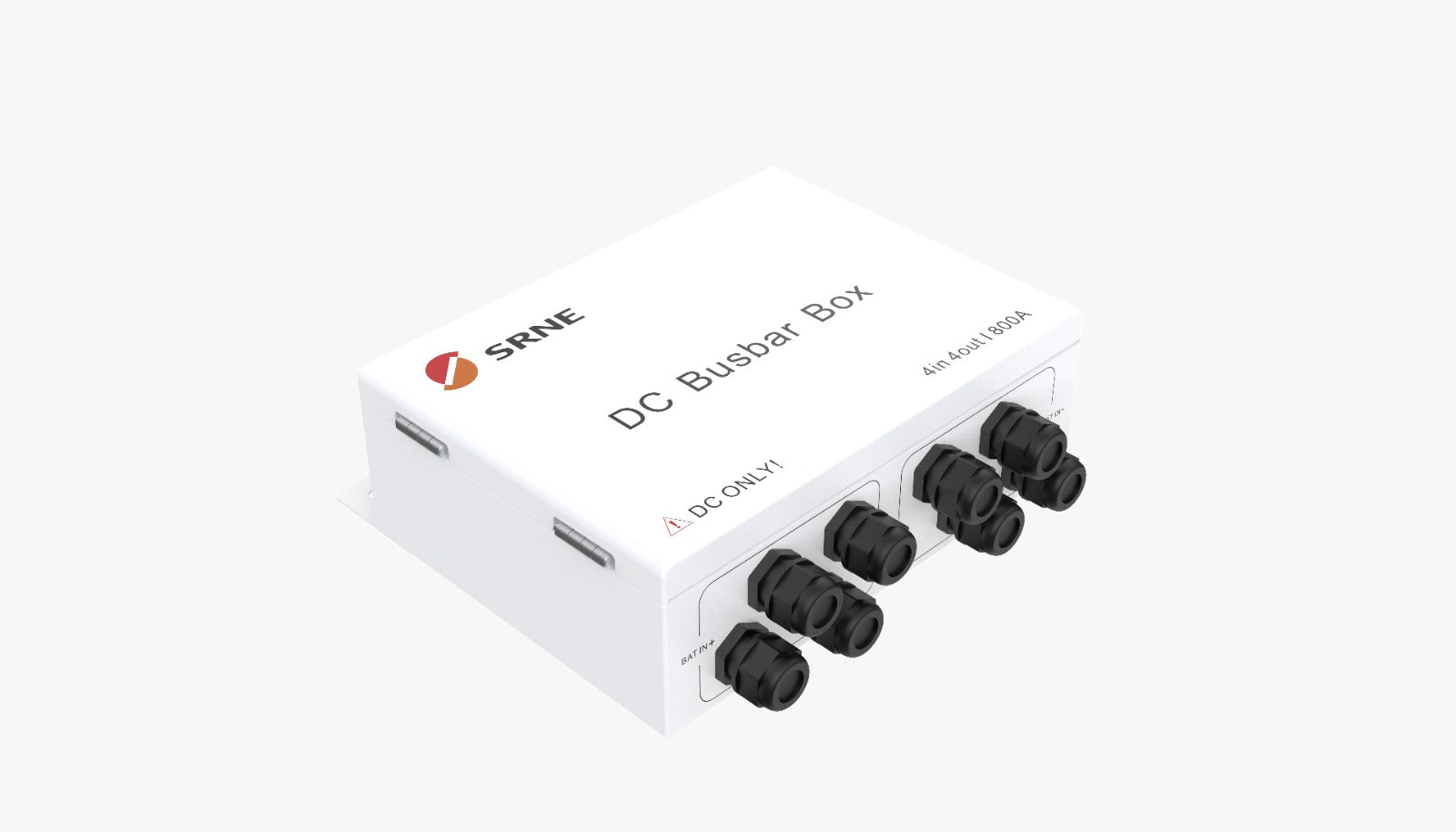

SRNE Busbar IP65, 800A, 8+8 Port

SRNE DCB-1 800A Busbar Features:

Parallel batteries to increase battery capacity
Convenient for capacity expansion
Extend the working hours of ESS
Parallel inverters to increase inverter power
Reduce power line resistance
Make the circuit currents consistent
Convenient wiring
Improve system stability

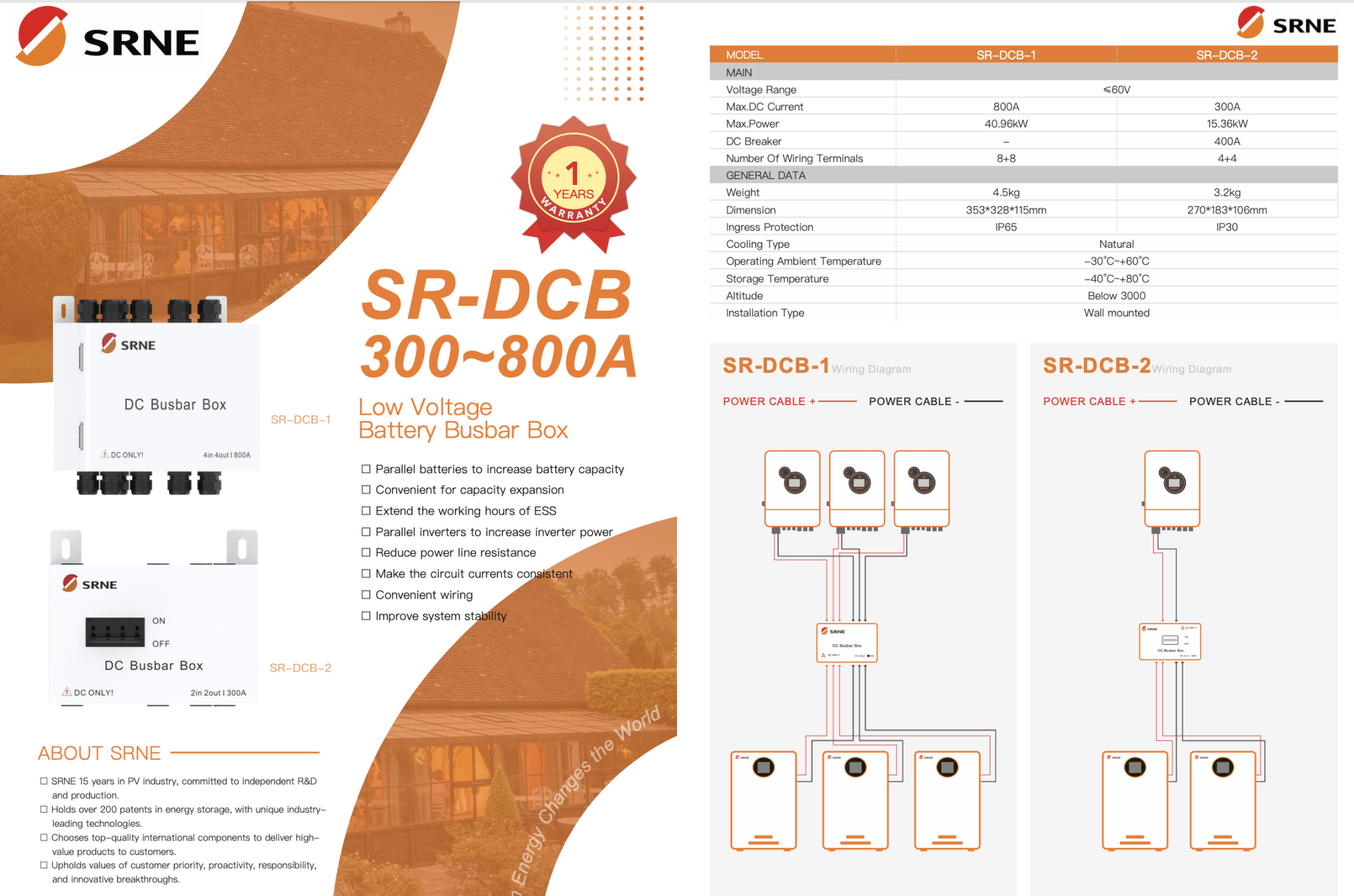

Specifications:

Voltage Range: 0-60VDC
Max DC Current: 800A
Max Power: 40.96kW
Installation: Wall mounted
Operating Altitude: Below 3000m

Dimensions: 353 x 328 x 115mm
Temperature: -30C~65C
Weight: 4.5kg
Cooling Method: Natural Cooling
Protection Degree: IP65
Warranty: 3 Year
