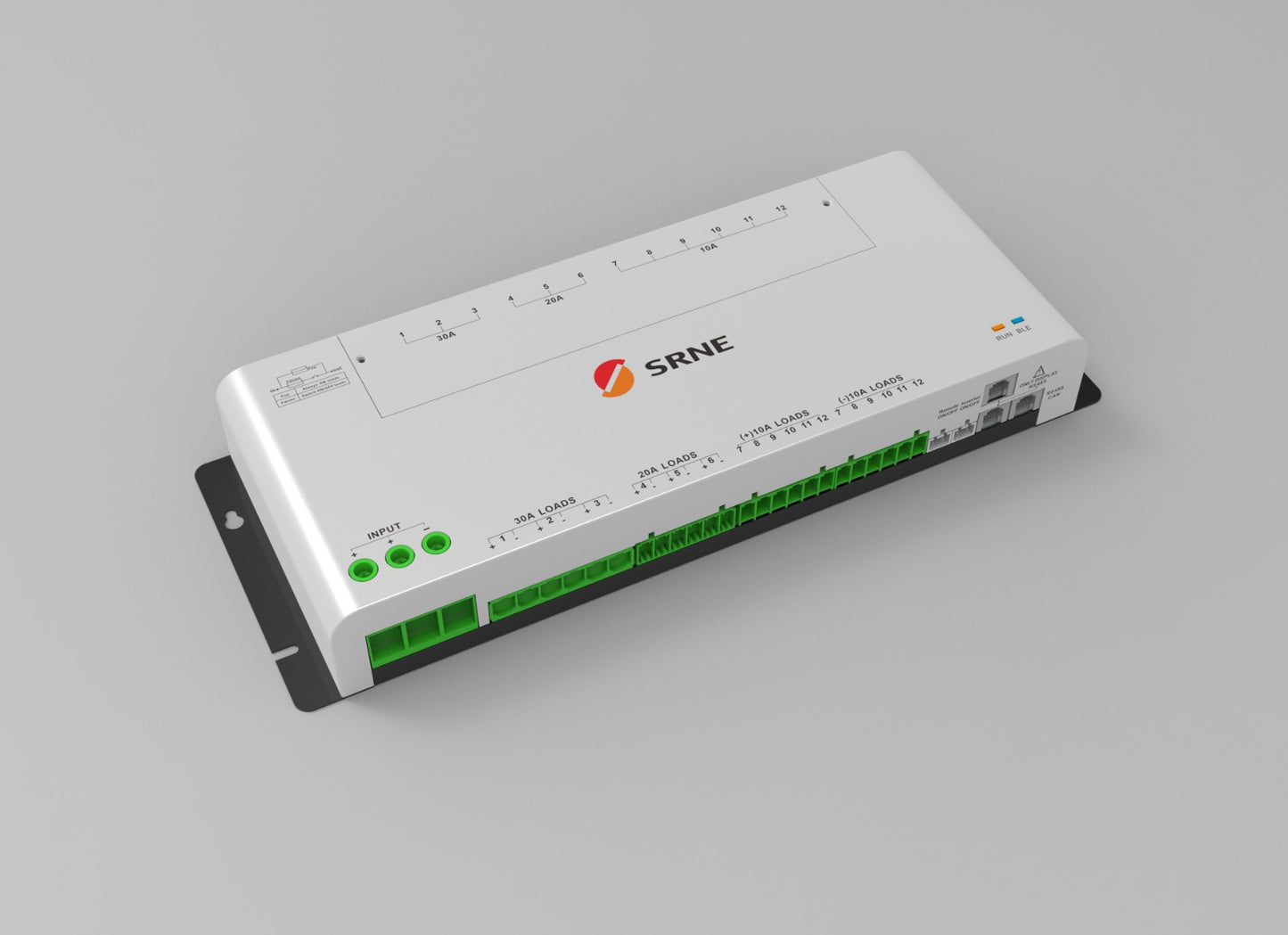

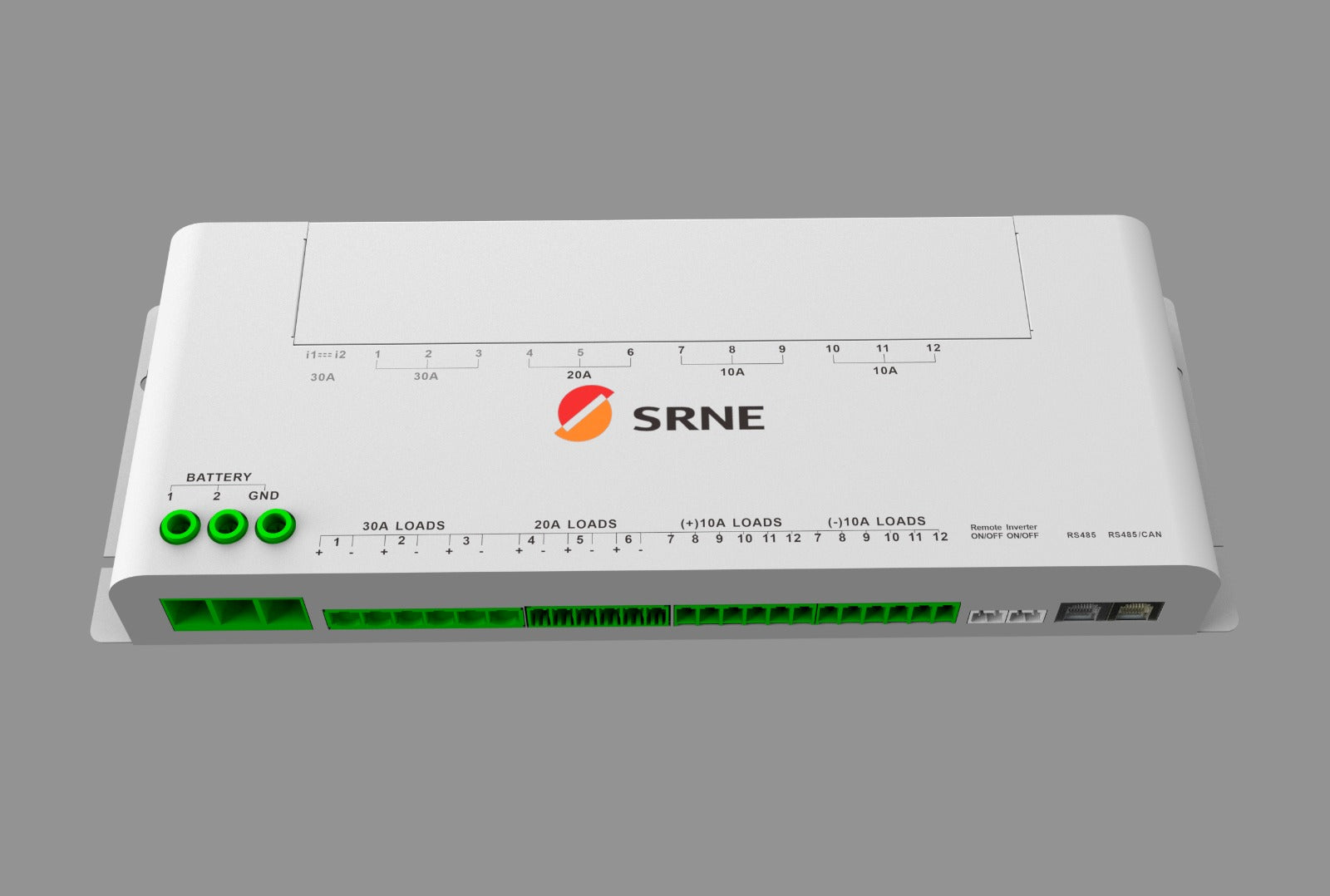

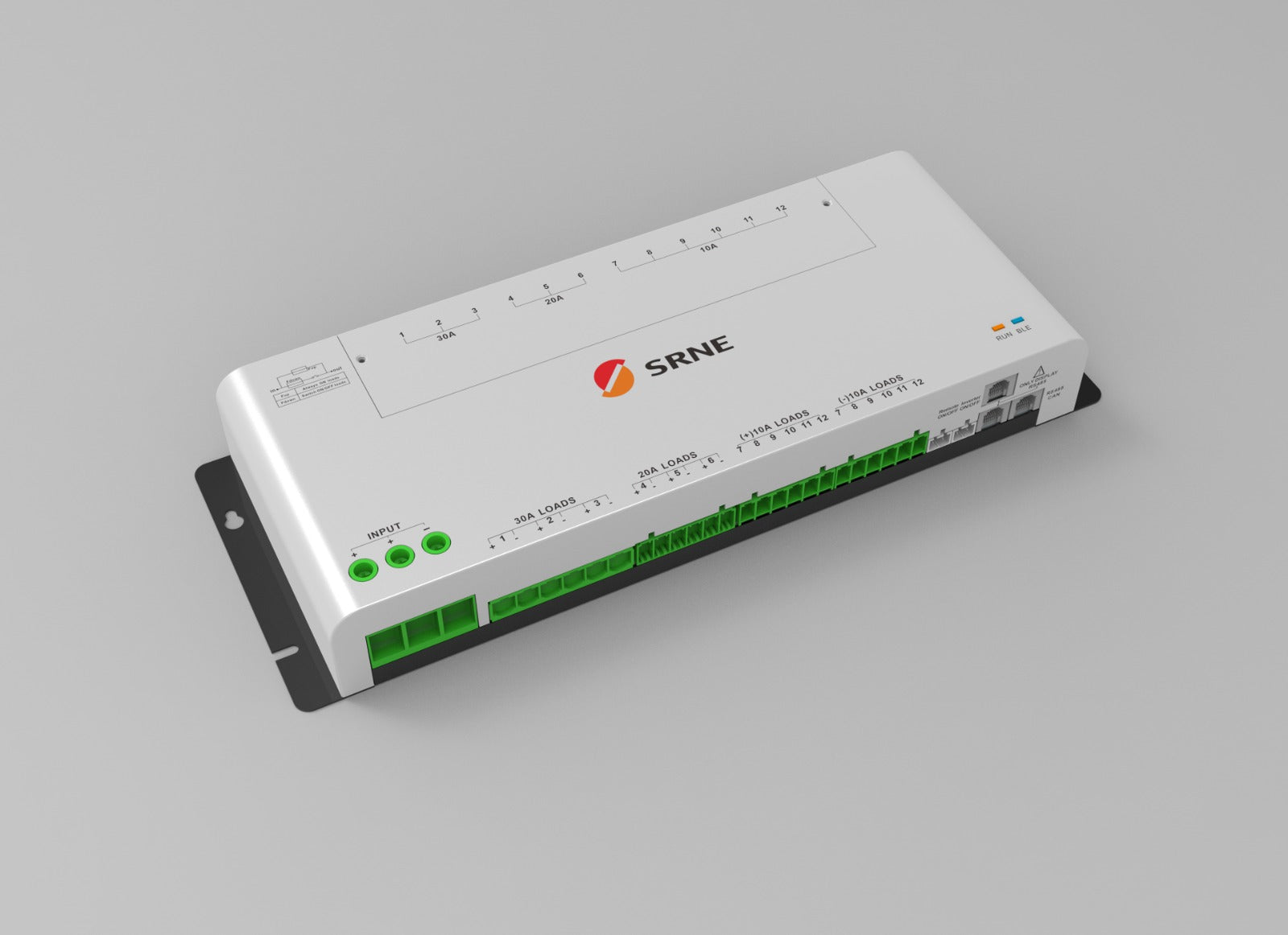

SRNE DB-12 RV Distribution Box

SRNE DB-12 RV Distribution Box Features:

Supports 12V Battery Systems up to 120A
Bluetooth for real-time and remote data monitoring, parameter settings and load switching via the SRNE App
Supports RS485 and CAN Communication
Compatible with SRNE RMA7 LCD touch screen display
Compatible with any battery type
Battery over voltage and over-discharge voltage can be set
Supports 12V DC Load Outputs, Each output is equipped with a plug in fuse

SRNE DB-12 RV Distribution Box Specifications:

System Voltage: 12V
Input Voltage Range:9-16V
Communication Function: Bluetooth, RS485, CAN(RV-C)
Maximum input current: 120A
Cooling Method: Natural Cooling

Dimensions: 264mm x 120mm x 49mm
Temperature: -35C~65C
Weight: 1.1kg
Protection Degree: IP20
Warranty: 3 Years
