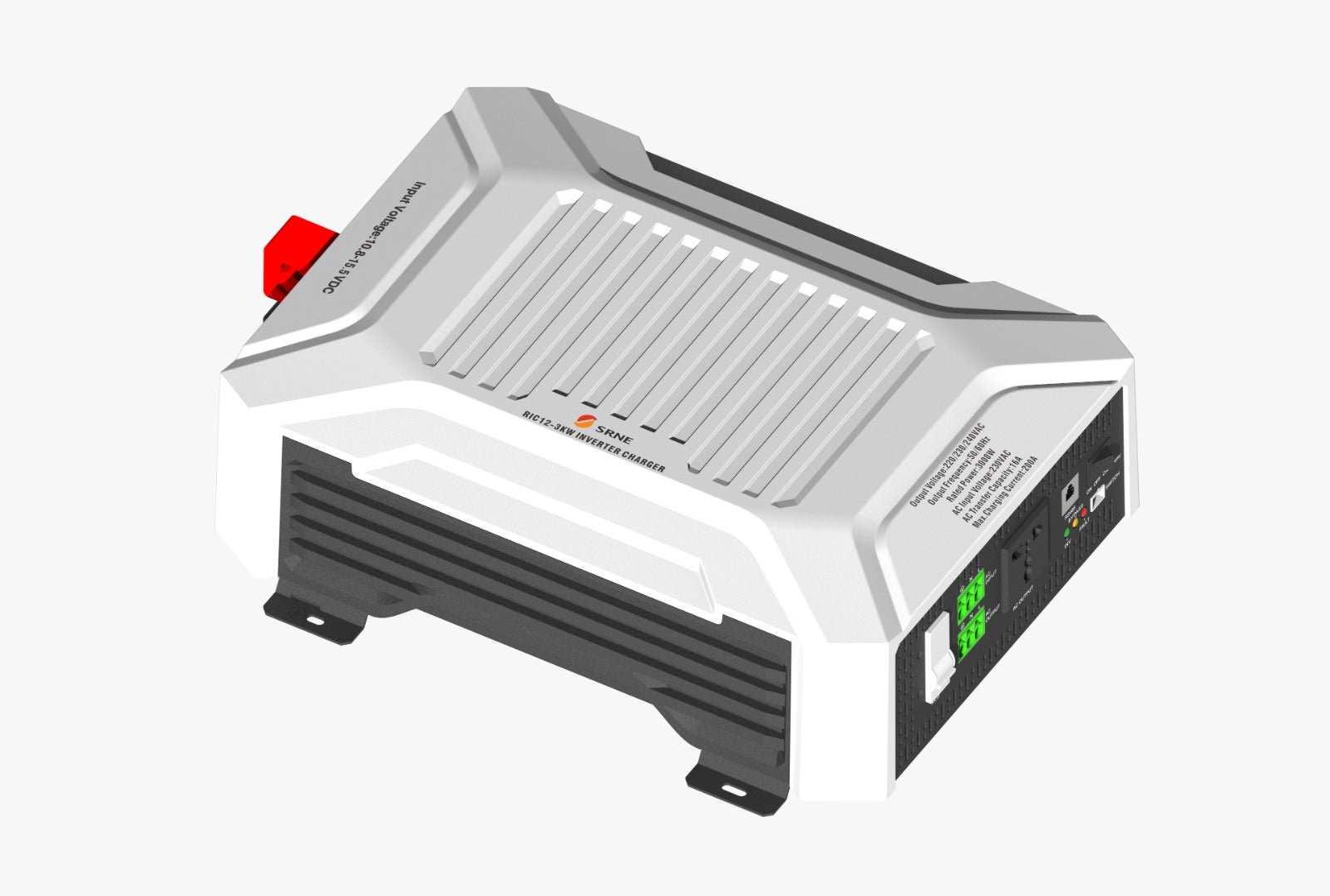

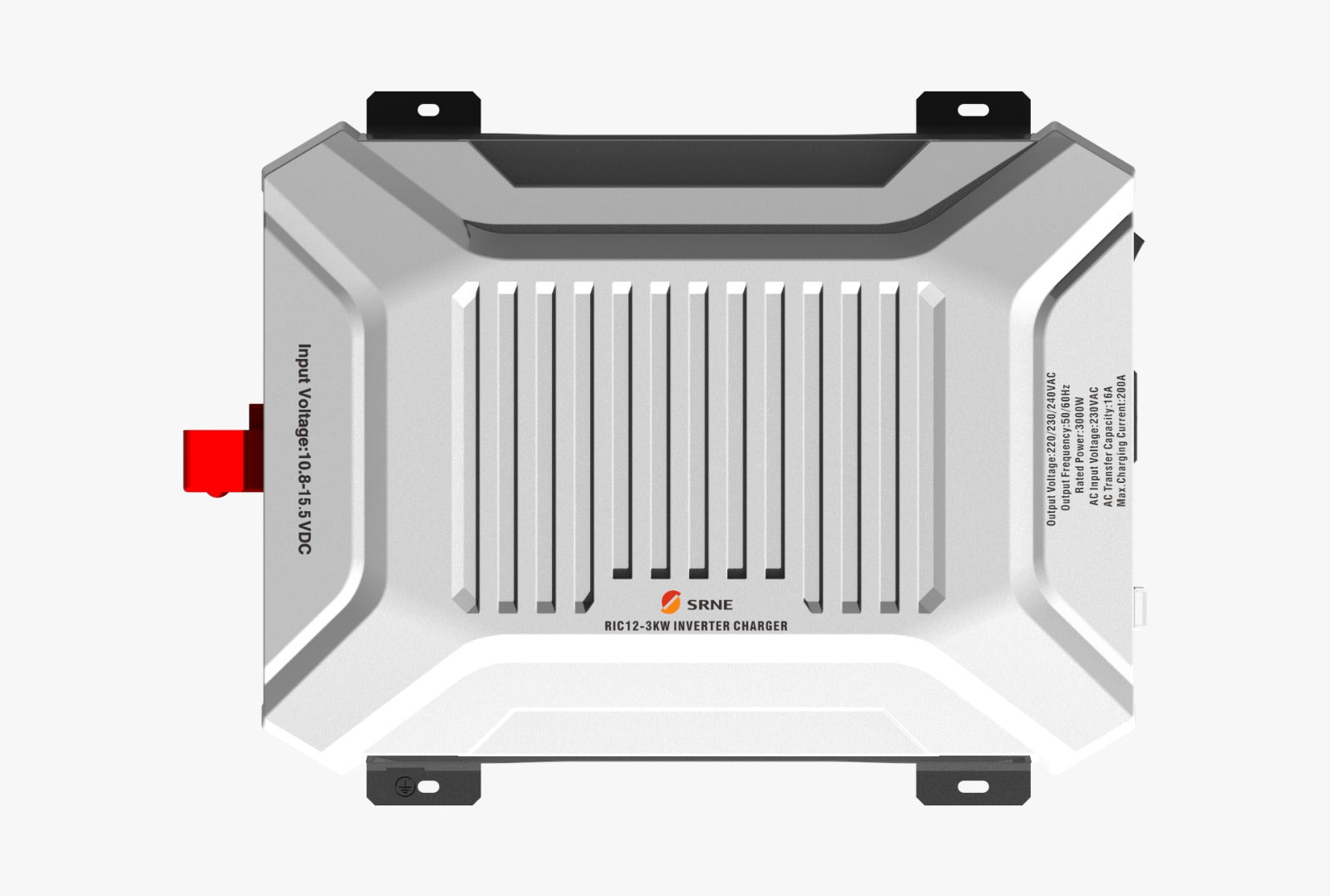

SRNE Inverter/Charger High Frequency 12V 3kW

SRNE 12V 3kW High Frequency Inverter/Charger Features:

• Advance SPWM modulation technology with pure sine wave output and higher power quality
• High power density
• High conversion efficiency, low losses and low harmonic distortion
• Built-in Bluetooth for monitoring with the SRNE App
• Utility bypass output, inverter output automatic uninterrupted switching power supply
• Protection: over-voltage, over-discharge protection, output overload, short-circuit and over-temperature
• Equipped with AC output RCD earth leakage protection switch

Inverter Specifications:

• Battery Voltage: 12VDC
• Input Voltage Range: 10.8-15.5VDC
• Rated Power: 3000W - Unity Power Factor
• Surge Power: 6000W for 5 seconds
• Waveform: Pure sine wave 50Hz
• Output Wave : Pure Sine Wave
• AC Voltage Regulation: 230VAC
• Rated Output Efficiency: 87%
• Inverter Efficiency(Peak): 93.5% (20% Load)
• No Load Power Consumption: 20W
• UPS Switching time: <10ms
• THD: <4% (Resistive Load)
• Cooling: Fan Assist

Charger Mode:

• AC Input Voltage: Single Phase 180VAC-265VAC
• AC Input Frequency: 45-65Hz
• AC Input Current: 16A
• Max Charging Current to battery: 200A

Dimensions (mm): 400*300*116

• Weight: 8.7 kgs
• Protection Degree: IP20
• Noise: <60db
• Humidity: 5% to 95% RH(Non-condensing)
• Operating Temperature: -20°C-+60°C
• Warranty: 3 years
