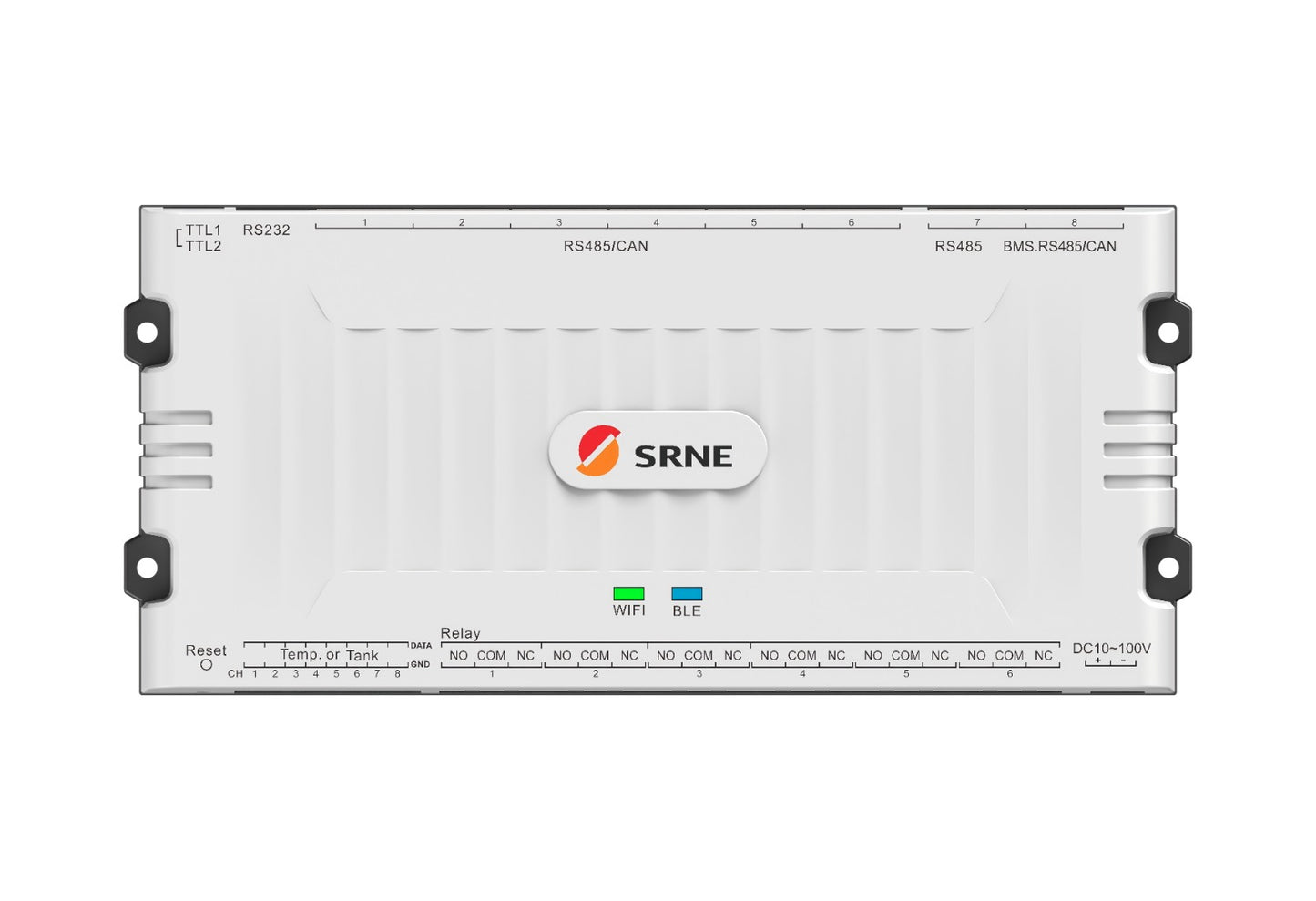

SRNE Master Control Unit

SRNE Master control Unit Features:
Wifi and Bluetooth for simultaneous real-time data monitoring via the SRNE App
System Wide Monitoring of Inverter, MPPT Charger, Water Tank, Temperature etc
Supports TTL, RS232, RS485 and CAN Communication
Multiple programmable relay outputs

Master Control Unit Specifications:

Input Voltage Range: 10-100VDC
Static Power Consumption: 1.2W
BLE: 2.4GHz
Wifi: 802.11a/b/g/n 1*1; 2.4GHz/5GHz
TTL: 2 x TTL Ports - Baud Rate 9600bps(default)
RS485: 7 x RS485 Ports (Isolated Communication) / Baud Rate: 9600bps (Default)
RS485/CAN: 6 x RS485/CAN Ports ( Non-isolated Communication) RS485 Baud Rate: 9600bps(Default)/ CAN: Support RV-C Protocol
BMS/RS485/CAN: 1 Port (Isolated Communication) BMS RS485 Baud Rate: 9600bps (Default) / CAN: Support RV-C Protocol

Dimensions: 183 x 84 x 28.5mm
Temperature: -25C~65C
Weight: 265g
Cooling Method: Natural Cooling
Protection Degree: IP20
Warranty: 1 Year
