SRNE MPPT Solar Charge Controller DC-DC 100A 12V MD-Series

SRNE MPPT Solar Charge Controller DC-DC 100A 12V MD-Series Features:

Can charge house and starter batteries
Connectable to PV and alternator
Compact design to save installation space and wiring
Supports multi-mode communication

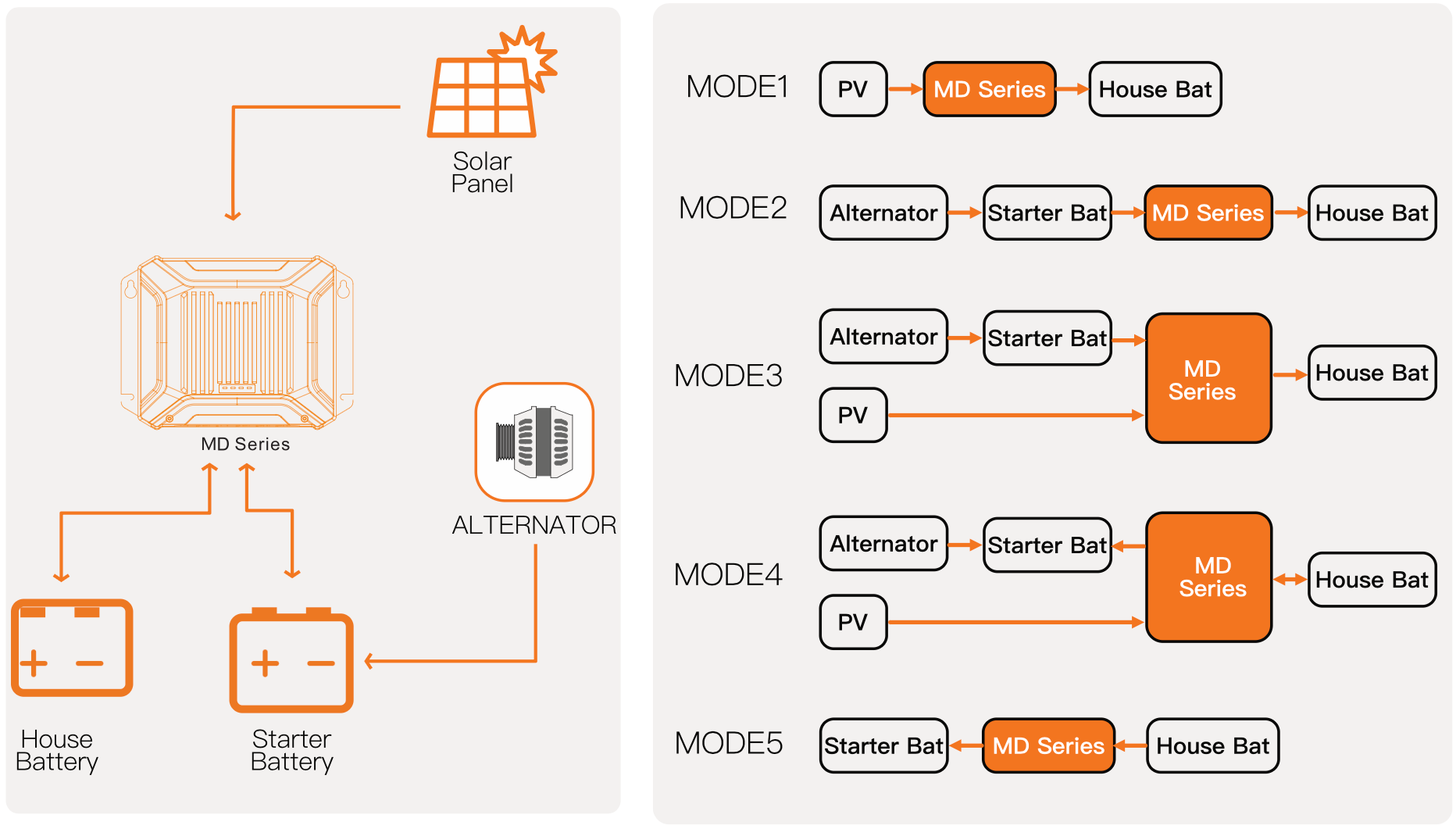

Five Charging Methods
Neutral cooling with heatsink for silent operation
High efficiency Buck Boost charging
Built-in Bluetooth

Specifications:

System Voltage: 12V
Rated Charging Current: 100 Amps
Max Solar Open Circuit Voltage (V.O.C) : 100VDC
Max Power Point Voltage Range (V.M.P) : 17-72VDC
Max Solar Input Current: 80 Amps
Solar Input power: 1400 Watts
Operating Temperature: -35 - +65 Degrees celsius
Protection Degree: IP32
Operating Altitude: <3000m
Communication Method: Bluetooth, RS485, CAN
Size: 314mm x 227mm x 121mm
Weight: 7.8kgs
Warranty: 5 Years
