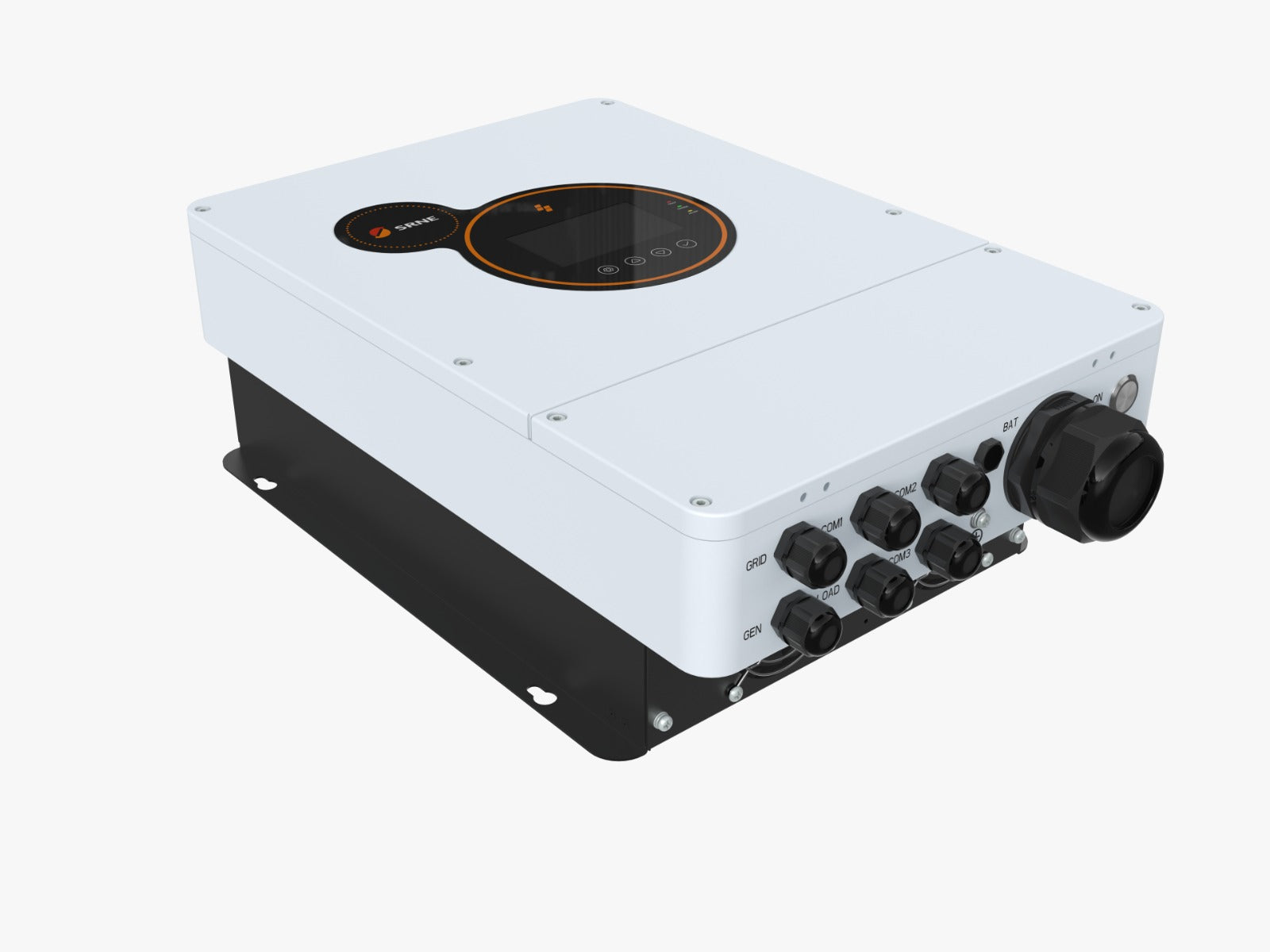

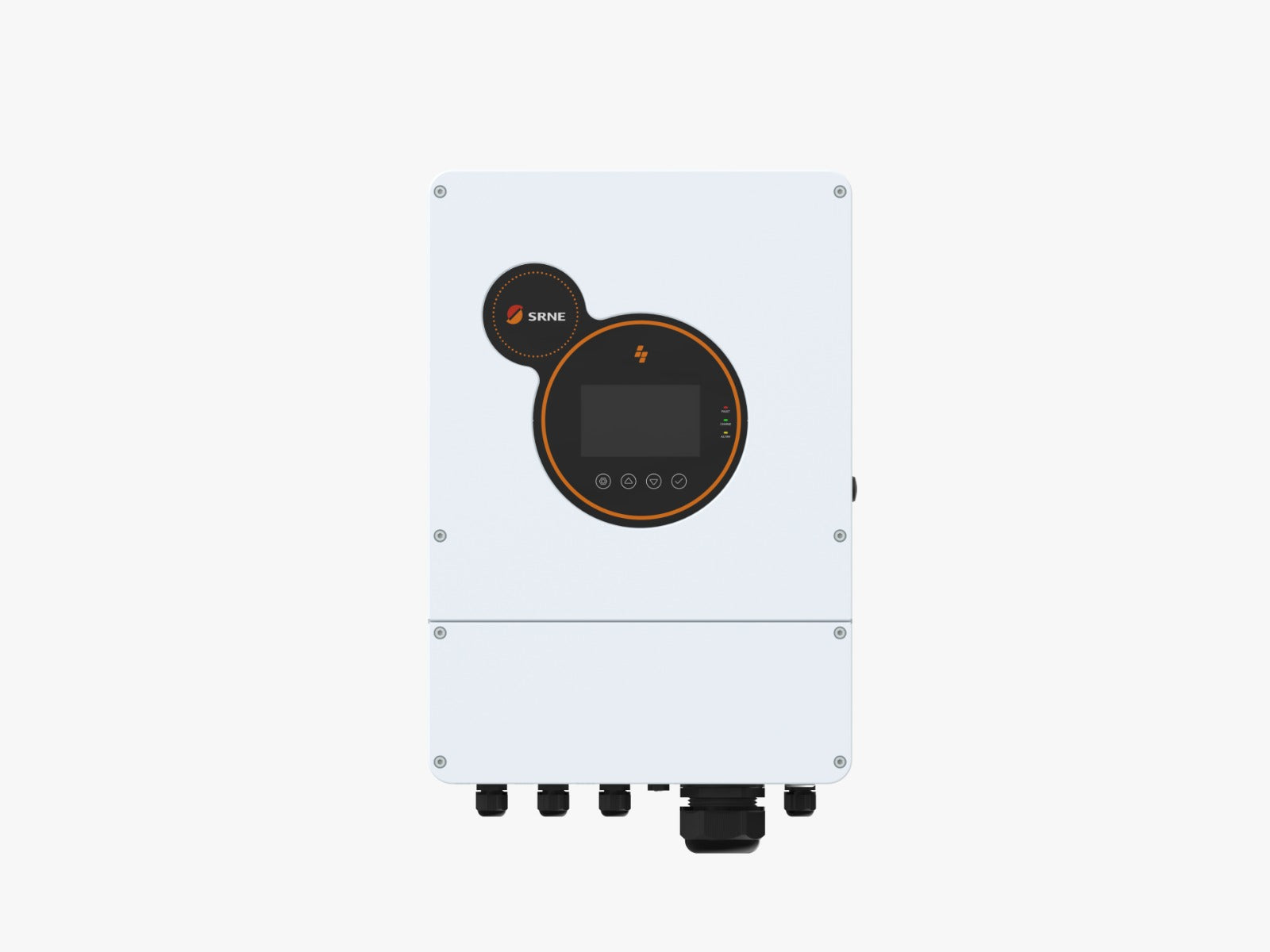

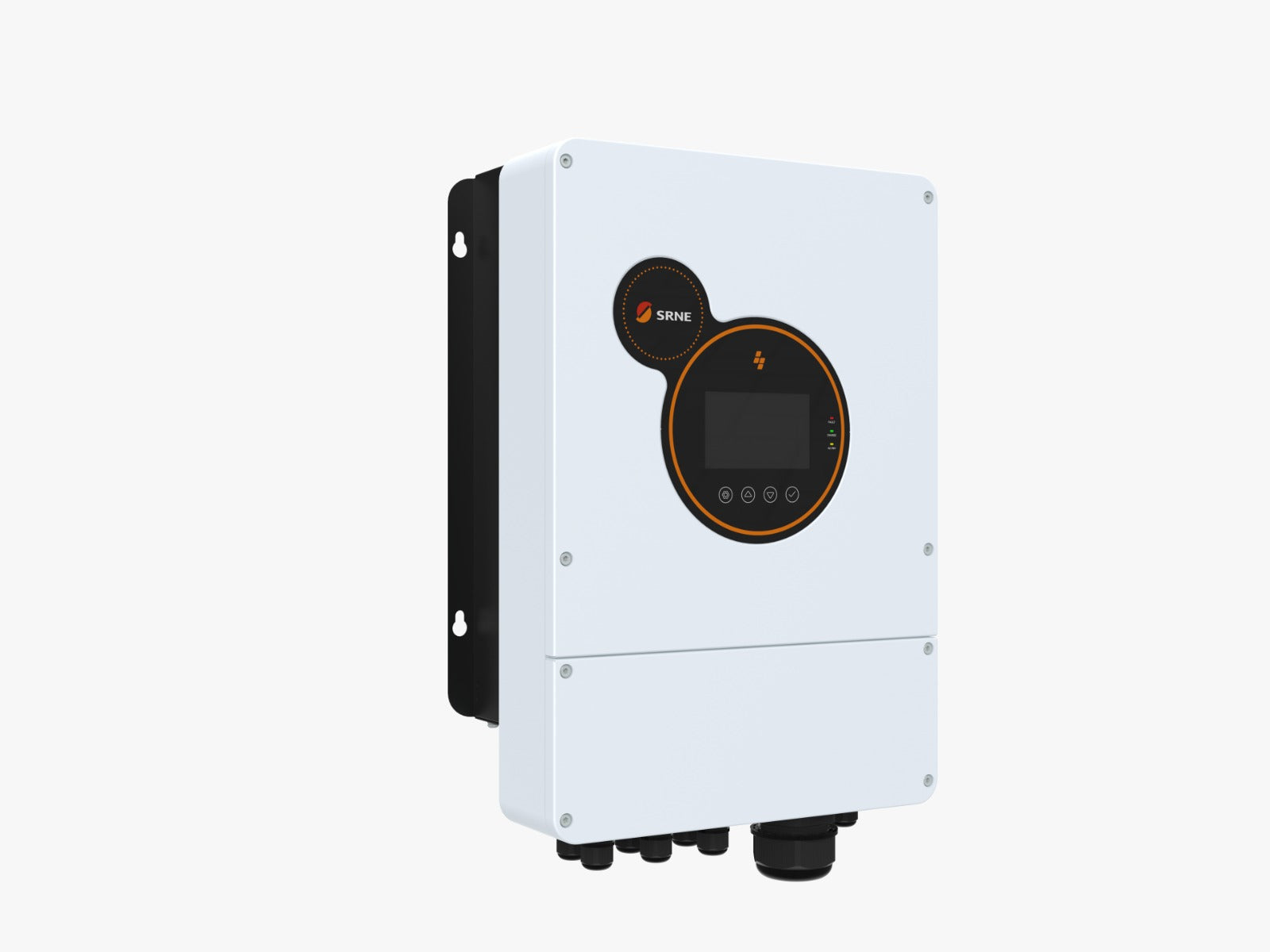

SRNE On/Off Grid Hybrid Solar Inverter/charger 48V 6kW

SRNE On/Off Grid Hybrid Solar Inverter/charger 48V 6kW Features:

• Compatible with 48V storage batteries
• 2 efficient, independent MPPT ports
• Separate generator port
• Support AC-coupling
• IP65 waterproof protection degree
• Wifi included
• AS4777.2 certified

Inverter Specifications:

• Battery Voltage: 48VDC
• Battery Type: Lithium, Lead-Acid
• Input Voltage Range: 40～60Vdc
• Rated Power: 6000W/6000VA - Unity Power Factor
• Waveform: Pure sine wave 50Hz
• Rated Output Voltage: 230VAC
• Load Motor Capacity: 4HP
• UPS Switching time: <10ms
• THD: <3% (Resistive Load)
• Cooling: Heat Sink with Intelligent Fan Cooling

PV Input:

• No. of MPPT Trackers: 2
• Max. PV Input Power: 4,500W/4,500W (9000W Total)
• Max. PV Input Current: 16A/16A
• Input Start-up Voltage: 90V
• Max. Short Circuit Current: 27A/27A
• Max. Open Circuit Voltage: 500V
• Min. Operating Voltage Range: 120V～150V
• MPPT Operating Voltage Range: 120V～450V
• MPPT Tracking Efficiency: 99.9%
• Max. Conversion Efficiency: 97.5%

Protection:

• PV Reverse Protection
• Residual-Current Monitoring
• Output Short-Circuit Protection
• Over-Voltage Category: AC type II/DC type III
• Surge Category: AC type II/DC type II
• Anti-Islanding Protection
• Insulation Resistance Monitoring
• Output Over-Current Protection

Grid/Generator Input:

• Input Voltage: 230VAC
• Input Frequency: 50Hz
• Bypass Overload Current: 40A
• Dimensions (mm): 556*345*182
• Weight: 20 kgs
• Noise :<60dB
• Humidity:0～100%
• Operating Temperature: -25～60°C, >45°C Derate
• Warranty: 5 years
