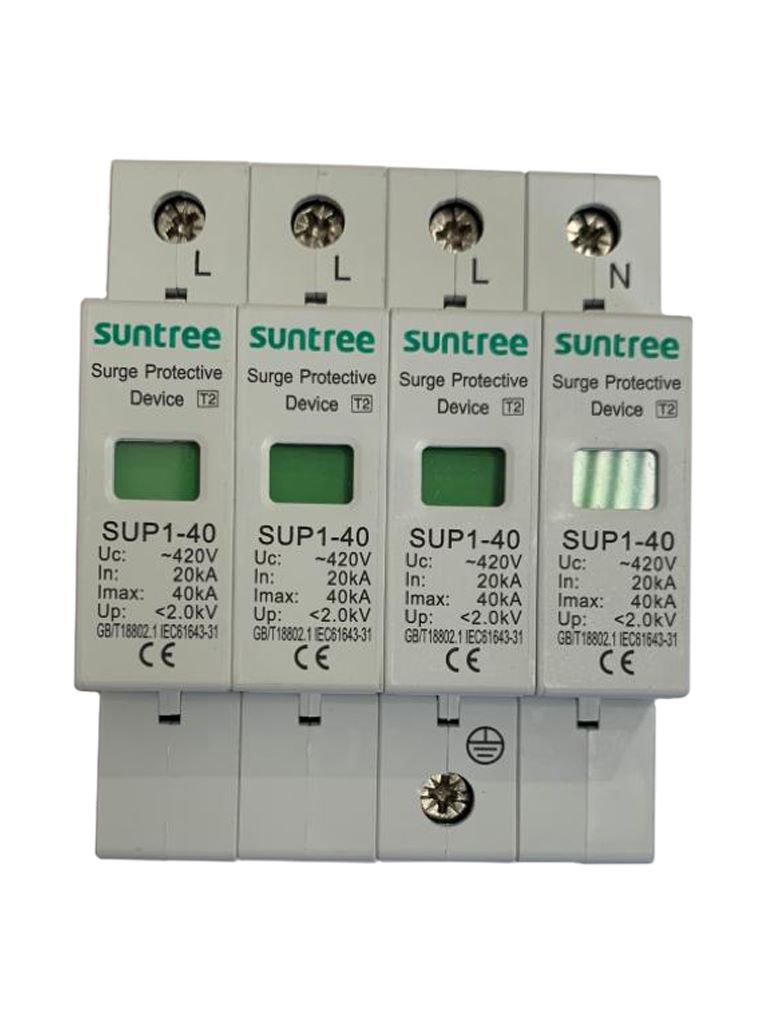

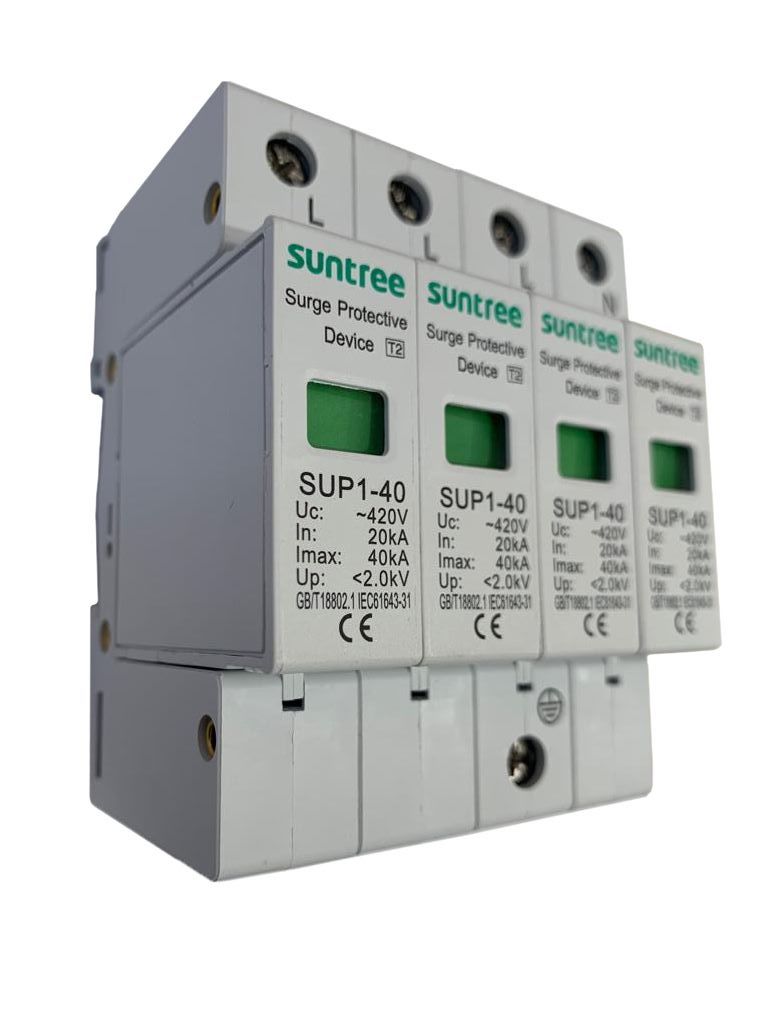

This AC Surge Protection Device also known as a Surge Arrester provides protection from high voltage surges by providing a direct alternative path to earth i.e surges from lightning strikes.
DIN rail mountable for easy installation in an enclosure.
Specifications:
Continuous Operating Voltage: 420VAC
Peak Voltage: <2kV
Rated Current: 20kA
Max Current: 40kA
IP Rating: IP20
Maximum Cable Cross Section: 25mm2
Working Temperature: -5 to +50 Degrees Celsius
Test Standards:EN/IEC 61643-31
